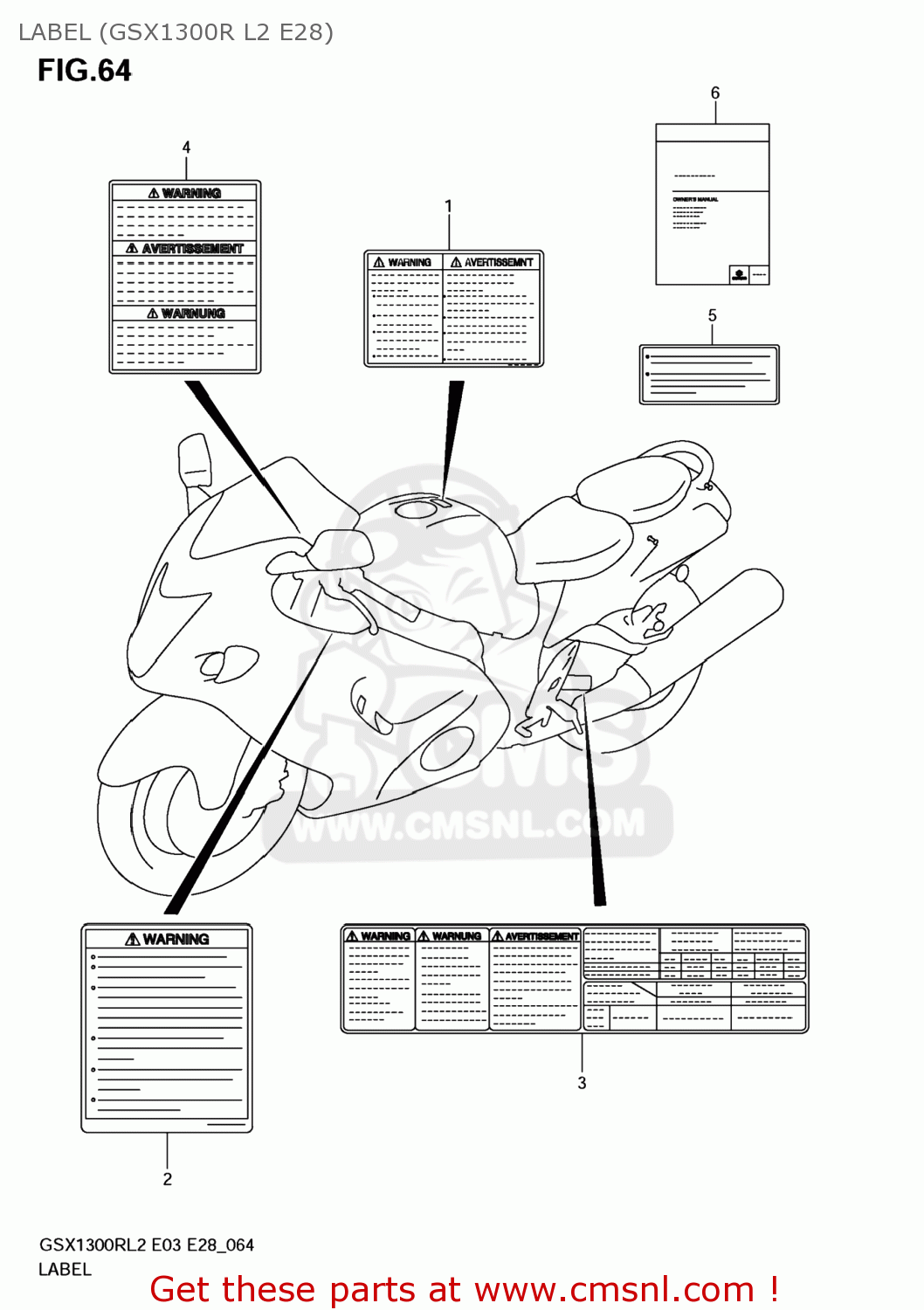

LABEL (GSX1300R L2 E28)

GSX1300R HAYABUSA 2012 (L2) USA (E03)

Label (gsx1300r l2 e28) diagram GSX1300R HAYABUSA 2012 (L2) USA (E03)

LABEL (GSX1300R L2 E28) GSX1300R HAYABUSA 2012 (L2) USA (E03)

LABEL (GSX1300R L2 E28) GSX1300R HAYABUSA 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6831929F10
ref: 1

LABEL,GENERAL WARNING

€ 0.00

2-1

6892229F00
ref: 2-1

LABEL,SCREEN

€ 7.00

2-2

6892229F30
ref: 2-2

LABEL,SCREEN

€ 7.00

3

6833224F50
ref: 3

LABEL,TIRE INFORMATION

€ 11.50

4

6861324F00
ref: 4

LABEL,WARNING STEERING

€ 10.50

5

1880340F10
ref: 5

LABEL,FUEL INFORMATION

€ 3.00

6-1

9901115H5401A
ref: 6-1

MANUAL,OWNER'S

€ 20.00

6-2

9901115H5401F
ref: 6-2

MANUAL,OWNER'S

€ 20.00
