CLUTCH HOSE
GSX1300R HAYABUSA 2012 (L2) USA (E03)

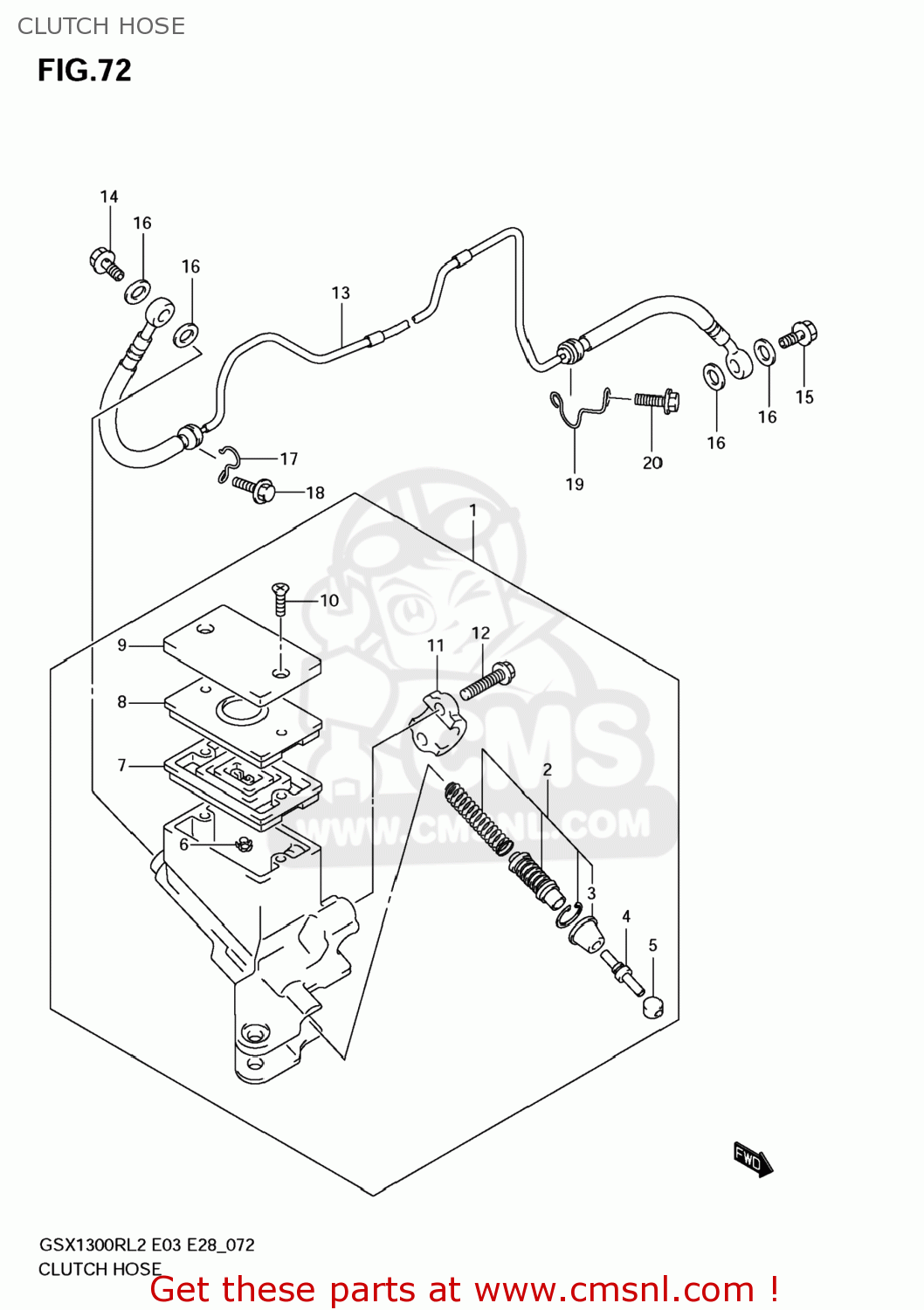

Clutch hose diagram GSX1300R HAYABUSA 2012 (L2) USA (E03)
CLUTCH HOSE GSX1300R HAYABUSA 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5980024F10
ref: 1
CYLINDER ASSY,CLUTCH MASTER
€ 322.00
2
5980024810
ref: 2
PISTON & CUP SET
€ 29.50
3
5986623H00
ref: 3
BOOT
€ 5.50
4
5987123H00
ref: 4
ROD,PUSH
€ 7.50
5
5989208A00
ref: 5
BUSH
€ 5.50
6
5966448B00
ref: 6
PROTECTOR
€ 8.00
7
5966749460
ref: 7
5966749460
8
5966841C00
ref: 8
PLATE,DIAPHRAGM
€ 8.00
9
5966910G00
ref: 9
CAP
€ 19.00
10
6968949300
ref: 10
SCREW
€ 1.50
11
5967136500
ref: 11
HOLDER
€ 10.00
12
5967502FA0
ref: 12
BOLT(6X22)
€ 3.00
13
5991024F10
ref: 13
HOSE,CLUTCH
€ 182.00
14
0936010062
ref: 14
BOLT UNION
€ 5.00
15
0936010062
ref: 15
BOLT UNION
€ 5.00
16
0916110009
ref: 16
WASHER(10X15X1.5)
€ 2.00
17
5991524F00
ref: 17
CLAMP,CLUTCH HOSE NO.1
€ 6.00
18
015500612A
ref: 18
BOLT
€ 2.50
19
5992124F00
ref: 19
CLAMP,CLUTCH HOSE NO.2
€ 8.00
20
015500616A
ref: 20
BOLT
€ 2.50
