COWLING BODY
GSX1300R HAYABUSA 2012 (L2) USA (E03)

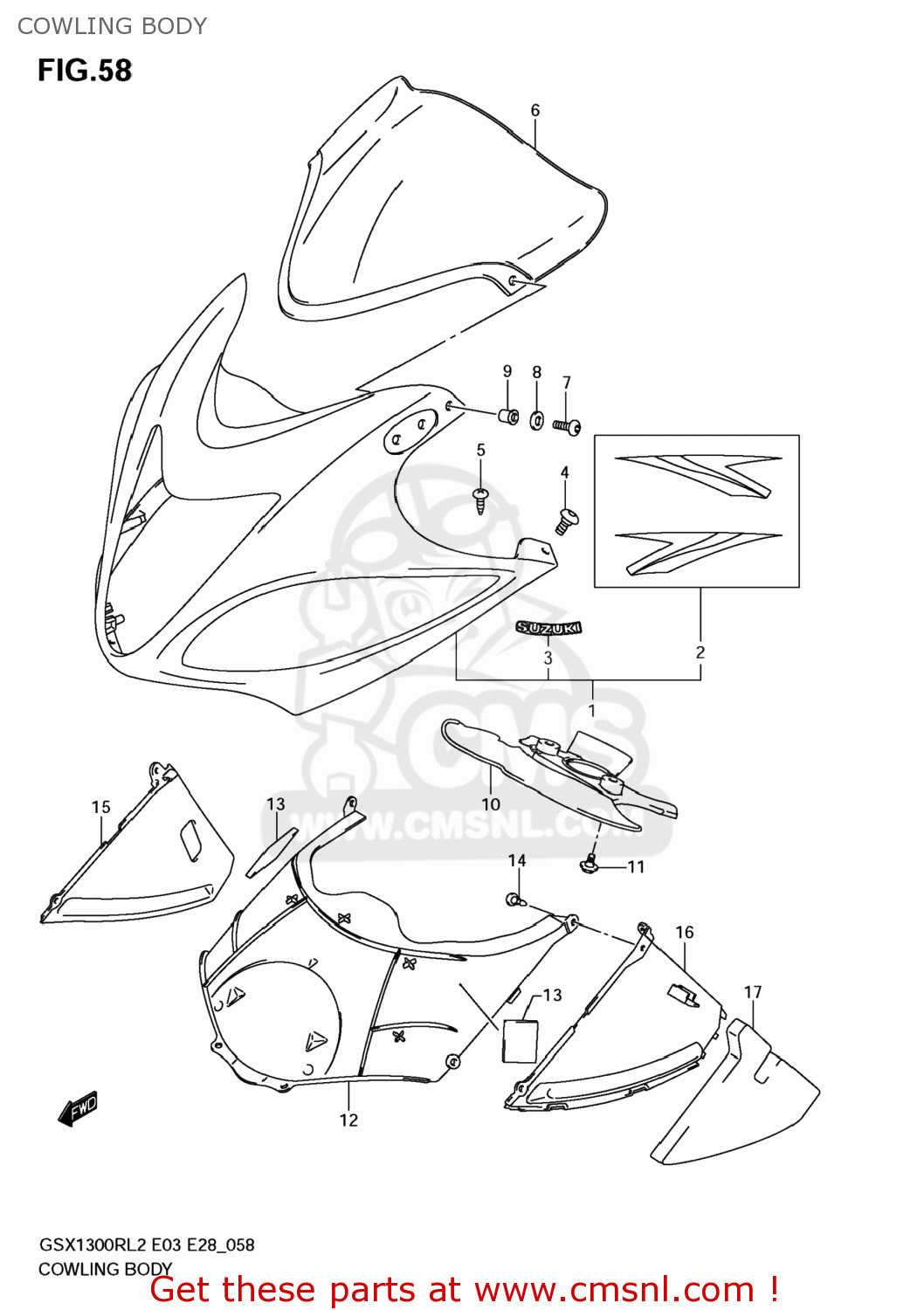

Cowling body diagram GSX1300R HAYABUSA 2012 (L2) USA (E03)
COWLING BODY GSX1300R HAYABUSA 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9440115H30YVB
ref: 1-1
COWLING ASSY,BODY
€ 795.00
1-2
9440115H30YHL
ref: 1-2
COWLING ASSY,BODY
€ 1,561.00
1-3
9440115H30YWW
ref: 1-3
COWLING ASSY,BODY
€ 1,480.50
2-1
6827015H30AAK
ref: 2-1
TAPE SET,BODY COWL
€ 63.00
2-2
6827015H30AAJ
ref: 2-2
TAPE SET,BODY COWL
€ 63.00
2-3
6827015H30AAL
ref: 2-3
TAPE SET,BODY COWL
€ 63.00
3-1
6828124F1017U
ref: 3-1
EMBLEM,SUZUKI
€ 10.50
3-2
6828124F10019
ref: 3-2
EMBLEM,SUZUKI
€ 10.50
4
0913905077
ref: 4
SCREW(5X16)
€ 3.50
5
0913205053
ref: 5
SCREW(5X16)
€ 2.50
6
9461115H00
ref: 6
WINDSCREEN
€ 138.50
7
0913905025
ref: 7
SCREW(5X14)
€ 2.00
8
083220105B
ref: 8
WASHER
€ 2.50
9
0915905019
ref: 9
NUT
€ 5.50
10
9445815H00
ref: 10
COVER,LWR BRACKET
€ 23.50
11
0911106107
ref: 11
BOLT(6X12)
€ 3.00
12
9441915H00
ref: 12
COVER,BODY COW
€ 14.50
13
3693060A10
ref: 13
COVER
€ 5.00
14
09409063145PK
ref: 14
CLIP(BLACK)
€ 3.50
15
9446115H00
ref: 15
COWLING,UNDER INNER,R
€ 26.00
16
9446215H00
ref: 16
COWLING,UNDER INNER,L
€ 26.00
17
9446315H00
ref: 17
CUSHION,INNER COWL,L
€ 23.50
