ELECTRICAL (GSX1300R L2 E28)

GSX1300R HAYABUSA 2012 (L2) USA (E03)

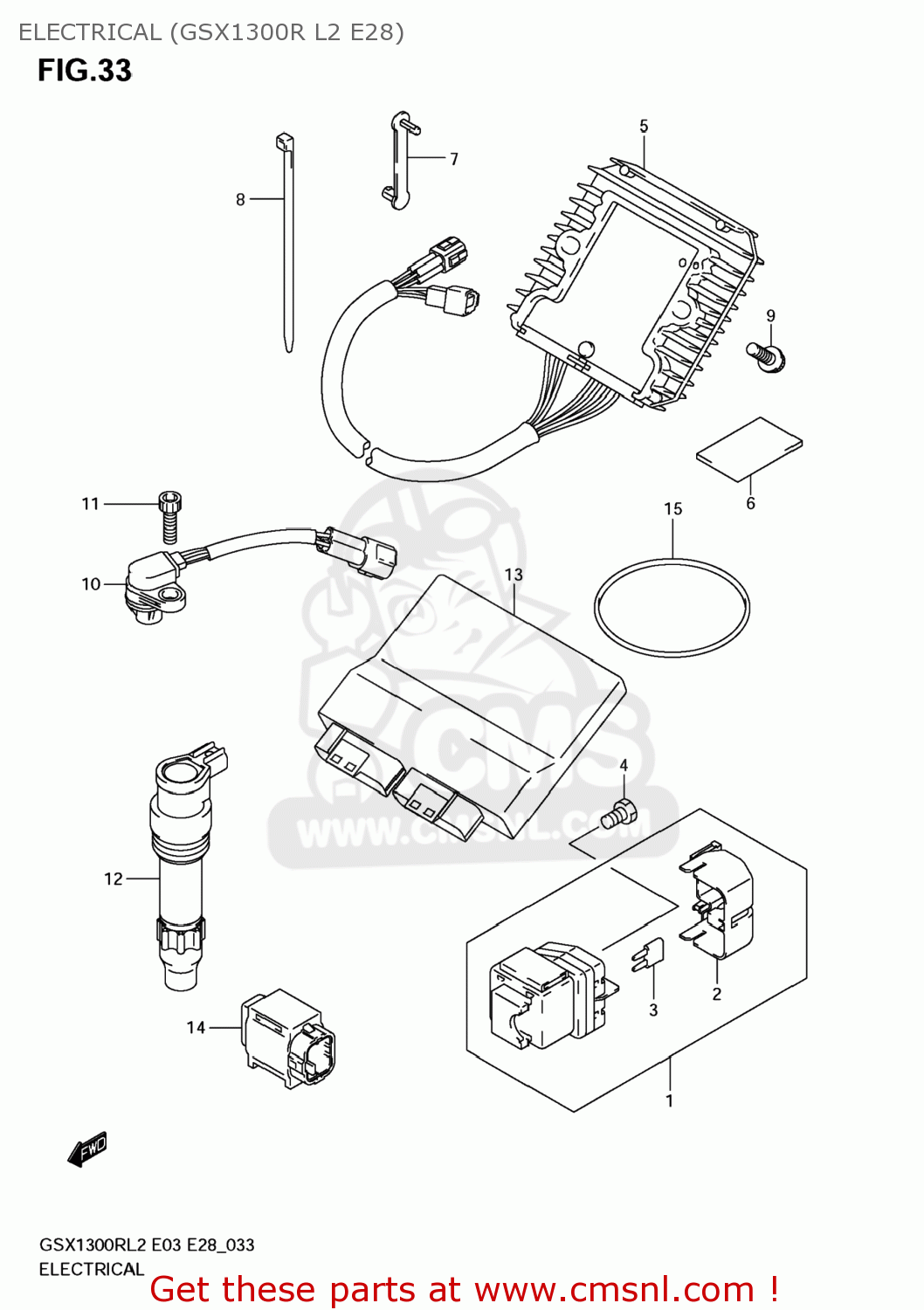

Electrical (gsx1300r l2 e28) diagram GSX1300R HAYABUSA 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

3180044G00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 77.50

3186138G00
ref: 2

COVER

€ 3.50

0948130501
ref: 3

FUSE(30A)

€ 0.50

0912806013
ref: 4

SCREW(6X8)

€ 1.50

3280015H10
ref: 5

RECTIFIER ASSY

€ 333.50

3365236000
ref: 6

CUSHION(30X50X3)

€ 5.00

3665148E00
ref: 7

CLAMP(L:63)

€ 2.50

0940714407
ref: 8

CLAMP(L:145)

€ 4.00

021620625A
ref: 9

SCREW

€ 1.50

3322001H00
ref: 10

SENSOR ASSY,CAM POSITION

€ 108.00

071300616A
ref: 11
07130-0616B

BOLT

€ 3.00

3341024F10
ref: 12

COIL ASSY,IGNITION

€ 139.00

3292015H10
ref: 13

CONTROL UNIT,FI

€ 933.50

3396006G10
ref: 14

SENSOR ASSY,FUEL CUT

€ 75.00

0928076005
ref: 15

O RING(D:3.5,ID:76)

€ 3.50
