SPEEDOMETER (GSX1300R L2 E03)

GSX1300R HAYABUSA 2012 (L2) USA (E03)

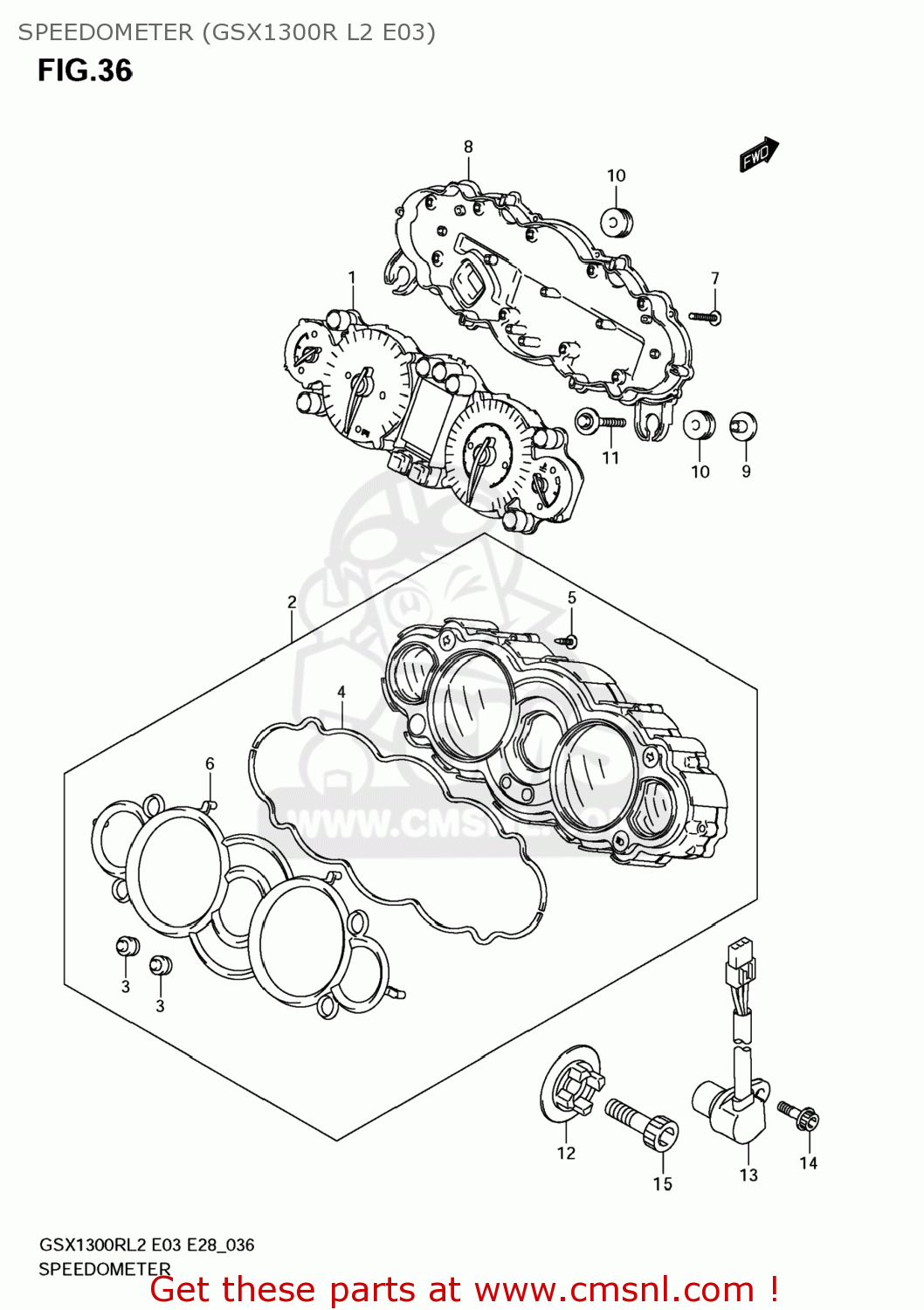

Speedometer (gsx1300r l2 e03) diagram GSX1300R HAYABUSA 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

3412015H10
ref: 1

COMBINATION METER

€ 1,395.00

3415015H00
ref: 2

UPR CASE

€ 427.00

3412439G00
ref: 3

RUBBER,SWITCH

€ 7.00

3415315H00
ref: 4

PACKING (NAS)

€ 32.00

3418331F10
ref: 5

SCREW(2.3X8)

€ 3.00

3419315H00
ref: 6

RING

€ 186.00

0913203008
ref: 7

SCREW(3X16)

€ 1.50

3411115H00
ref: 8

LOWER CASE

€ 185.00

3418724F00
ref: 9

WASHER

€ 4.50

3495513E00
ref: 10

CUSHION

€ 3.00

0911606186
ref: 11

BOLT(6X25)

€ 2.50

3498147H01
ref: 12

ROTOR,SPEED

€ 17.50

3499035F00
ref: 13

SENSOR,SPEED

€ 112.50

071200512B
ref: 14

BOLT

€ 2.00

071300825B
ref: 15

BOLT

€ 3.50
