FRONT BRAKE HOSE
GSX1300R HAYABUSA 2012 (L2) USA (E03)

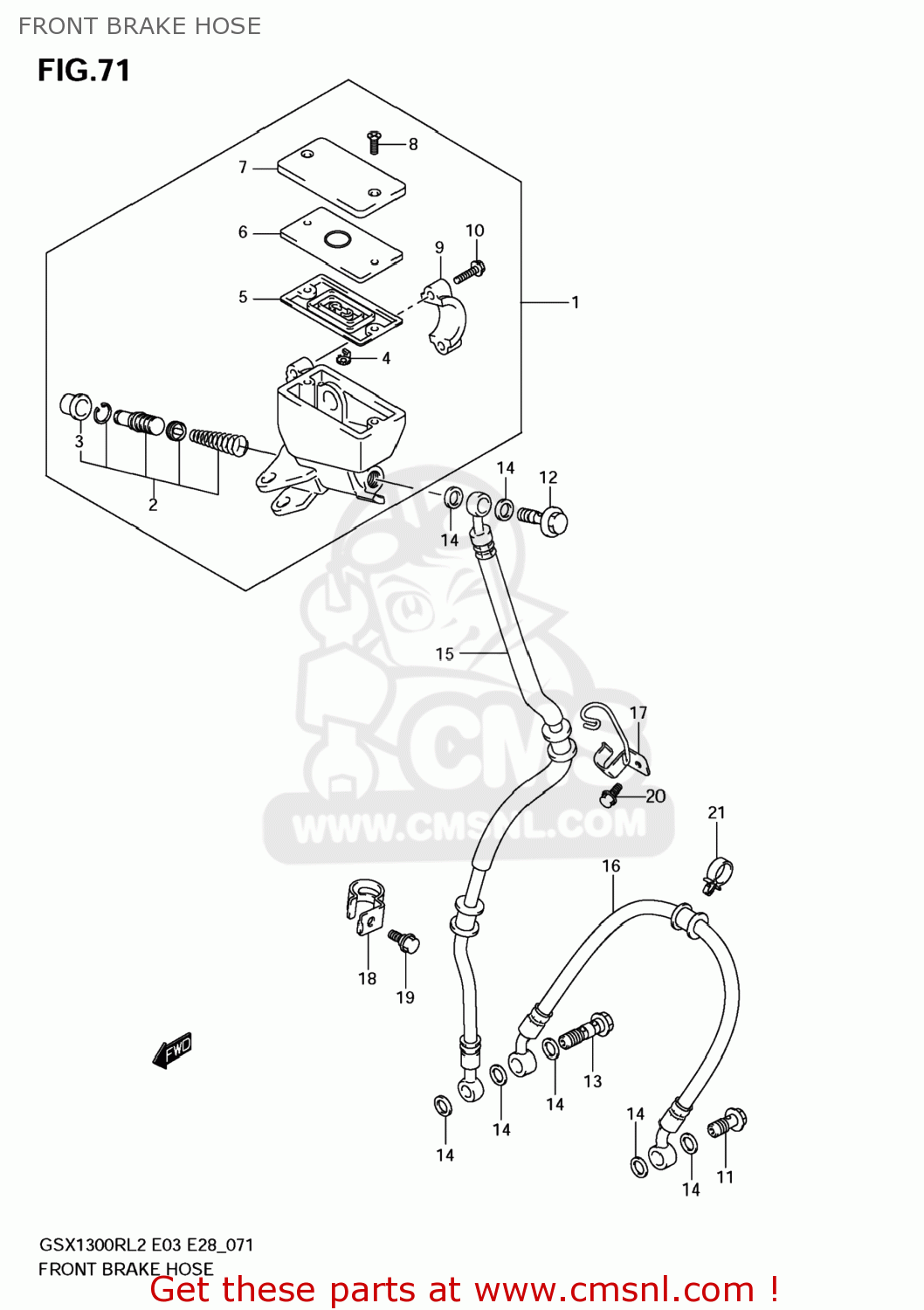

Front brake hose diagram GSX1300R HAYABUSA 2012 (L2) USA (E03)
FRONT BRAKE HOSE GSX1300R HAYABUSA 2012 (L2) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960024F10
ref: 1
CYLINDER ASSY,FR MASTER
€ 321.00
2
5960024810
ref: 2
PISTON & CUP SET
€ 34.50
3
5966644300
ref: 3
BOOT
€ 6.00
4
5966448B00
ref: 4
PROTECTOR
€ 8.00
5
5966749460
ref: 5
5966749460
6
5966841C00
ref: 6
PLATE,DIAPHRAGM
€ 8.00
7
5966910G00
ref: 7
CAP
€ 19.00
8
6968949300
ref: 8
SCREW
€ 1.50
9
5967136500
ref: 9
HOLDER
€ 10.00
10
5967502FA0
ref: 10
BOLT(6X22)
€ 3.00
11
0936010062
ref: 11
BOLT UNION
€ 5.00
12
0936010062
ref: 12
BOLT UNION
€ 5.00
13
0936010064
ref: 13
BOLT UNION
€ 5.00
14
0916110009
ref: 14
WASHER(10X15X1.5)
€ 2.00
15
5948015H00
ref: 15
HOSE,FR BRAKE NO.1
€ 87.50
16
5924015H00
ref: 16
HOSE,FR BRAKE NO.2
€ 160.50
17
5926041G00
ref: 17
CLAMP,FR BRAKE HOSE NO.1
€ 17.00
18
5927015H00
ref: 18
CLAMP,FR BRAKE HOSE NO.3
€ 10.50
19
0911106107
ref: 19
BOLT(6X12)
€ 3.00
20
015470612A
ref: 20
BOLT
€ 2.00
21
0940316412
ref: 21
CLAMP
€ 4.00
