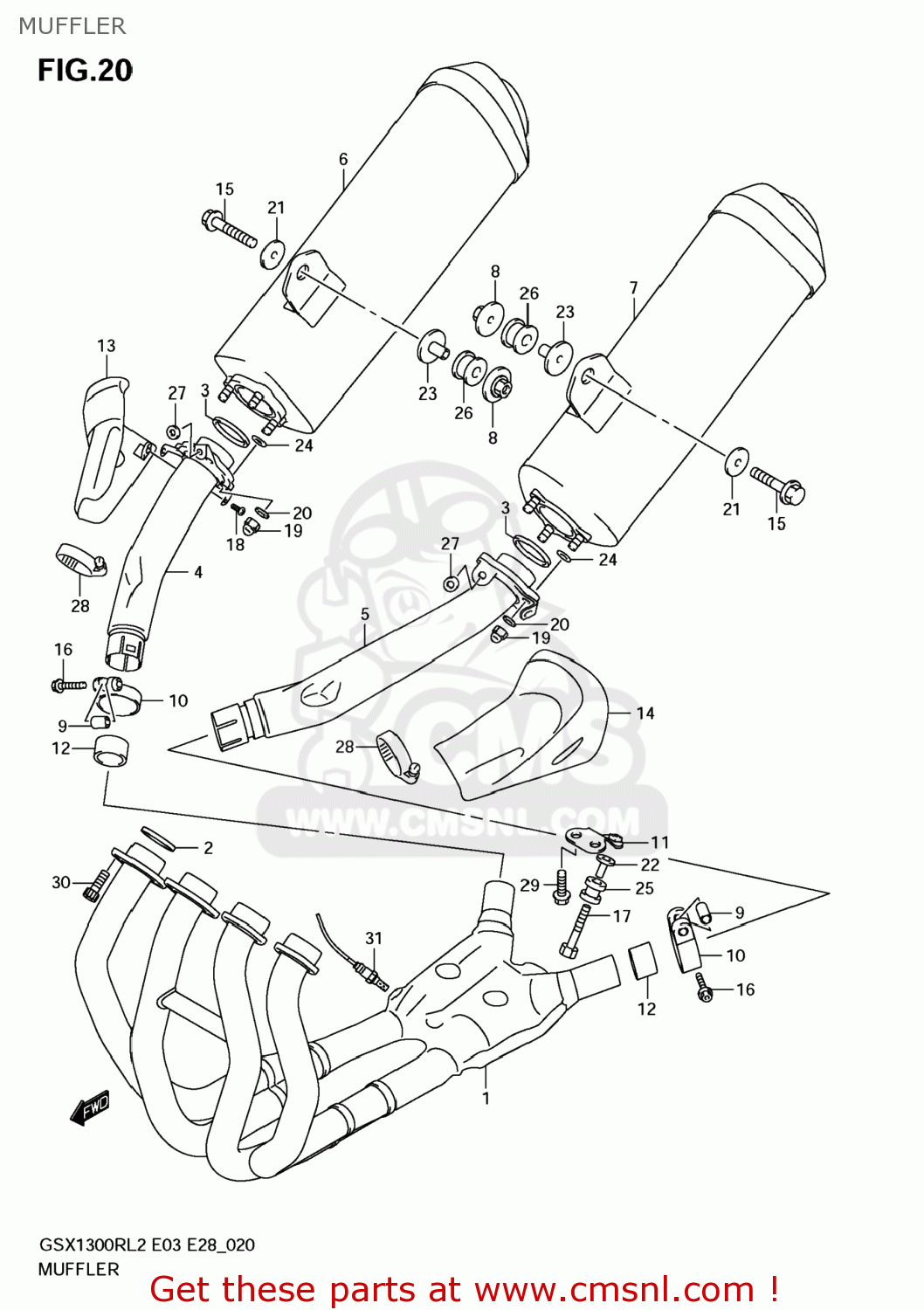

MUFFLER

ref

part #

description

quantity

1

1410015H00
ref: 1

EXHAUST

€ 1,582.00

2

1418122D01
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 9.00

3

1418133E00
ref: 3

GASKET,MUFFLER JOINT

€ 6.50

4

1423015H00
ref: 4

PIPE,JOINT,R

€ 266.00

5

1424015H00
ref: 5

PIPE,JOINT,L

€ 264.50

6

1431015H02H01
ref: 6

BODY,MUF,R

€ 1,362.00

7

1434015H02H01
ref: 7

BODY,MUF,L

€ 1,362.00

8

1441415H00
ref: 8

NUT,MUFFLER SUPPORT RR

€ 3.50

9

1445845G10
ref: 9

SPACER,CLAMP

€ 4.00

10

1445915H00
ref: 10

CLAMP,CONNECTOR MUFFLER

€ 19.00

11

1477015H00
ref: 11

BRACKET,EXHAUST SUPPORT

€ 61.00

12

1477115H00
ref: 12

CONNECTOR,MUFFLER

€ 16.50

13

1478015H00
ref: 13

COVER,MUFFLER FR,R

€ 223.50

14

1479015H00
ref: 14

COVER,MUFFLER FR,L

€ 223.50

15

0910308358
ref: 15

BOLT(8X45)

€ 3.50

16

0910308392
ref: 16

BOLT(8X40)

€ 4.00

17

0911808152A05
ref: 17

BOLT(8X45)

€ 5.00

18

0913906027
ref: 18

SCREW(6X12)

€ 3.00

19

0915908116
ref: 19

NUT

€ 7.50

20

0916008059
ref: 20

WASHER(8.5X18X1.6)

€ 2.00

21

0916008142
ref: 21

WASHER(8.5X28X1.5)

€ 2.50

22

0918008152
ref: 22

SPACER(8.6X12X24.2)

€ 6.00

23

0918008216
ref: 23

SPACER(8.6X12X25)

€ 6.00

24

0928008012
ref: 24

O RING(D:1.9,ID:7.8)

€ 4.00

25

0932012048
ref: 25

CUSHION

€ 5.00

26

0932012049
ref: 26

CUSHION

€ 9.00

27

0932110018
ref: 27

CUSHION

€ 5.00

28

0940270503
ref: 28

CLAMP

€ 10.50

29

015500820A
ref: 29

BOLT

€ 2.50

30

071300825A
ref: 30

BOLT

€ 3.00

31

1821315H01
ref: 31

SENSOR,OXYGEN

€ 336.00

all assemblies
