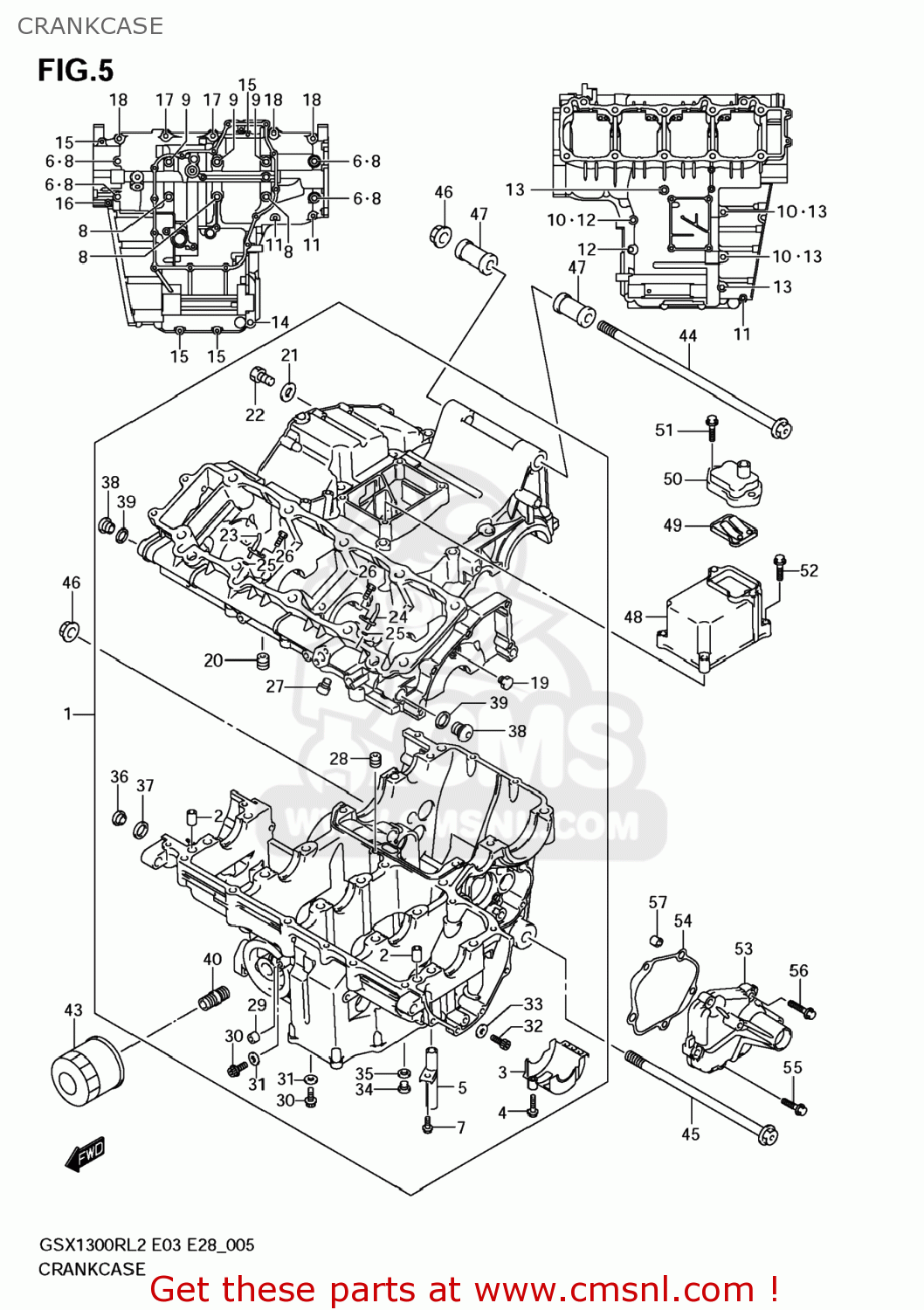

CRANKCASE

ref

part #

description

quantity

1

1130124861
ref: 1

CRANKCASE ASSY

€ 3,177.00

2

1131933E50
ref: 2

PIN,CRANKCASE

€ 4.00

3

1132324F10
ref: 3

SEPARATOR,OIL

€ 31.50

4

015470625A
ref: 4

BOLT

€ 2.50

5

1132824F00
ref: 5

UNION,BREATHER

€ 12.00

6

0916810031
ref: 6

GASKET(10.2X20X2).3 (NAS)

€ 2.00

7

015470612A
ref: 7

BOLT

€ 2.00

8

0910309008
ref: 8

BOLT(9X95)

€ 6.00

9

0910309010
ref: 9

BOLT(9X115)

€ 6.00

10

0916808016
ref: 10

GASKET(8.2X14X1) (NAS)

€ 1.00

11

015470650A
ref: 11

BOLT

€ 2.50

12

015500865A
ref: 12

BOLT

€ 3.00

13

015500880A
ref: 13

BOLT

€ 2.50

14

015501060A
ref: 14

BOLT

€ 4.00

15

015470640A
ref: 15

BOLT

€ 2.50

16

015470660A
ref: 16

BOLT

€ 2.50

17

0910308155
ref: 17

BOLT(8X60)

€ 3.00

18

0910308355
ref: 18

BOLT(8X50)

€ 3.00

19

1139333E01
ref: 19

JET,MAGNETO COOLING

€ 14.00

20

0949320012
ref: 20

JET,AIR(100)

€ 12.00

21

0916806023
ref: 21

GASKET(5.8X13X1.2) (NAS)

€ 2.00

22

071200612B
ref: 22

BOLT

€ 3.50

23

1139034E00
ref: 23

JET,PISTON COOLINGR

€ 13.50

24

1139034E10
ref: 24

JET,PISTON COOLING

€ 13.50

25

0928004004
ref: 25

O RING(D:1.2,ID:4)

€ 2.00

26

0910606075
ref: 26

BOLT(6X12)

€ 2.50

27

0910606076
ref: 27

BOLT(6X10)

€ 2.50

28

0949336006
ref: 28

JET,AIR(180)

€ 11.50

29

1153246E00
ref: 29

JET,OIL PAN GALLERY

€ 7.50

30

071200612B
ref: 30

BOLT

€ 3.50

31

0916806023
ref: 31

GASKET(5.8X13X1.2) (NAS)

€ 2.00

32

071300816B
ref: 32

BOLT

€ 2.50

33

0916808016
ref: 33

GASKET(8.2X14X1) (NAS)

€ 1.00

34

0924810010
ref: 34

PLUG(10X10)

€ 4.00

35

0916810002
ref: 35

GASKET(10X14X3.6) (NAS)

€ 2.00

36

0924816012
ref: 36

PLUG,16X8

€ 4.50

37

0916816002
ref: 37

GASKET(16X22X2) (NAS)

€ 2.00

38

0924814012
ref: 38

PLUG,14X12

€ 5.00

39

0916814002
ref: 39
09168-14004

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

40

1659106B01
ref: 40

UNION,OIL STAND

€ 6.00

41

1222824F000D0
ref: 41

BEARING,CRANK THRUST,L

€ 8.50

41

1222824F000D0
ref: 41

BEARING,CRANK THRUST,L

€ 8.50

42-1

1222824F000A0
ref: 42-1

BEARING,CRANK THRUST,L

€ 8.50

42-1

1222824F000A0
ref: 42-1

BEARING,CRANK THRUST,L

€ 8.50

42-2

1222824F000B0
ref: 42-2

BEARING,CRANK THRUST,L

€ 8.50

42-3

1222824F000C0
ref: 42-3

BEARING,CRANK THRUST,L

€ 8.50

42-4

1222824F000D0
ref: 42-4

BEARING,CRANK THRUST,L

€ 8.50

42-5

1222824F000E0
ref: 42-5

BEARING,CRANK THRUST,L

€ 8.50

42-6

1222824F000F0
ref: 42-6

BEARING,CRANK THRUST,L

€ 8.50

43

1651007J00
ref: 43

FILTER ASSY,ENGINE OIL

€ 12.50

44

0910312120
ref: 44

BOLT(12X320)

€ 16.00

45

0910312119
ref: 45

BOLT(12X243)

€ 15.00

46

0915912054
ref: 46

NUT

€ 8.00

47

1161124F00
ref: 47

SPACER,ENG MTG(L47)

€ 16.00

48

1133115H00
ref: 48

COVER,BREATHER

€ 98.50

49

1315001H00
ref: 49
13150-01H01

VALVE ASSY,BRE

€ 48.50

50

1137221H00
ref: 50

COVER,BREATHER REED VALVE

€ 13.00

51

015470620A
ref: 51

BOLT

€ 2.50

52

015470630A
ref: 52

BOLT

€ 2.50

53

1138315H00
ref: 53

COVER,GEAR SHIFT

€ 66.00

54

1148524F00
ref: 54

GASKET,GEAR SHIFT COVER (NAS)

€ 7.00

55

015470625A
ref: 55

BOLT

€ 2.50

56

015470635A
ref: 56

BOLT

€ 3.00

57

0421109149
ref: 57

PIN

€ 2.00
