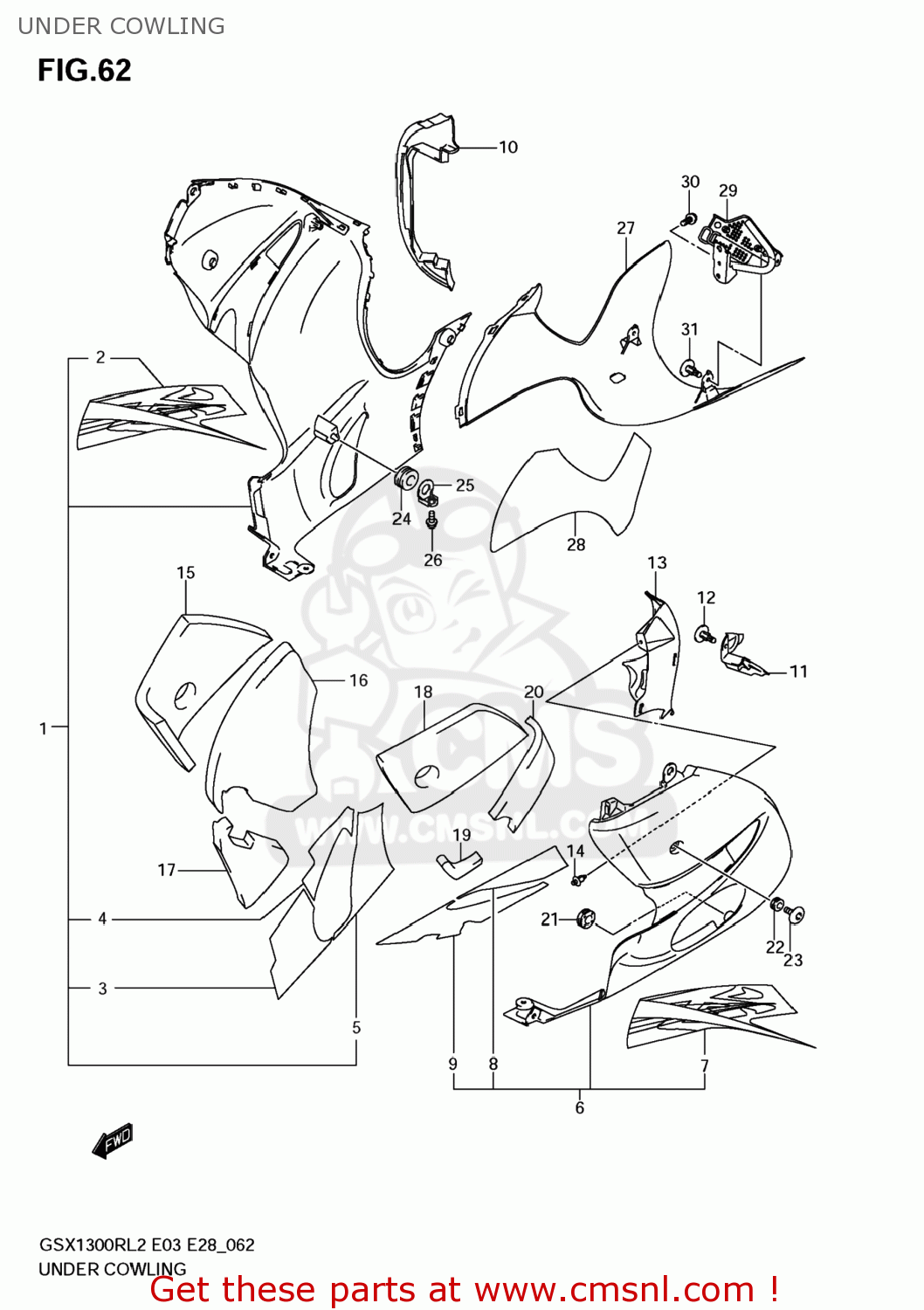

UNDER COWLING

ref

part #

description

quantity

1-1

9447015H30YVB
ref: 1-1

COWLING,UNDER,R(BLACK)

€ 251.00

1-2

9447015H30YHL
ref: 1-2

COWLING,UNDER,R(RED)

€ 251.00

1-3

9447015H30YWW
ref: 1-3

COWLING,UNDER,R(WHITE)

€ 171.00

2-1

6818515H30AAR
ref: 2-1

TAPE,UNDER COWL,R

€ 47.00

2-1

6818515H30AAR
ref: 2-1

TAPE,UNDER COWL,R

€ 47.00

2-2

6818515H30AAQ
ref: 2-2

TAPE,UNDER COWL,R

€ 47.00

2-3

6818515H30AAS
ref: 2-3

TAPE,UNDER COWL,R

€ 47.00

2-3

6818515H30AAS
ref: 2-3

TAPE,UNDER COWL,R

€ 47.00

3

9447215H00
ref: 3

SHIELD,UNDER COWL HEAT,R NO.1

€ 11.00

4

9447215H20
ref: 4

SHIELD,UNDER COWL HEAT,R NO.3

€ 7.50

5

9447215H10
ref: 5

SHIELD,UNDER COWL HEAT,R NO.2

€ 11.00

6-1

9448015H30YVB
ref: 6-1

COWLING,UNDER,L(BLACK)

€ 251.00

6-2

9448015H30YHL
ref: 6-2

COWLING,UNDER,L(RED)

€ 251.00

6-3

9448015H30YWW
ref: 6-3

COWLING,UNDER,L(WHITE)

€ 251.00

7-1

6819515H30AAR
ref: 7-1

TAPE,UNDER COWL,L

€ 47.00

7-1

6819515H30AAR
ref: 7-1

TAPE,UNDER COWL,L

€ 47.00

7-2

6819515H30AAQ
ref: 7-2

TAPE,UNDER COWL,L

€ 47.00

7-3

6819515H30AAS
ref: 7-3

TAPE,UNDER COWL,L

€ 47.00

7-3

6819515H30AAS
ref: 7-3

TAPE,UNDER COWL,L

€ 47.00

8

9448215H00
ref: 8

SHIELD,UNDER COWL HEAT,L NO.1

€ 11.50

9

9448215H10
ref: 9

SHIELD,UNDER COWL HEAT,L NO.2

€ 8.00

10

9447515H00
ref: 10

PROTECTOR,COWLING UNDER,R

€ 17.00

11

9448515H00
ref: 11

PROTECTOR,COWLING UNDER,L

€ 9.00

12

9447935F00
ref: 12

CLIP

€ 3.50

13

9448915H00
ref: 13

COVER,UNDER COWL,L

€ 15.00

14

09409063145PK
ref: 14

CLIP(BLACK)

€ 3.50

15

9447815H00
ref: 15

CUSHION,UNDER COWLING,R NO.1

€ 31.50

16

9447815H10
ref: 16

CUSHION,UNDER COWLING,R NO.2

€ 36.00

17

9447815H20
ref: 17

CUSHION,UNDER COWLING,R NO.3

€ 12.50

18

9448815H00
ref: 18

CUSHION,UNDER COWLING,L NO.1

€ 25.00

19

9448815H10
ref: 19

CUSHION,UNDER COWLING,L NO.2

€ 17.50

20

9448815H20
ref: 20

CUSHION,UNDER COWLING,L NO.3

€ 18.50

21

9447915H00
ref: 21

CUSHION,UNDER COWLING,L

€ 2.50

22

0932009016
ref: 22

CUSHION

€ 2.50

23

0913906126
ref: 23

SCREW(6X20)

€ 4.00

24

0932008028
ref: 24

CUSHION

€ 2.50

25

9456015H00
ref: 25

PLATE,UNDER COWL

€ 7.00

26

015500612B
ref: 26

BOLT

€ 2.50

27-1

9466115H00YVB
ref: 27-1

COWLING,UNDER RR

€ 241.50

27-2

9466115H00YHL
ref: 27-2

COWLING,UNDER RR

€ 264.50

27-3

9466115H00YWW
ref: 27-3

COWLING,UNDER RR

€ 182.00

28

9466715H00
ref: 28

SHIELD,UNDER COWL HEAT

€ 13.50

29

9454015H00
ref: 29

BRACKET,RR UNDER COWLING

€ 176.00

30

015500816B
ref: 30

BOLT

€ 3.00

31

9447935F00
ref: 31

CLIP

€ 3.50
