MAGNETO

GSX1300R HAYABUSA 2012 (L2) USA (E03)

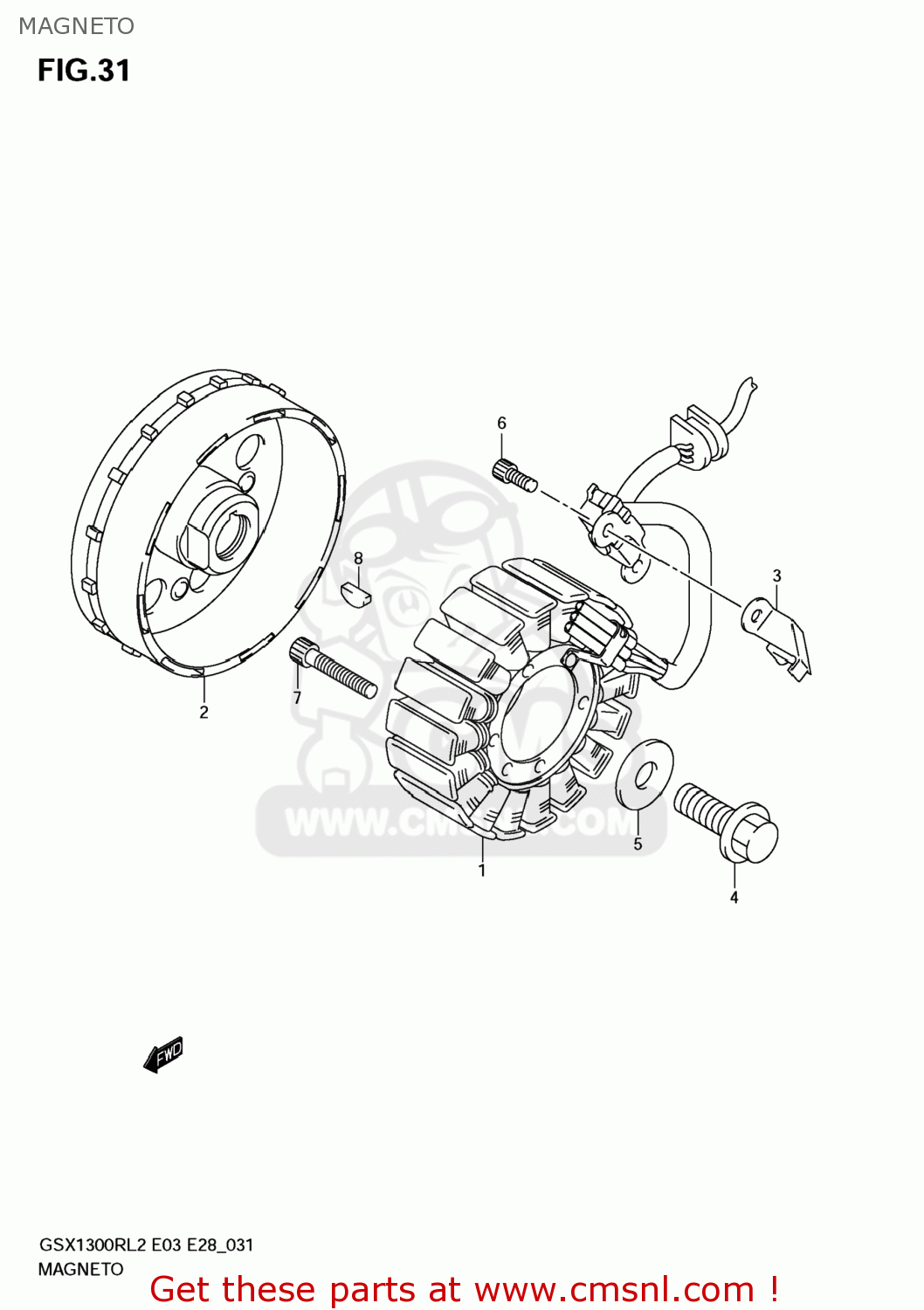

Magneto diagram GSX1300R HAYABUSA 2012 (L2) USA (E03)

MAGNETO GSX1300R HAYABUSA 2012 (L2) USA (E03)

MAGNETO GSX1300R HAYABUSA 2012 (L2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210124F20
ref: 1
32101-24F30

STARTER ASSY

€ 564.50

2

3210224F20
ref: 2

ROTOR ASSY

€ 599.00

3

3237124F00
ref: 3

CLAMP,MAGNETO LEAD

€ 4.00

4

0910312028
ref: 4

BOLT(12X30)

€ 5.00

5

0916012036
ref: 5

WASHER(12X30X3)

€ 3.00

6

071300512A
ref: 6

BOLT

€ 2.50

7

071300635A
ref: 7

BOLT

€ 1.50

8

0942004008
ref: 8

KEY

€ 3.50
