THROTTLE BODY (GSX1300R L2 E28)

GSX1300R HAYABUSA 2012 (L2) USA (E03)

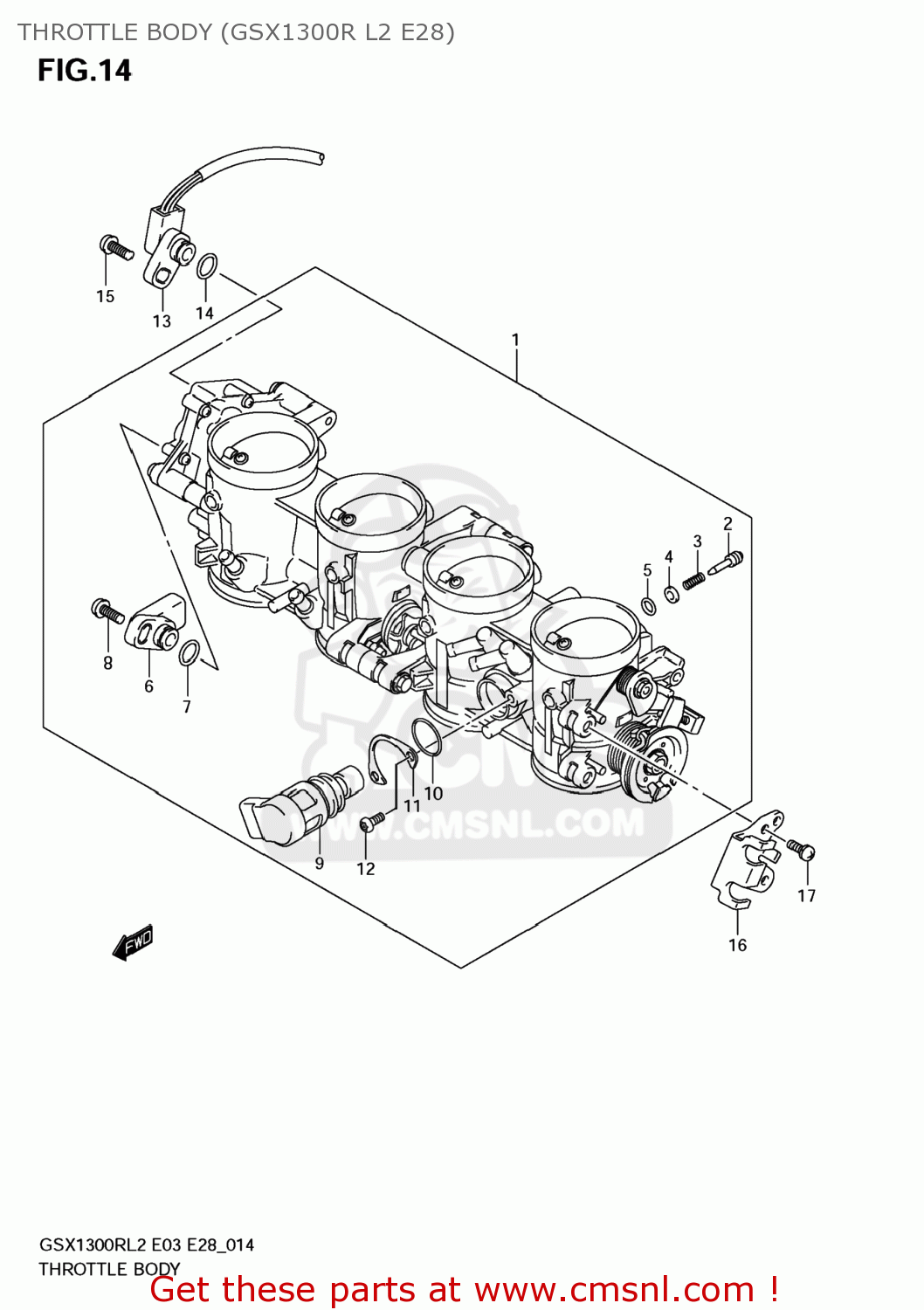

Throttle body (gsx1300r l2 e28) diagram GSX1300R HAYABUSA 2012 (L2) USA (E03)

THROTTLE BODY (GSX1300R L2 E28) GSX1300R HAYABUSA 2012 (L2) USA (E03)
THROTTLE BODY (GSX1300R L2 E28) GSX1300R HAYABUSA 2012 (L2) USA (E03)
THROTTLE BODY (GSX1300R L2 E28) GSX1300R HAYABUSA 2012 (L2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1340615H00
ref: 1
BODY ASSY,THROTTLE
1340615H00
€ 2,297.00
2
1326918G00
ref: 2
SCREW,AIR ADJUST
€ 7.50
3
1327143E00
ref: 3
SPRING
1327143E00
€ 4.00
4
1329126E00
ref: 4
WASHER
1329126E00
€ 3.00
5
1329526E00
ref: 5
O RING
1329526E00
€ 4.50
6
1358018G00
ref: 6
SENSOR ASSY,THROTTLE MAIN
1358018G00
€ 188.00
7
1357540F00
ref: 7
O RING
1357540F00
€ 3.50
8
1360540F00
ref: 8
SCREW
1360540F00
€ 3.00
9
1811715H11
ref: 9
VALVE ASSY,ISC
€ 233.00
10
1811905H00
ref: 10
O RING
1811905H00
€ 2.50
11
1342815H00
ref: 11
PLATE,ISC VALVE
€ 19.50
12
1360515H00
ref: 12
SCREW
€ 4.50
13
1358040F30
ref: 13
SENSOR ASSY,TH
1358040F30
€ 188.00
14
1357540F00
ref: 14
O RING
1357540F00
€ 3.50
15
1360540F00
ref: 15
SCREW
1360540F00
€ 3.00
16
1356515H00
ref: 16
PLATE,STAY
€ 34.00
17
1360121H00
ref: 17
SCREW
1360121H00
€ 2.50
