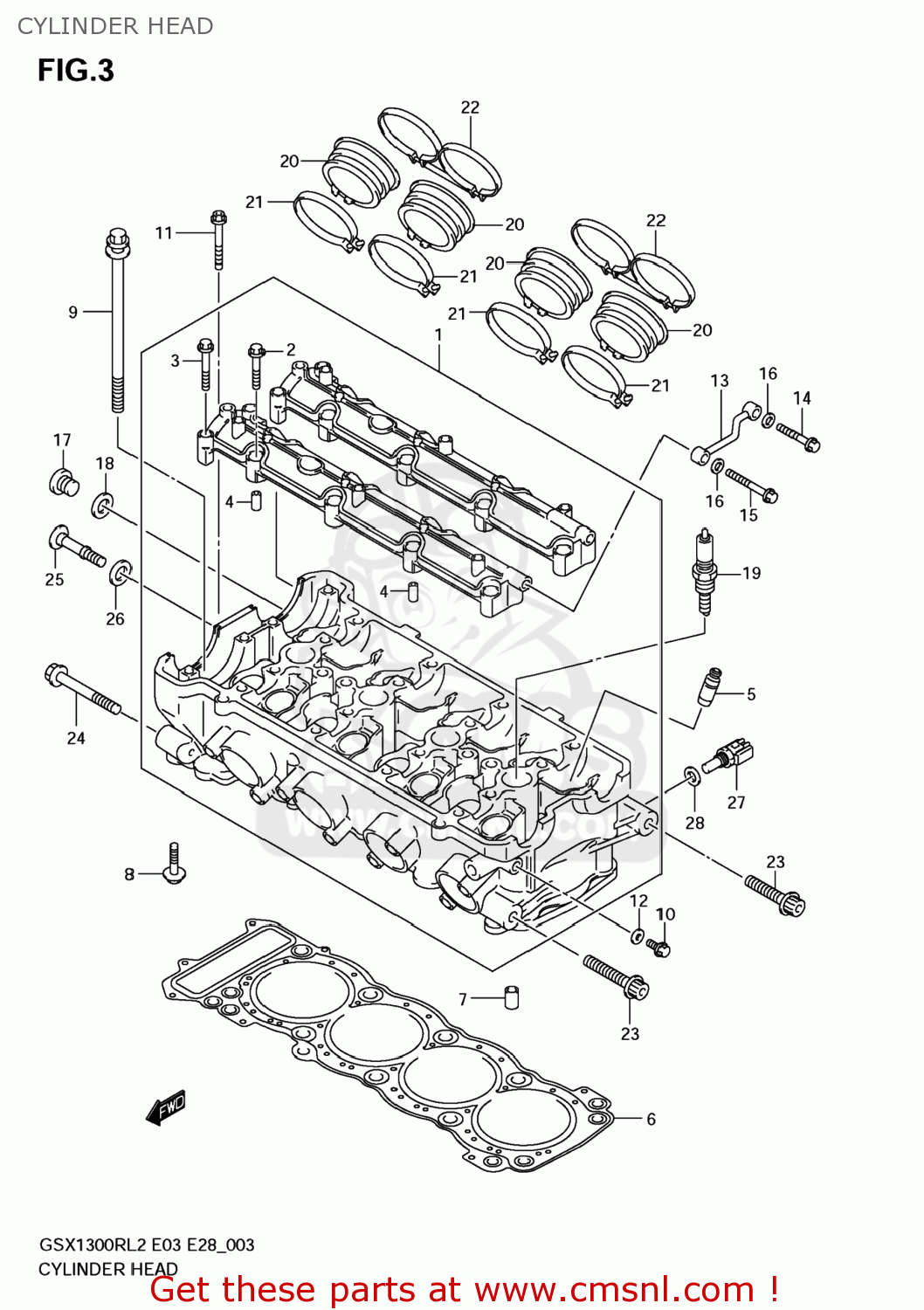

CYLINDER HEAD

ref

part #

description

quantity

1

1110015H00
ref: 1

HEAD ASSY,CYLINDER

€ 2,444.50

2

0910306266
ref: 2

BOLT(6X40)

€ 2.50

3

0910306293
ref: 3

BOLT(6X45)

€ 2.00

4

0920608007
ref: 4

PIN(6.2X8X16)

€ 2.50

5

1111515H70
ref: 5

GUIDE,VALVE(OS:0.3)

€ 19.00

6

1114115H00
ref: 6

GASKET,CYLINDER HEAD (NAS)

€ 76.50

7

0421111169
ref: 7

PIN

€ 2.00

8

015500630B
ref: 8

BOLT

€ 2.00

9

1111715H00
ref: 9

BOLT,CYLINDER HEAD(L:180)

€ 13.00

10

0910306222
ref: 10

BOLT(6X12)

€ 2.00

11

071200655B
ref: 11

BOLT

€ 3.00

12

0916806023
ref: 12

GASKET(5.8X13X1.2) (NAS)

€ 2.00

13

1113133E00
ref: 13

PIPE,CYLINDER HEAD OIL

€ 33.00

14

015500635A
ref: 14

BOLT

€ 2.50

15

015500645A
ref: 15

BOLT

€ 2.50

16

083220106A
ref: 16

WASHER

€ 2.00

17

0924816012
ref: 17

PLUG,16X8

€ 4.50

18

0916816009
ref: 18

GASKET(16X22X0.8) (NAS)

€ 2.00

19-1

0948200558
ref: 19-1

PLUG,SPARK(CR9EIA-9)

€ 21.00

19-2

0948200557
ref: 19-2

PLUG,SPARK(IU27D)

€ 21.00

19-3

0948200556
ref: 19-3

PLUG,SPARK(CR8EIA-9)

€ 20.00

19-4

0948200560
ref: 19-4

PLUG,SPARK(CR10EIA-9)

€ 13.50

19-5

0948200555
ref: 19-5

PLUG,SPARK(IU24D)

€ 20.00

19-6

0948200559
ref: 19-6

PLUG,SPARK(IU31D)

€ 13.50

20

1311115H00
ref: 20

PIPE,INTAKE

€ 15.00

21

0940260208
ref: 21

CLAMP

€ 4.50

22

1317015H10
ref: 22

CLAMP,INTAKE PIPE

€ 23.00

23

0910610069
ref: 23

BOLT(10X45)

€ 4.50

24

0910610084
ref: 24

BOLT(10X60)

€ 4.00

25

1116133E00
ref: 25

BOLT,CYL HEAD SIDE FACE

€ 8.00

26

1119113E00
ref: 26

WASHER,HEAD COVER

€ 4.00

27

1365049X00
ref: 27

SENSOR,TEMP

€ 73.00

28

0916812017
ref: 28

GASKET(12X17X1) (NAS)

€ 2.00
