WIRING HARNESS (GSX1300R L2 E28)

GSX1300R HAYABUSA 2012 (L2) USA (E03)

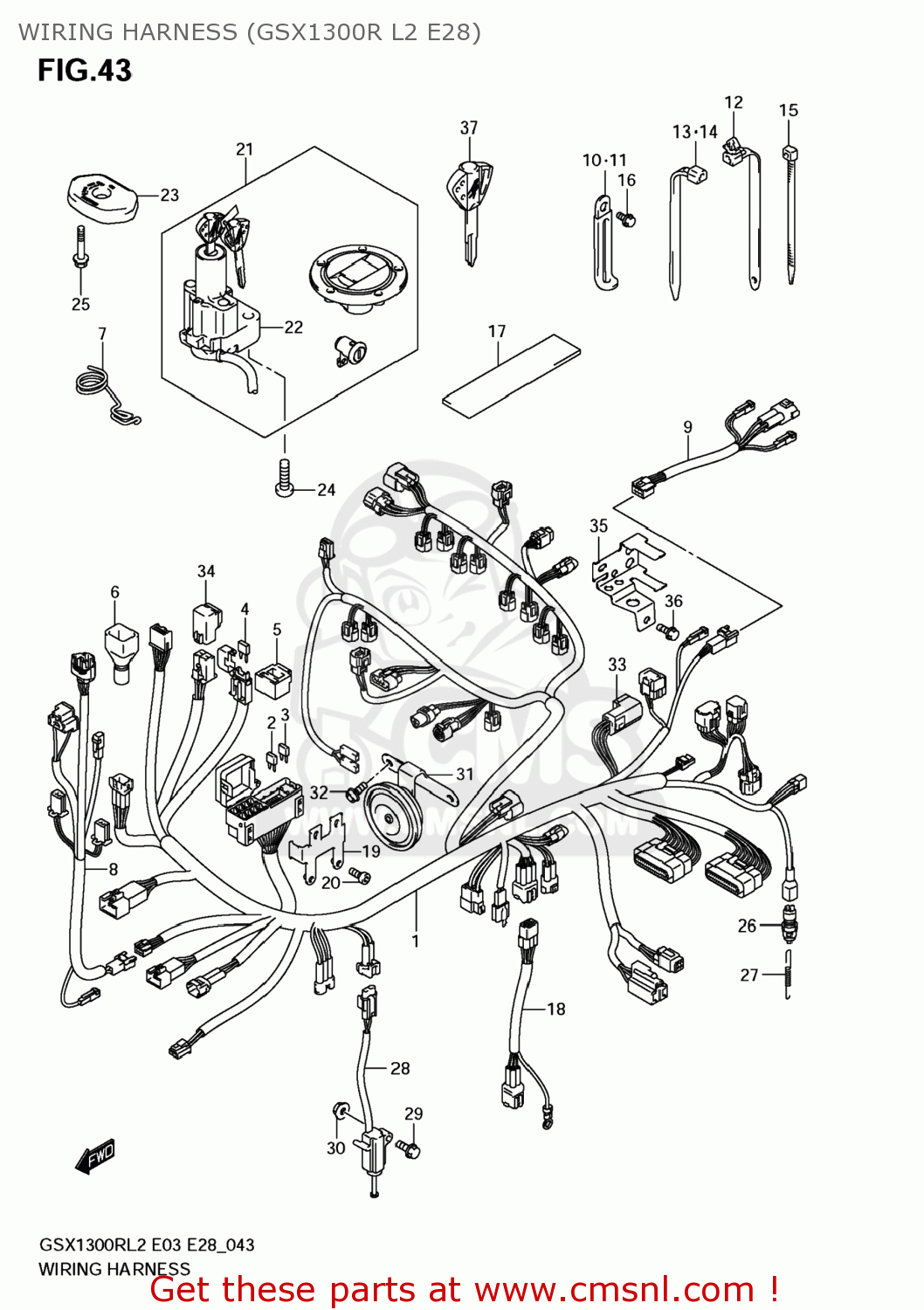

Wiring harness (gsx1300r l2 e28) diagram GSX1300R HAYABUSA 2012 (L2) USA (E03)

WIRING HARNESS (GSX1300R L2 E28) GSX1300R HAYABUSA 2012 (L2) USA (E03)
WIRING HARNESS (GSX1300R L2 E28) GSX1300R HAYABUSA 2012 (L2) USA (E03)
WIRING HARNESS (GSX1300R L2 E28) GSX1300R HAYABUSA 2012 (L2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3661015H30
ref: 1
HARNESS,WIRING
€ 966.00
2
0948110501
ref: 2
FUSE(10A)
0948110501
€ 3.00
3
0948115501
ref: 3
FUSE(15A)
0948115501
€ 1.00
4
0948115101
ref: 4
FUSE(15A)
0948115101
€ 1.50
5
3674239D00
ref: 5
HOLDER,FUSE
€ 15.00
6
3661833E00
ref: 6
COVER,SPEEDOMETER COUPLER
€ 5.50
7
3661915H00
ref: 7
GUIDE,WIRING HARNESS
€ 12.00
8
3662015H00
ref: 8
HARNESS,WIRING NO.2
€ 114.50
9
3685715H00
ref: 9
WIRE,RR COMB
€ 35.50
10
0940406429
ref: 10
CLAMP(L:45)
€ 2.50
11
0940406435
ref: 11
CLAMP(L:135)
0940406435
€ 2.50
12
0940714408
ref: 12
09407-17402
CLAMP(L:120)
0940714408
€ 5.00
13
0940714403
ref: 13
CLAMP(L:125)
0940714403
€ 2.50
14
0940718402
ref: 14
CLAMP(L:165)
0940718402
€ 2.50
15
0940714407
ref: 15
CLAMP(L:145)
0940714407
€ 4.00
16
015500610A
ref: 16
BOLT
015500610A
€ 2.00
17
3692045G00
ref: 17
PROTECTOR,WIRING HARNESS
3692045G00
€ 2.50
18
3685515H00
ref: 18
WIRE,O2 SENSOR
€ 63.00
19
3674424F00
ref: 19
BRACKET,FUSE BOX
€ 7.50
20
071200510B
ref: 20
BOLT
071200510B
€ 2.00
21
3710015850
ref: 21
LOCK SET
€ 250.50
22
3710015H80
ref: 22
LOCK ASSY,STEERING
€ 175.50
23
3718015H00
ref: 23
COVER,STEERING LOCK
3718015H00
€ 28.00
24
0913908016
ref: 24
BOLT(8X20)
0913908016
€ 3.50
25
015470530A
ref: 25
BOLT
015470530A
€ 2.00
26
3774019F00
ref: 26
SWITCH ASSY,STOP LAMP
3774019F00
€ 21.00
27
0944306012
ref: 27
SPRING
0944306012
€ 3.00
28
3784024F00
ref: 28
SWITCH ASSY,SIDE STAND
3784024F00
€ 63.50
29
0910308357
ref: 29
BOLT(8X35)
0910308357
€ 2.00
30
083161008B
ref: 30
NUT
083161008B
€ 3.00
31
3850024F00
ref: 31
HORN ASSY
3850024F00
€ 83.00
32
015500612B
ref: 32
BOLT
015500612B
€ 2.50
33
3874026E00
ref: 33
RELAY ASSY
3874026E00
€ 32.50
34
3874026E00
ref: 34
RELAY ASSY
3874026E00
€ 32.50
35
3874124F00
ref: 35
BRACKET,FUEL PUMP RLY
3874124F00
€ 5.00
36
015500612B
ref: 36
BOLT
015500612B
€ 2.50
37
3714615H00
ref: 37
KEY,BLANK
€ 97.50
