CLUTCH

GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

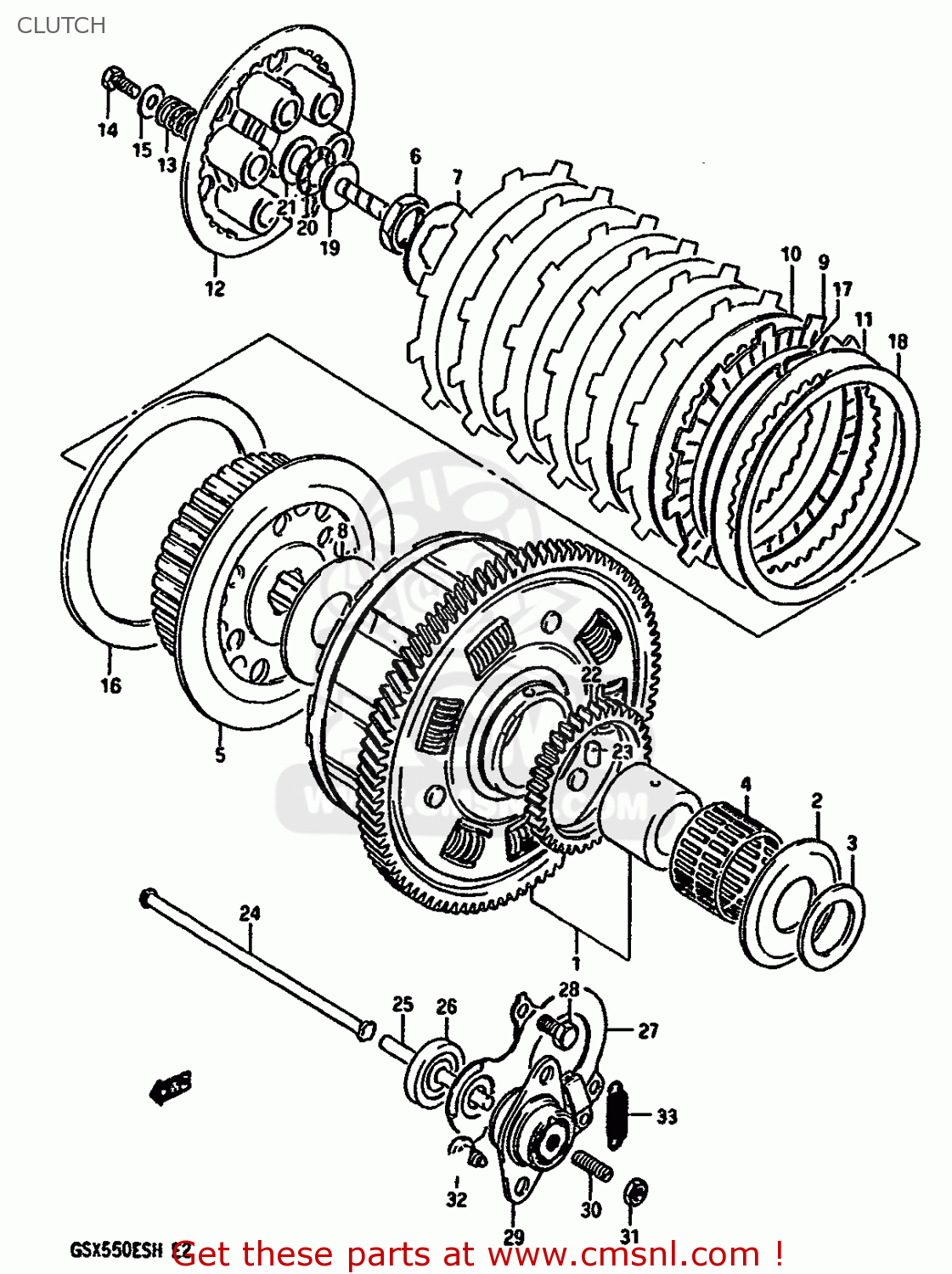

Clutch diagram GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

CLUTCH GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
CLUTCH GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
CLUTCH GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
prices are in EUR
ref
part #
description
quantity
1
2120043810
ref: 1
NT:89
GEAR ASSEMBLY,PRIMARY DRIVE
2120043810
€ 235.50
2
0916025038
ref: 2
WASHER
€ 4.50
3
0821125405
ref: 3
WASHER
€ 3.00
4
0926340004
ref: 4
BEARING(40X45X32)
€ 24.50
5
2141043401
ref: 5
HUB,CLUTCH SLEEVE
2141043401
€ 69.00
6
0914024007
ref: 6
NUT
0914024007
€ 4.50
7
0916725007
ref: 7
WASHER,LOCK
0916725007
€ 7.50
8
0916025038
ref: 8
WASHER
€ 4.50
9
2144145001
ref: 9
PLATE,CLUTCH DRIVE (NAS)
2144145001
€ 20.00
10
2145145000
ref: 10
PLATE,CLUTCH DRIVEN (NAS)
2145145000
€ 10.50
11
2145131000
ref: 11
PLATE,CLUTCH DRIVEN(T:2.0) (NAS)
2145131000
€ 9.00
12
2146216501
ref: 12
DISC,CLUTCH PRESSURE
€ 51.00
13
0944019004
ref: 13
SPRING
0944019004
€ 3.00
14
0110706166
ref: 14
BOLT
€ 2.00
15
0916006020
ref: 15
WASHER
0916006020
€ 2.00
16
2147145101
ref: 16
SEAT,WAVE WASHER
2147145101
€ 16.00
17
2148145100
ref: 17
RING,STOPPER
2148145100
€ 5.00
18
0916400003
ref: 18
WASHER
0916400003
€ 9.00
19
2312144100
ref: 19
PIECE,CLUTCH PUSH
2312144100
€ 21.50
20
0926315003
ref: 20
BEARING(15X28X2)
0926315003
€ 7.00
21
0916015015
ref: 21
WASHER
€ 4.00
22
1632143400
ref: 22
GEAR,OIL PUMP DRIVE
€ 41.00
23
0926106005
ref: 23
PIN
€ 0.00
24
2311031300
ref: 24
ROD,CLUTCH PUSH
2311031300
€ 25.00
25
2311115501
ref: 25
ROD,CLUTCH PUSH,L
2311115501
€ 11.50
26
0928506018
ref: 26
SEAL,OIL(6X34X7.5)
0928506018
€ 12.00
27
2311743400
ref: 27
PLATE,CLUTCH PUSH ROD
2311743400
€ 8.00
28
0110706127
ref: 28
BOLT
0110706127
€ 2.00
29
2320031300
ref: 29
SCREW ASSY,CLUTCH RELEASE
2320031300
€ 104.50
30
0913406010
ref: 30
SCREW(6X25)
0913406010
€ 3.00
31
0831022067
ref: 31
NUT 6MM
0831022067
€ 2.50
32
0311106168
ref: 32
SCREW
€ 1.50
33
0944308001
ref: 33
SPRING
0944308001
€ 3.00
