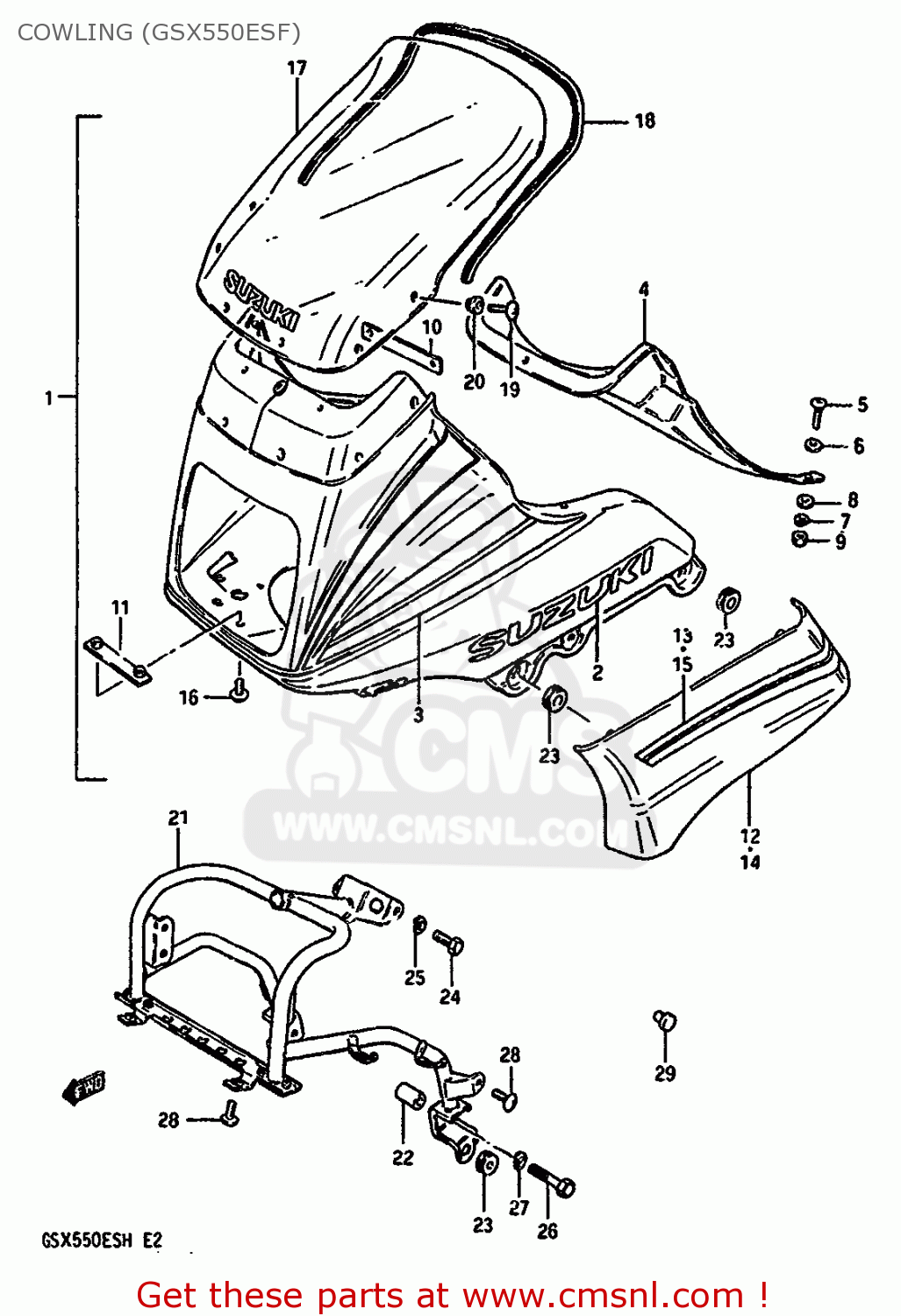

COWLING (GSX550ESF)

ref

part #

description

quantity

1-1

94700434407JH
ref: 1-1

COWLING ASSEMBLY

€ 960.50

1-2

94700434407JJ
ref: 1-2

COWLING ASSY (WHITE/RED)

€ 960.50

1-3

94700434307JH
ref: 1-3
E22

COWLING ASSY (WHITE/BLUE)

€ 983.50

1-4

94700434307JJ
ref: 1-4
E22

COWLING ASSY (WHITE/RED)

€ 909.50

2

681124340022R
ref: 2

EMBLEM

€ 9.50

3-1

68190434207JM
ref: 3-1
FOR 7JH

TAPE SET,COWLING

€ 0.00

3-2

68190434207JK
ref: 3-2
FOR 7JJ

TAPE SET

€ 0.00

4

9442243400
ref: 4

PANEL,COWLING,UPPER

€ 16.50

5

0214205165
ref: 5

SCREW

€ 2.50

6

0832221055
ref: 6

WASHER,5MM

€ 2.50

7

0832121055
ref: 7

WASHER,LOCK

€ 3.00

8

0832221055
ref: 8

WASHER,5MM

€ 2.50

9

0831012055
ref: 9

NUT ,5MM

€ 2.50

10

9441643400
ref: 10

BRACKET,COWLING,UPPER

€ 3.50

11

9442043400
ref: 11

BRACKET,COWLING,LOWER

€ 2.50

12-1

94430434407JH
ref: 12-1
FOR 7JH

COVER,COWLING,RIGHT

€ 63.50

12-2

94430434407JJ
ref: 12-2
FOR 7JJ

COVER, RH (WHITE/RED)

€ 63.50

13-1

68680434307JM
ref: 13-1
FOR 7JH

TAPE SET,COWLING SIDE,RIGHT

€ 8.00

13-2

68680434307JK
ref: 13-2
FOR 7JJ

TAPE SET

€ 0.00

14-1

94440434407JH
ref: 14-1
FOR 7JH

COVER,COWLING,LEFT

€ 25.00

14-2

94440434407JJ
ref: 14-2
FOR 7JJ

COVER,COWLING

€ 25.00

15-1

68690434307JM
ref: 15-1
FOR 7JH

TAPE SET,COWLING SIDE,LEFT

€ 8.00

15-2

68690434307JK
ref: 15-2
FOR 7JJ

TAPE SET

€ 0.00

16

0214205127
ref: 16

SCREW

€ 1.50

17

9461143421
ref: 17

WINDOW

€ 281.50

18

9463143400
ref: 18

MOLDING,LOWER

€ 18.00

19

0214205165
ref: 19

SCREW

€ 2.50

20

0932005008
ref: 20

CUSHION

€ 5.00

21

9451043400
ref: 21

BRACE,COWLING

€ 112.50

22

0918008057
ref: 22

SPACER (8.2X12.5X23.5)

€ 2.00

23

0932008018
ref: 23

CUSHION

€ 4.00

24

0110708165
ref: 24

BOLT

€ 2.00

25

0832121084
ref: 25

WASHER,LOCK,8.

€ 2.50

26

0110708455
ref: 26

BOLT

€ 2.50

27

0832121084
ref: 27

WASHER,LOCK,8.

€ 2.50

28

0214206125
ref: 28

SCREW 6X12

€ 2.00

29-1

0925006007
ref: 29-1

PLUG

€ 2.00

29-2

0925005006
ref: 29-2

PLUG

€ 2.50
