CYLINDER HEAD COVER

GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

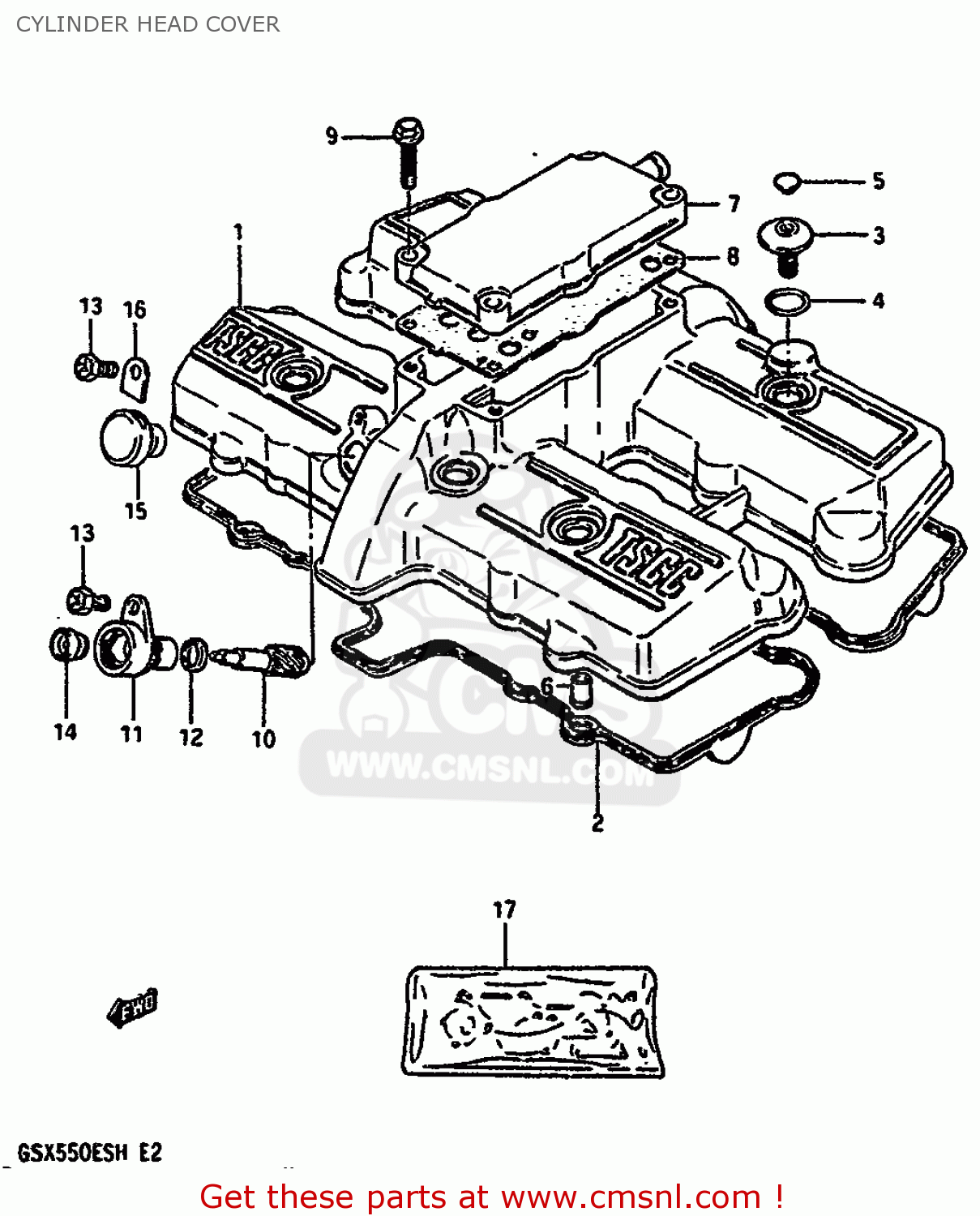

Cylinder head cover diagram GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

CYLINDER HEAD COVER GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

CYLINDER HEAD COVER GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

prices are in EUR

ref

part #

description

quantity

1

1117143403
ref: 1

COVER,CYLINDER HEAD

€ 135.00

2

1117343402
ref: 2

GASKET,CYL HEAD COVER (NAS)

€ 32.50

3

0910607001
ref: 3

BOLT(7X5.5)

€ 6.00

4

0928015006
ref: 4

O RING(D:1.9,ID:14.5)

€ 3.00

5

0925006008
ref: 5

CAP(OD:10)

€ 3.00

6

0422108129
ref: 6

PIN

€ 2.00

7

1117643402
ref: 7

COVER,BREATHER

€ 17.00

8

1117743403
ref: 8

GASKET (MCA)

€ 11.50

9

0151706254
ref: 9

BOLT

€ 2.50

10

2643149201
ref: 10
GSX550EF/EG GSX550EU

GEAR,TACHOMETER DRIVEN

€ 40.00

11

2644149000
ref: 11
GSX550EF/EG GSX550EU

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

12

2645145000A
ref: 12

SEAL,TACHOMETER DRIVEN

€ 4.50

13

0912805101
ref: 13

SCREW(5X12)

€ 1.50

14

0928905002
ref: 14
GSX550EF/EG GSX550EU

SEAL,OIL(5X12X8)

€ 11.00

15

2644245000
ref: 15
GSX550ESF/EFF/ESG/EF

PLUG,TACH GEAR SLEEVE HOLE

€ 15.50

16

2644933000
ref: 16
GSX550ESF/EFF/ESG/EF

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

17

1140043834
ref: 17
OPT EXCEPT GSX550EUF

GASKET SET (MCA)

€ 308.50
