STARTING MOTOR

GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

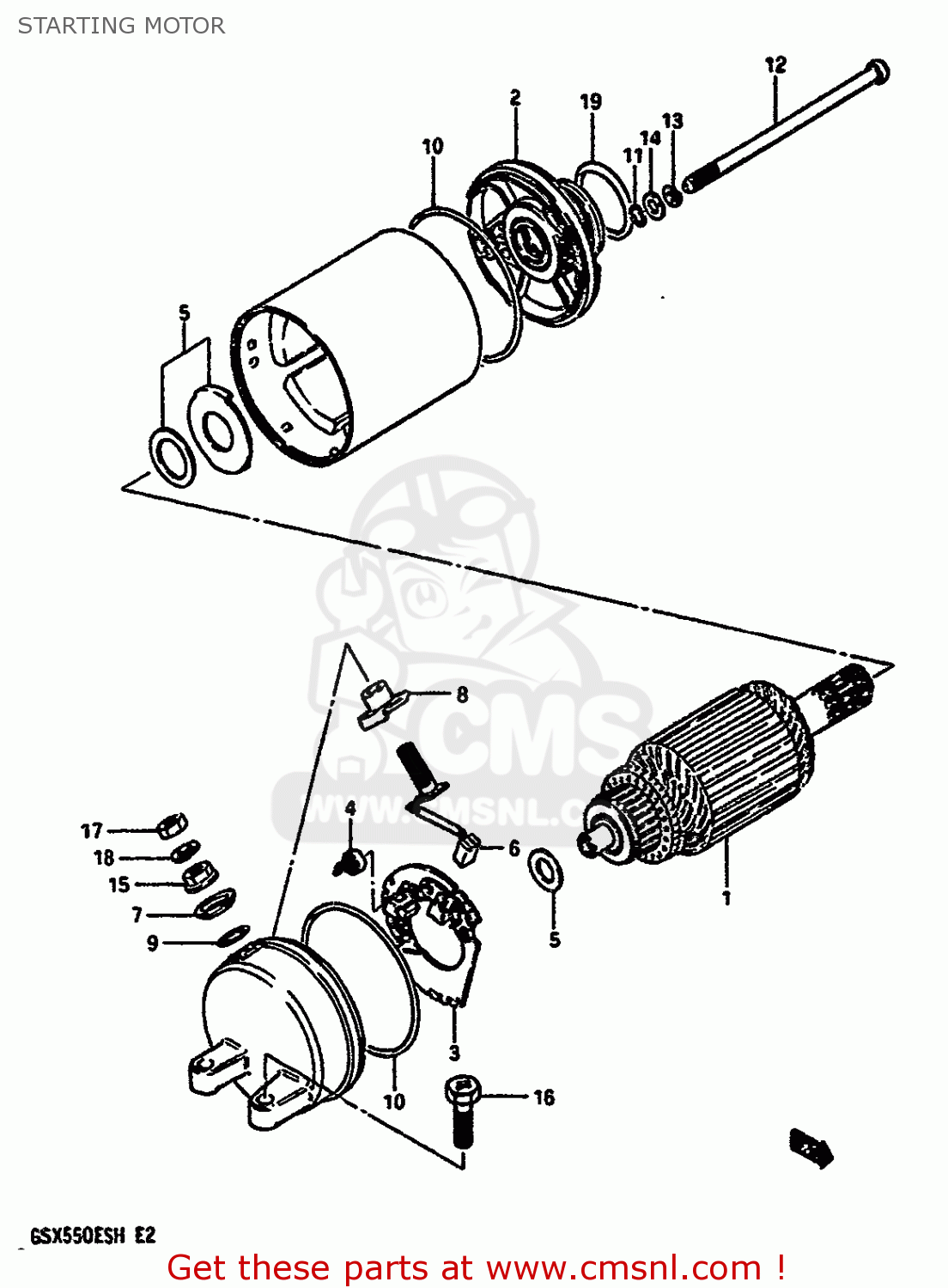

Starting motor diagram GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

STARTING MOTOR GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
STARTING MOTOR GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
STARTING MOTOR GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
prices are in EUR
ref
part #
description
quantity
0
3110043401
ref: 0
MOTOR ASSEMBLY,STARTING
3110043401
€ 731.50
1
3131043400
ref: 1
ARMATURE
€ 173.00
2
3115043400
ref: 2
BRACKET SET,STARTING MOTOR
€ 88.00
3
3113244110
ref: 3
HOLDER,BRUSH
€ 47.00
4
3113565010
ref: 4
SPRING
3113565010
€ 3.00
5
3117043400
ref: 5
SHIM SET,STARTING MOTOR
3117043400
€ 3.50
6
3113038300
ref: 6
BRUSH SUB ASSY,STARTING MOTOR
3113038300
€ 12.50
7
3117238300
ref: 7
BUSHING
3117238300
€ 4.00
8
3117138300
ref: 8
BUSH,B
3117138300
€ 5.50
9
3114338300
ref: 9
O RING
3114338300
€ 3.50
10
3126444110
ref: 10
O RING
3126444110
€ 8.00
11
3115638300
ref: 11
O RING
3115638300
€ 3.00
12
3128105300
ref: 12
BOLT
€ 8.50
13
0832121057
ref: 13
LOCK WASHER
0832121057
€ 2.00
14
3116138300
ref: 14
WASHER
3116138300
€ 2.50
15
0915906017
ref: 15
NUT
0915906017
€ 2.50
16
3121533400
ref: 16
BOLT
€ 2.00
17
0831011066
ref: 17
NUT
€ 2.00
18
0832121066
ref: 18
WASHER,LOCK
0832121066
€ 2.00
19
0928024003
ref: 19
O RING(D:3,ID:24.5)
0928024003
€ 2.00
