REAR SWINGING ARM

GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

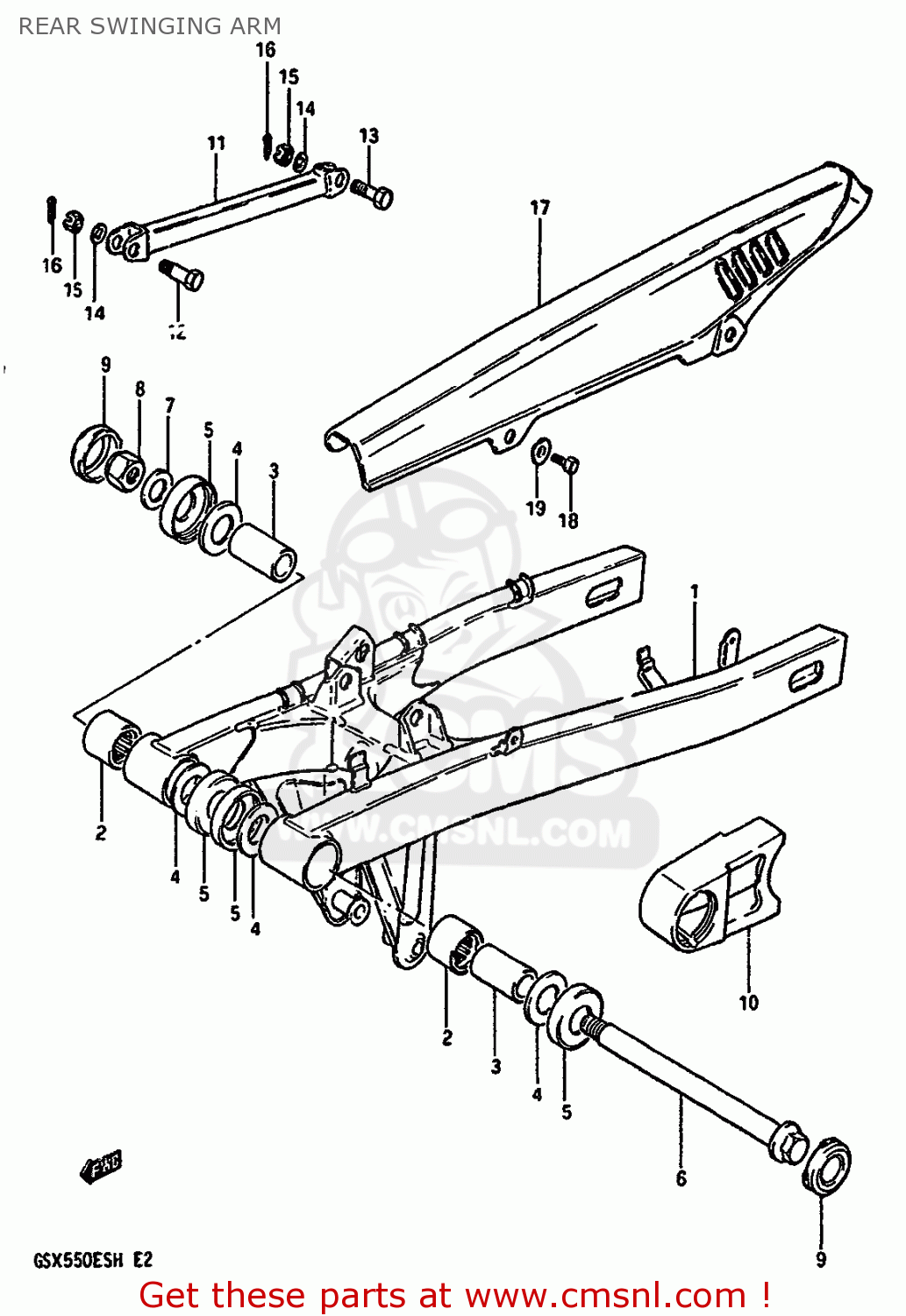

Rear swinging arm diagram GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

REAR SWINGING ARM GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
REAR SWINGING ARM GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
REAR SWINGING ARM GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
prices are in EUR
ref
part #
description
quantity
1
610004340013L
ref: 1
ARM,REAR SWING
€ 209.50
2
0926325024
ref: 2
BEARING(25X33X30)
0926325024
€ 31.50
3
6125143400
ref: 3
SPACER,RR SWGARM PIVOT
6125143400
€ 22.00
4
0821116381
ref: 4
WASHER
0821116381
€ 2.50
5
6126249000
ref: 5
COVER,RR SWGARM DUST SEAL
6126249000
€ 17.50
6
6121143400
ref: 6
SHAFT,REAR SWING ARM
6121143400
€ 27.50
7
0832211148
ref: 7
WASHER
0832211148
€ 2.00
8
0915914013
ref: 8
NUT
0915914013
€ 8.50
9
6122243400
ref: 9
CAP,SWINGINGARM PIVOT
6122243400
€ 4.00
10
6127343401
ref: 10
BUFFER,DEFENSE
6127343401
€ 27.00
11
6431033400291
ref: 11
TORQUE LINK,REAR
6431033400291
€ 17.50
12
0911110011
ref: 12
BOLT
0911110011
€ 8.00
13
0910110031
ref: 13
BOLT
€ 4.00
14
0832211104
ref: 14
WASHER 10MM
0832211104
€ 2.50
15
0831441108
ref: 15
NUT
0831441108
€ 2.50
16
0411120208
ref: 16
PIN 20X20
0411120208
€ 1.50
17
6131143400
ref: 17
CASE,CHAIN
6131143400
€ 43.50
18
0110706104
ref: 18
BOLT
€ 2.00
19
0916906026
ref: 19
WASHER
0916906026
€ 2.00
