GEAR SHIFTING

GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

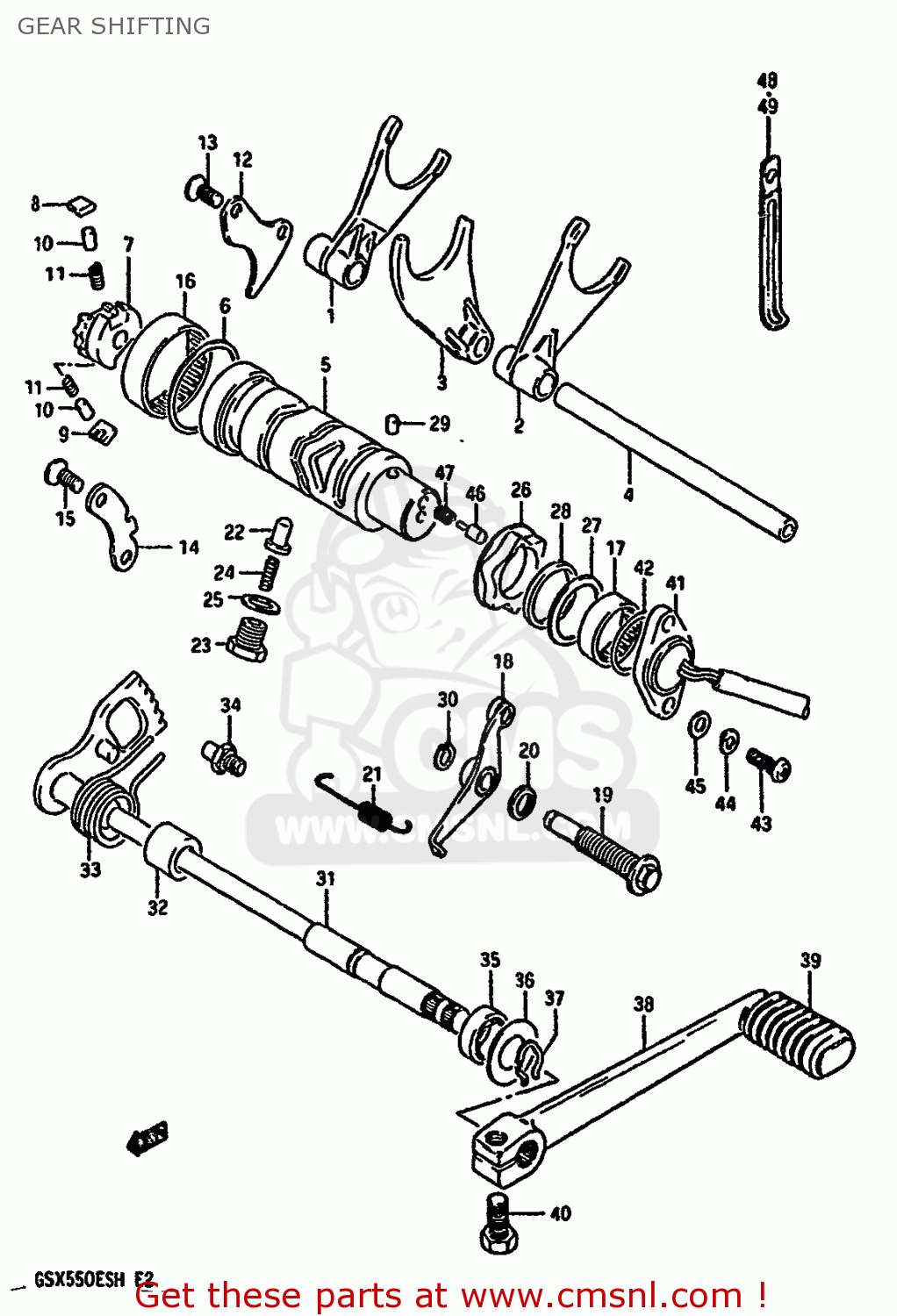

Gear shifting diagram GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

GEAR SHIFTING GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
GEAR SHIFTING GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
GEAR SHIFTING GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
prices are in EUR
ref
part #
description
quantity
1
2521143400
ref: 1
FORK,GEAR SHIFT NO.1
2521143400
€ 35.50
2
2522143400
ref: 2
FORK,GEAR SHIFT NO.2
2522143400
€ 65.50
3
2523143400
ref: 3
FORK,GEAR SHIFT NO.3
2523143400
€ 22.00
4
2541115501
ref: 4
SHAFT,GEAR SHIFT FORK
2541115501
€ 16.50
5
2531043400
ref: 5
CAM,GEAR SHIFT
€ 122.50
6
0916040006
ref: 6
WASHER (40X49X1)
0916040006
€ 1.50
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
8
2532334200
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434200
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
0926105003
€ 1.50
11
0944004003
ref: 11
SPRING
0944004003
€ 1.50
12
2533115501
ref: 12
LIFTER,GEAR SHIFT PAWL
€ 3.00
13
0212206128
ref: 13
SCREW
0212206128
€ 3.00
14
2534143400
ref: 14
GUIDE,GEAR SHIFT CAM
€ 4.50
15
0212206128
ref: 15
SCREW
0212206128
€ 3.00
16
0926343001
ref: 16
BEARING(43X49X12)
0926343001
€ 30.00
17
0926325018
ref: 17
BEARING(25X32X12)
0926325018
€ 17.50
18
2535043400
ref: 18
STOPPER,GEAR SHIFTING
2535043400
€ 11.50
19
2535343400
ref: 19
HOLDER,SHIFTING CAM STOPPER
€ 0.00
20
0916810002
ref: 20
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
21
0944308032
ref: 21
SPRING
€ 2.50
22
2535131302
ref: 22
STOPPER,GEAR SHIFTING
€ 6.50
23
2535430000
ref: 23
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
24
0944006027
ref: 24
SPRING
€ 3.00
25
0916814004
ref: 25
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
26
2538104700
ref: 26
PLATE,GEAR SHIFT CAM STOPPER
2538104700
€ 13.00
27
0821125321
ref: 27
WASHER
0821125321
€ 3.00
28
0821225305
ref: 28
WASHER
€ 0.00
29
0621104063
ref: 29
PIN 4X6
0621104063
€ 2.00
30
0833131086
ref: 30
CIRCLIP
0833131086
€ 2.00
31
2551043400
ref: 31
SHAFT,GEAR SHIFT
€ 66.50
32
0918012068
ref: 32
SPACER(12X20X15.3)
0918012068
€ 3.00
33
0944426013
ref: 33
SPRING
0944426013
€ 3.50
34
2567101000
ref: 34
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
35
0928512002
ref: 35
OIL SEAL
0928512002
€ 7.00
36
0916012020
ref: 36
WASHER (12.5X27X1.6)
0916012020
€ 2.00
37
0938412001
ref: 37
SPRING,RETAINER
0938412001
€ 2.00
38
2560043402
ref: 38
LEVER ASSEMBLY,GEAR SHIFTING
2560043402
€ 52.50
39
2565249300
ref: 39
RUBBER,PEDAL
2565249300
€ 5.50
40
0110708208
ref: 40
BOLT
0110708208
€ 3.00
41
3772043400
ref: 41
TERMINAL BASE ASSY,GEAR SHIFT
3772043400
€ 59.00
42
0928026003
ref: 42
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
43
0912505102
ref: 43
SCREW(5X14)
0912505102
€ 2.50
44
0832121057
ref: 44
LOCK WASHER
0832121057
€ 2.00
45
0832221057
ref: 45
WASHER
0832221057
€ 2.50
46
0920905011
ref: 46
PIN(5X15.5)
0920905011
€ 2.00
47
0944004010
ref: 47
SPRING
0944004010
€ 1.50
48
0940406401
ref: 48
CLAMP L:35
0940406401
€ 2.50
49
0940406404
ref: 49
CLAMP
0940406404
€ 3.00
