SIGNAL GENERATOR

GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

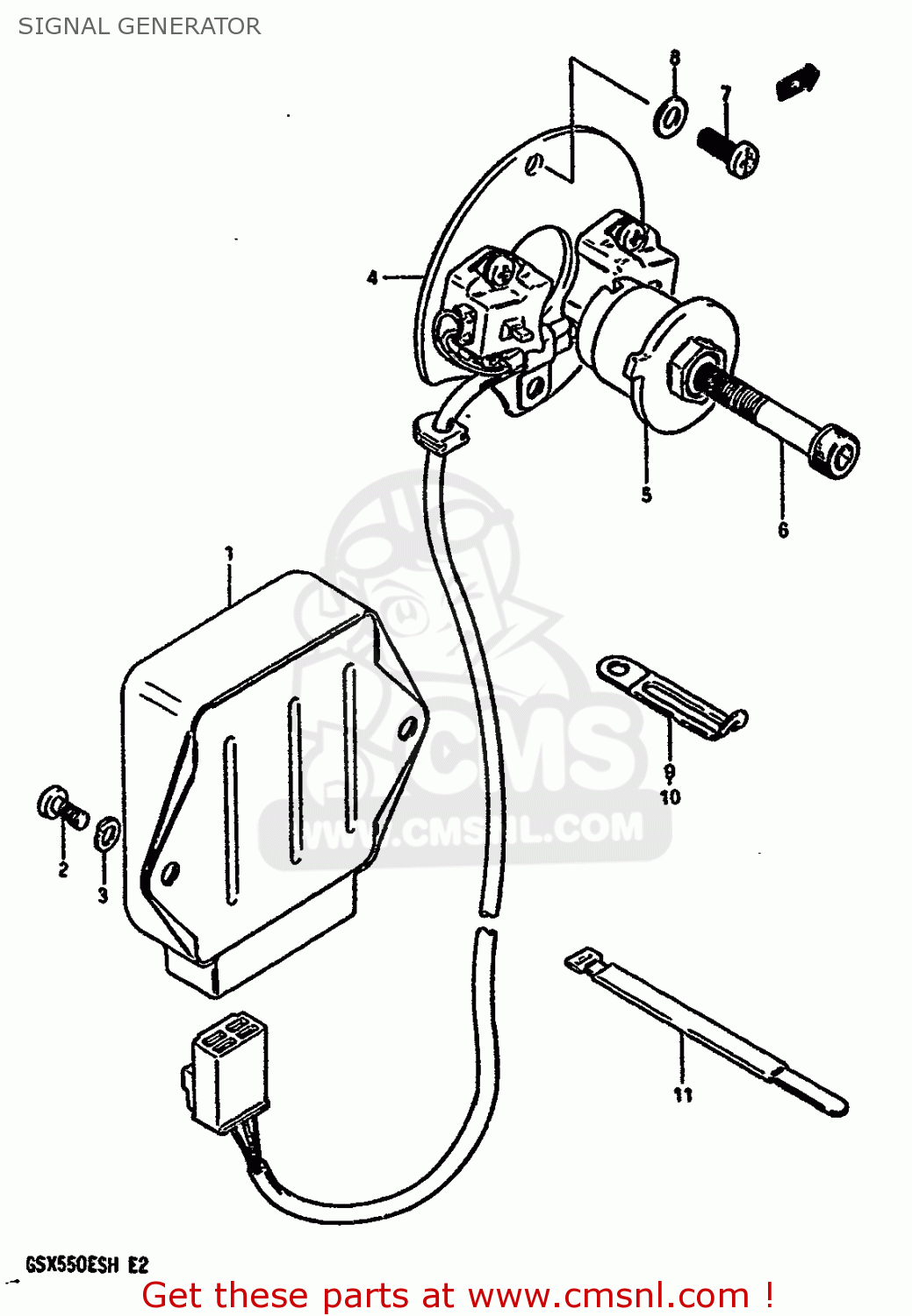

Signal generator diagram GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

prices are in EUR

ref

part #

description

quantity

3290043400
ref: 1

IGNITER UNIT ASSEMBLY

€ 531.00

0211206128
ref: 2

SCREW 6X12

€ 2.00

0832121067
ref: 3

WASHER,LOCK

€ 2.50

3311043400
ref: 4

GENERATOR ASSY,SIGNAL

€ 263.50

3312043420
ref: 5

ROTOR,SIGNAL

€ 67.00

0711008456
ref: 6

BOLT

€ 3.00

0912505024
ref: 7

SCREW(5X12)

€ 2.00

0916005028
ref: 8

WASHER(5.5X10X0.8)

€ 2.00

0940406401
ref: 9

CLAMP L:35

€ 2.50

0940408402
ref: 10

CLAMP

€ 3.50

0940718301
ref: 11

CLAMP

€ 6.00
