MUFFLER

GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

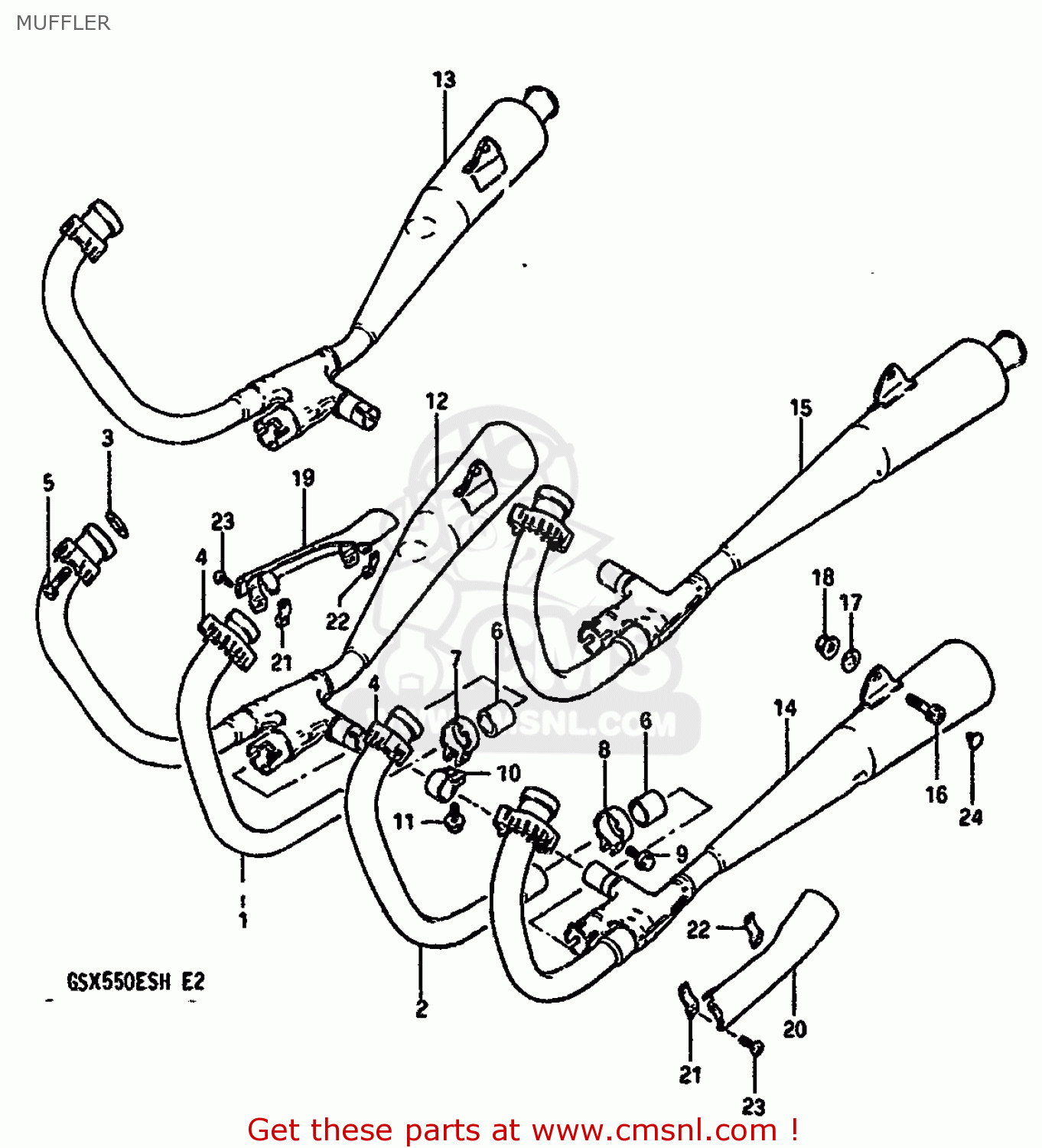

Muffler diagram GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

MUFFLER GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
MUFFLER GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
MUFFLER GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
prices are in EUR
ref
part #
description
quantity
1-1
1417043401
ref: 1-1
PIPE,EXHAUST,CENTER,RIGHT
1417043401
€ 95.50
1-2
1417043410
ref: 1-2
E18
PIPE,EXHAUST CENTER RH
€ 0.00
2-1
1418043401
ref: 2-1
PIPE,EXHAUST,CENTER,LEFT
1418043401
€ 88.00
2-2
1418043410
ref: 2-2
E18
PIPE,EXHAUST CENTER LH
€ 0.00
3
1418105020
ref: 3
GASKET,EXHAUST PIPE (NAS)
1418105020
€ 6.50
4
1418231302
ref: 4
CLAMP,EXHAUST PIPE
1418231302
€ 24.00
5
0910608036
ref: 5
BOLT
0910608036
€ 3.00
6
1477147020
ref: 6
CONNECTOR,MUFFLER
1477147020
€ 35.00
7
1445934300
ref: 7
CLAMP,MUFFLER CONNECTOR
1445934300
€ 13.00
8
1446934300
ref: 8
CLAMP,MUFFLER CONNECTOR
1446934300
€ 13.00
9
0151708254
ref: 9
BOLT
0151708254
€ 2.50
10
1477243400
ref: 10
CLAMP,EXHAUST
€ 8.50
11
0151706205
ref: 11
BOLT
€ 2.50
12
1430543402
ref: 12
MUFFLER, RH
1430543402
€ 360.00
13
1430543415
ref: 13
E18
MUFFLER,RH
1430543415
€ 417.50
14
1430643402
ref: 14
MUFFLER, LH
1430643402
€ 360.00
15
1430643415
ref: 15
E18
MUFFLER,LH
€ 438.50
16
0910610015
ref: 16
BOLT
0910610015
€ 4.50
17
0916010005
ref: 17
WASHER(10.5X20X3.2)
0916010005
€ 2.00
18
0915910014
ref: 18
NUT
0915910014
€ 2.00
19
1478043402
ref: 19
COVER,MUFFLER,RIGHT
1478043402
€ 33.50
20
1479043402
ref: 20
COVER,MUFFLER,LEFT
1479043402
€ 31.50
21
1478531301
ref: 21
CLAMP,MUFFLER COVER
1478531301
€ 4.50
22
1478543400
ref: 22
CLAMP,MUFFLER COVER
1478543400
€ 6.00
23
0211205165
ref: 23
SCREW
0211205165
€ 2.00
24
4357534500
ref: 24
CAP
4357534500
€ 1.50
