TRANSMISSION

GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

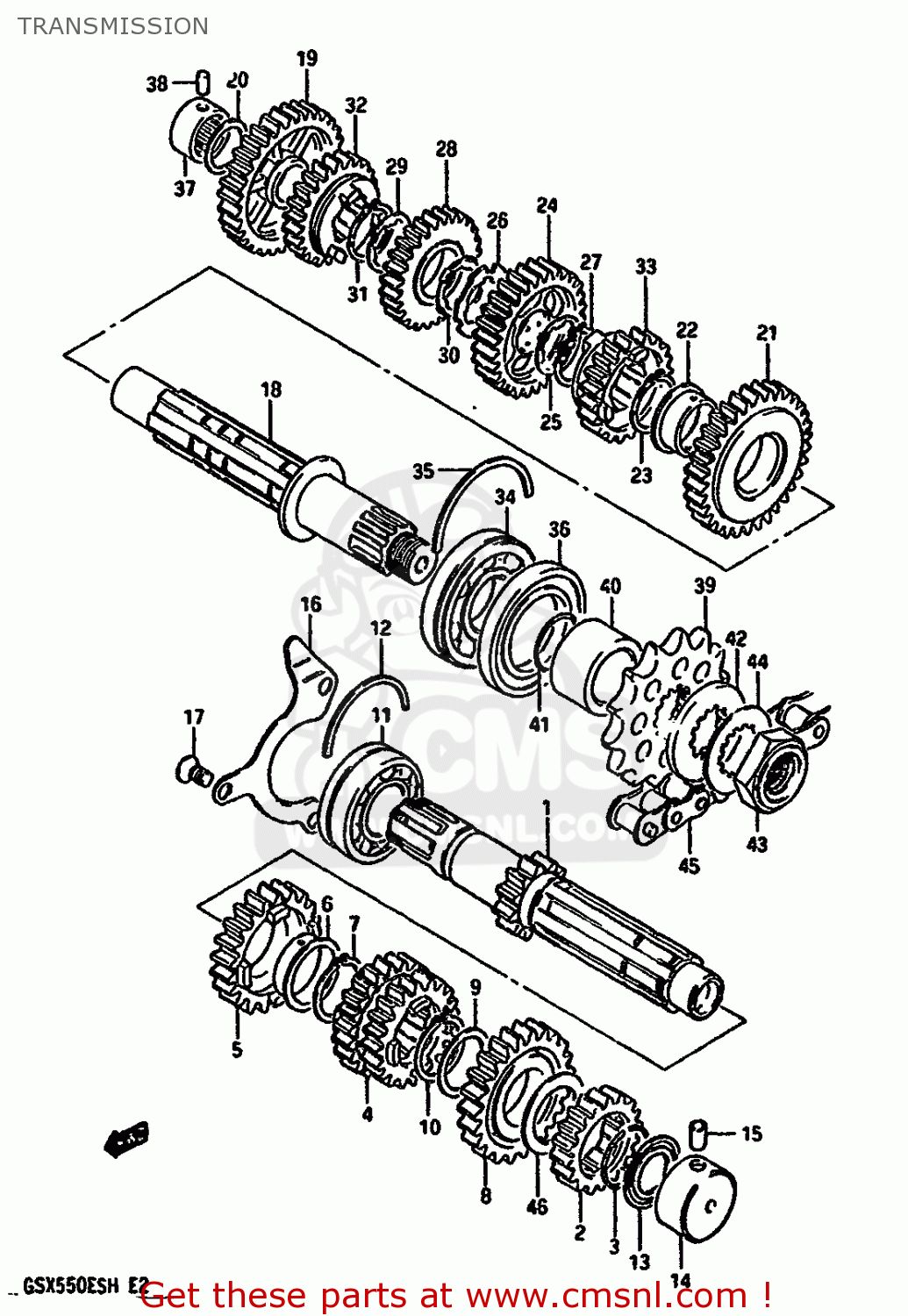

Transmission diagram GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

TRANSMISSION GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
TRANSMISSION GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
TRANSMISSION GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
prices are in EUR
ref
part #
description
quantity
1
2412143400
ref: 1
SHAFT,COUNTER
€ 152.00
2
2422143400
ref: 2
GEAR,SECOND DRIVE
2422143400
€ 33.50
3
0938025006
ref: 3
RING,SNAP
0938025006
€ 2.00
4
2423143401
ref: 4
GEAR,THIRD/FOURTH DRIVE
€ 98.50
5
2425143400
ref: 5
GEAR,FIFTH DRIVE
€ 85.00
6
0930125001
ref: 6
BUSHING
€ 12.50
7
0938025003
ref: 7
RING,SNAP
0938025003
€ 3.00
8
2426143401
ref: 8
GEAR,SIXTH DRIVE
2426143401
€ 74.50
9
0916725012
ref: 9
WASHER,LOCK
0916725012
€ 3.50
10
0938025003
ref: 10
RING,SNAP
0938025003
€ 3.00
11
0926725008
ref: 11
BEARING(25X52X19.6)
0926725008
€ 79.00
12
0939058001
ref: 12
C RING
0939058001
€ 2.00
13
0928520006
ref: 13
SEAL,OIL(20X31.2X2.7)
0928520006
€ 7.00
14
0926320049
ref: 14
BEARING(20X34X17.5)
0926320049
€ 58.00
15
0422107209
ref: 15
PIN
0422107209
€ 1.50
16
2474143400
ref: 16
PLATE,COUNTERSHAFT BEARING
€ 5.50
17
0212206167
ref: 17
SCREW
0212206167
€ 2.00
18
2413143401
ref: 18
SHAFT,DRIVE
2413143401
€ 125.50
19
2431043400
ref: 19
GEAR,FIRST DRIVEN
2431043400
€ 59.50
20
0821120341
ref: 20
WASHER
0821120341
€ 2.00
21
2432143400
ref: 21
GEAR,SECOND DRIVEN
€ 76.50
22
0930125001
ref: 22
BUSHING
€ 12.50
23
0938025003
ref: 23
RING,SNAP
0938025003
€ 3.00
24
2433043401
ref: 24
GEAR,3RD DRIVEN
2433043401
€ 102.50
25
0916725012
ref: 25
WASHER,LOCK
0916725012
€ 3.50
26
0916725013
ref: 26
WASHER,LOCK
0916725013
€ 2.50
27
0938025003
ref: 27
RING,SNAP
0938025003
€ 3.00
28
2434043400
ref: 28
GEAR,FOURTH DRIVEN
2434043400
€ 87.00
29
0916725012
ref: 29
WASHER,LOCK
0916725012
€ 3.50
30
0916925001
ref: 30
WASHER
0916925001
€ 2.00
31
0930025003
ref: 31
CIRCLIP
€ 0.00
32
2435143401
ref: 32
GEAR,FIFTH DRIVEN
2435143401
€ 46.00
33
2436143402
ref: 33
GEAR,SIXTH DRIVEN
2436143402
€ 48.50
34
0926225065
ref: 34
BALL BEARING 25X62X17
0926225065
€ 59.50
35
0939062006
ref: 35
C-RING
0939062006
€ 5.00
36
0928333002
ref: 36
SEAL,OIL(33X62X7)
0928333002
€ 14.00
37
0926320040
ref: 37
BEARING(20X34X20)
0926320040
€ 42.50
38
0422107209
ref: 38
PIN
0422107209
€ 1.50
39
2751143400
ref: 39
SPROCKET,ENGINE
2751143400
€ 45.00
40
0918025066
ref: 40
SPACER (25X33X20.1)
0918025066
€ 7.50
41
0928025001
ref: 41
O RING(D:1,ID:24.5)
0928025001
€ 2.50
42
2751945201
ref: 42
SPACER
2751945201
€ 22.00
43
0915920001
ref: 43
NUT
0915920001
€ 12.00
44
0916725011
ref: 44
WASHER
0916725011
€ 2.50
45
2760031320
ref: 45
CHAIN ASSEMBLY,DRIVE
€ 197.00
46-1
0918125036
ref: 46-1
SHIM (T:0.5)
€ 3.00
46-2
0918125037
ref: 46-2
SHIM (T:0.6)
€ 3.50
46-3
0918125038
ref: 46-3
SHIM (T:0.7)
0918125038
€ 3.50
46-4
0918125039
ref: 46-4
SHIM
0918125039
€ 3.00
up
