FRONT DAMPER

GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

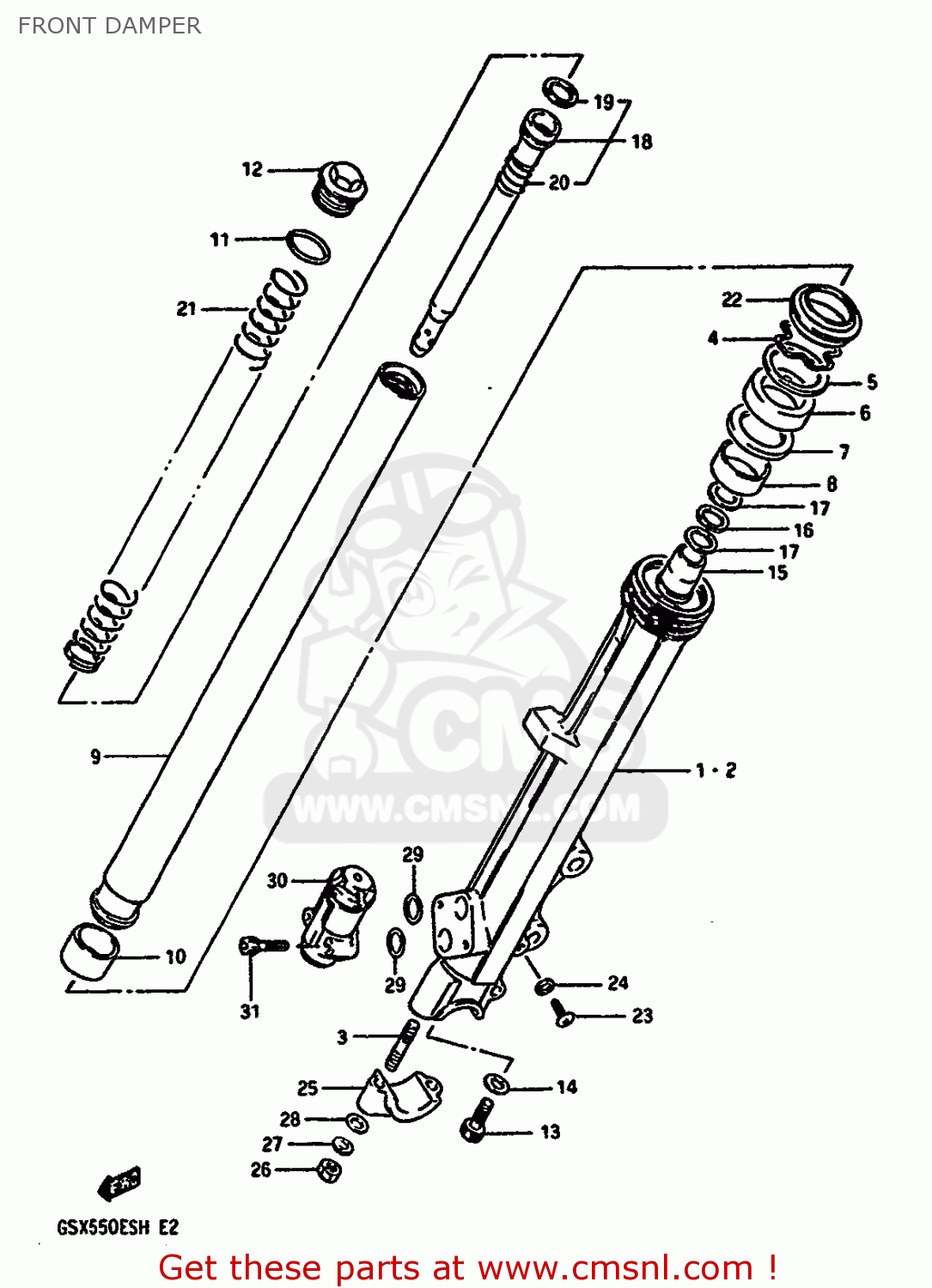

Front damper diagram GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

FRONT DAMPER GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

FRONT DAMPER GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

prices are in EUR

ref

part #

description

quantity

0

5110343610
ref: 0

DAMPER ASSY, RH

€ 293.50

0

5110443610
ref: 0

DAMPER ASSY, LH

€ 293.50

1

511304340515T
ref: 1

TUBE,FORK,OUTER,RIGHT

€ 196.50

2

511404340515T
ref: 2

TUBE,FORK,LEFT,OUTER

€ 0.00

3

0141108308
ref: 3

STUD 8X30

€ 2.00

4

5115640301
ref: 4

RING,STOPPER

€ 4.50

5

5115849000
ref: 5

WASHER. FRONT FORK

€ 7.00

6

5115349001
ref: 6

OIL SEAL,FRONT FORK

€ 16.50

7

5115849500
ref: 7

WASHER

€ 4.00

8

5116749510
ref: 8

METAL,SLIDE

€ 10.50

9

5111043430
ref: 9

TUBE,FORK INNER

€ 264.00

10

5112149510
ref: 10

METAL,FR FORK PISTON

€ 17.50

11

5111738260
ref: 11

O RING

€ 2.50

12

5135143410
ref: 12

CAP

€ 26.50

13

5114716510
ref: 13

BOLT,FORK CYLINDER(10X25)

€ 3.50

14

5114841310
ref: 14

GASKET (NAS)

€ 2.50

15

5119545420
ref: 15

PIECE,OIL LOCK

€ 15.50

16

5112345420
ref: 16

WASHER

€ 3.50

17

5112545420
ref: 17

SPRING,LEAF

€ 3.50

18

5114643405
ref: 18

CYLINDER,FRONT FORK

€ 0.00

19

5119643400
ref: 19

RING,PISTON

€ 7.00

20

5117743400
ref: 20

SPRING,REBOUND

€ 0.00

21

5117143410
ref: 21

SPRING

€ 41.00

22

5117343400
ref: 22

SEAL,DUST

€ 14.00

23

0211204085
ref: 23

SCREW

€ 2.00

24

5118303010
ref: 24

GASKET,DRAIN,PLUG (NAS)

€ 3.00

25

511324340015T
ref: 25

HOLDER,AXLE

€ 24.00

26

0831011085
ref: 26

NUT

€ 1.50

27

0832121084
ref: 27

WASHER,LOCK,8.

€ 2.50

28

0832211084
ref: 28

WASHER

€ 1.50

29

5179900A00
ref: 29

O RING

€ 5.50

30

5177043405
ref: 30

PDF ASSEMBLY

€ 169.50

31

0711006408
ref: 31

BOLT

€ 2.50
