TURN SIGNAL LAMP (E1,E4,E6,E24,E34,E53)

GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

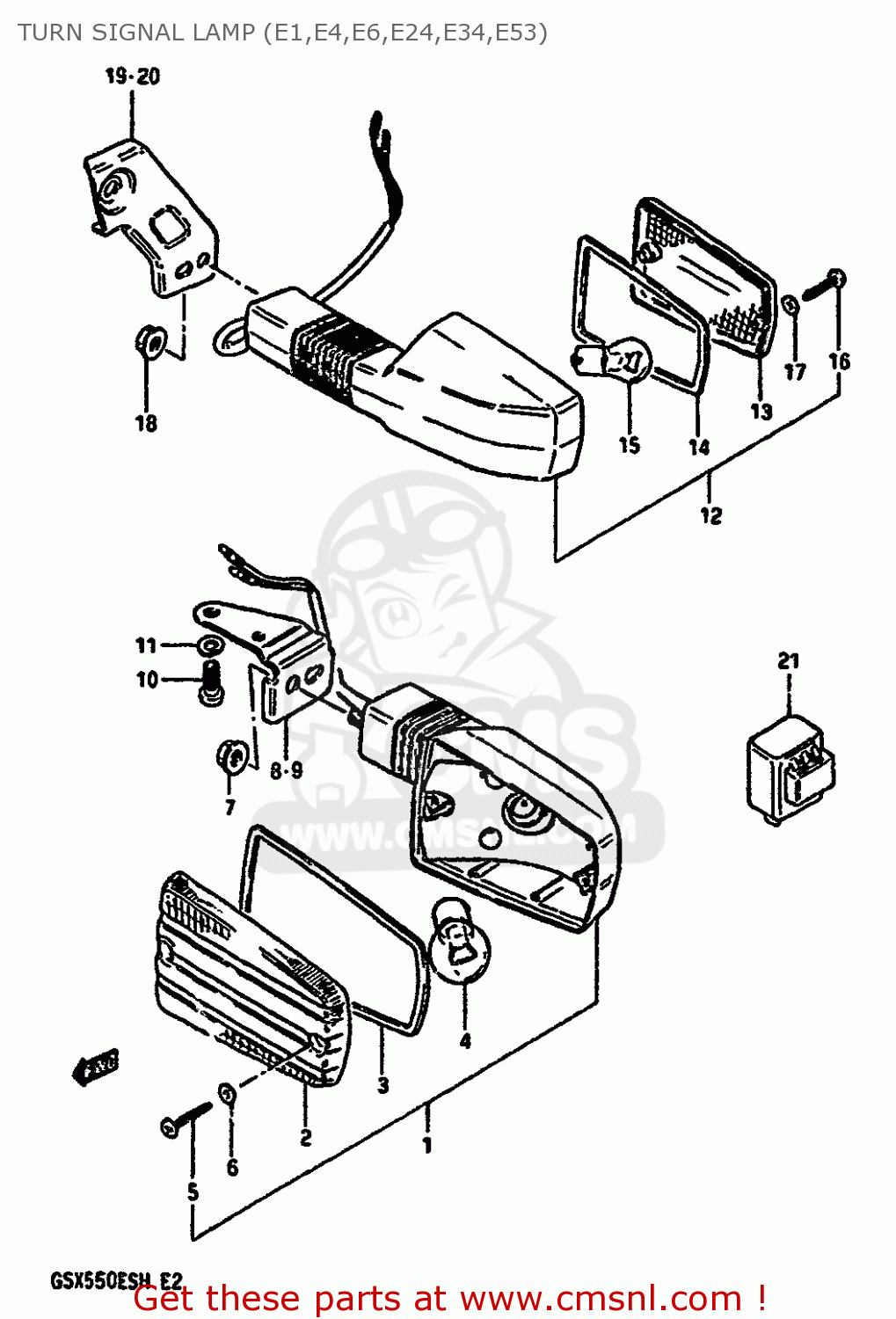

Turn signal lamp (e1,e4,e6,e24,e34,e53) diagram GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

TURN SIGNAL LAMP (E1,E4,E6,E24,E34,E53) GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
TURN SIGNAL LAMP (E1,E4,E6,E24,E34,E53) GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
TURN SIGNAL LAMP (E1,E4,E6,E24,E34,E53) GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
prices are in EUR
ref
part #
description
quantity
1-1
3560143400
ref: 1-1
E1,E6,E24
LAMP ASSY,REAR TURN SIGNAL
3560143400
€ 98.50
1-2
3560143421
ref: 1-2
E4,E34,E53
LAMP ASSY, FRONT TURN SIGNAL
3560143421
€ 98.50
2
3561243410
ref: 2
LENS
3561243410
€ 11.00
3
3561343410
ref: 3
GASKET (NAS)
3561343410
€ 3.50
4-1
0947112006
ref: 4-1
E1,E6,E24
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
4-2
0947112045
ref: 4-2
E4,E34,E53 EXECUTED
BULB(12V21W)
0947112045
€ 5.00
5
0321104208
ref: 5
SCREW
0321104208
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0831626085
ref: 7
NUT M8
0831626085
€ 1.50
8
3567143400
ref: 8
GSX550ESF/EFF/ESG/EF
BRACKET,FRONT TURN SIGNAL
3567143400
€ 5.00
9
3568143400
ref: 9
GSX550ESF/EFF/ESG/EF
BRACKET,FRONT TURN SIGNAL
3568143400
€ 5.50
10
0211206166
ref: 10
SCREW
€ 2.00
11
0832121066
ref: 11
WASHER,LOCK
0832121066
€ 2.00
12-1
3560143400
ref: 12-1
E1,E6,E24
LAMP ASSY,REAR TURN SIGNAL
3560143400
€ 98.50
12-2
3560343421
ref: 12-2
E4,E34,E53
LAMP ASSY, REAR TURN SIGNAL
3560343421
€ 75.00
13-1
3561243410
ref: 13-1
E1,E6,E24
LENS
3561243410
€ 11.00
13-2
3565243420
ref: 13-2
E4,E34,E53
LENS,TURN SIGN
3565243420
€ 11.50
14
3561343410
ref: 14
GASKET (NAS)
3561343410
€ 3.50
15-1
0947112006
ref: 15-1
E1,E6,E24
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
15-2
0947112045
ref: 15-2
E4,E34,E53 EXECUTED
BULB(12V21W)
0947112045
€ 5.00
16
0321104208
ref: 16
SCREW
0321104208
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
3562743010
€ 2.00
18
0831626086
ref: 18
NUT
€ 1.50
19
3562143400
ref: 19
BRACKET,REAR TURN SIGNAL
€ 7.50
20
3564143400
ref: 20
BRACKET,REAR TURN SIGNAL
€ 7.50
21
3861031310
ref: 21
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
