Buy Suzuki GSX Parts Online


FUEL COCK

GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

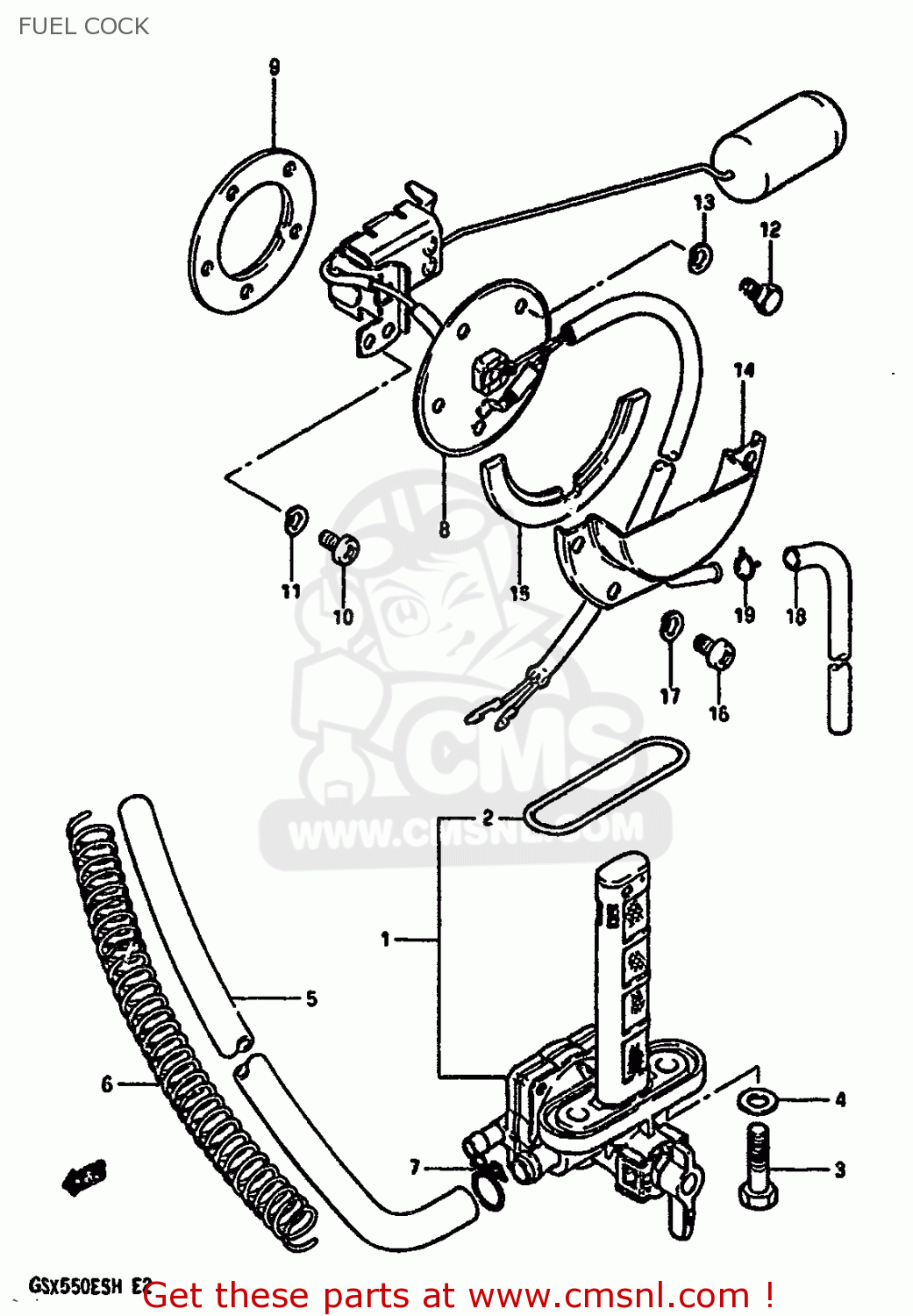

Fuel cock diagram GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

FUEL COCK GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
FUEL COCK GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
FUEL COCK GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
prices are in EUR
ref
part #
description
quantity
1
4430043461
ref: 1
COCK ASSY,FUEL
4430043461
€ 98.00
2
4434849170
ref: 2
O RING
4434849170
€ 3.50
3
0912806006
ref: 3
BOLT(6X20)
0912806006
€ 2.00
4
0916806010
ref: 4
GASKET
0916806010
€ 2.00
5
0934307073
ref: 5
HOSE
0934307073
€ 17.50
6
0944013018
ref: 6
SPRING
€ 14.50
7
0940110402
ref: 7
CLIP
0940110402
€ 7.00
8
3481043401
ref: 8
GAUGE ASSEMBLY,FUEL LEVEL
€ 76.50
9
3482549001
ref: 9
GASKET,FUEL LEVEL GAUGE (NAS)
3482549001
€ 22.50
10
0211205106
ref: 10
SCREW 5X10
€ 2.00
11
0832121056
ref: 11
LOCK WASHER
0832121056
€ 3.00
12
0110705106
ref: 12
BOLT
€ 1.50
13
0832121056
ref: 13
LOCK WASHER
0832121056
€ 3.00
14
3488534500
ref: 14
PLATE,FUEL DRAIN
3488534500
€ 20.50
15
3488834500
ref: 15
GASKET (NAS)
3488834500
€ 8.50
16
0211205086
ref: 16
SCREW
€ 2.00
17
0832121056
ref: 17
LOCK WASHER
0832121056
€ 3.00
18
0934305165
ref: 18
HOSE,FUEL
0934305165
€ 13.00
19
0940108402
ref: 19
CLIP
0940108402
€ 1.50
