Buy Suzuki GSX Parts Online


OIL COOLER

GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

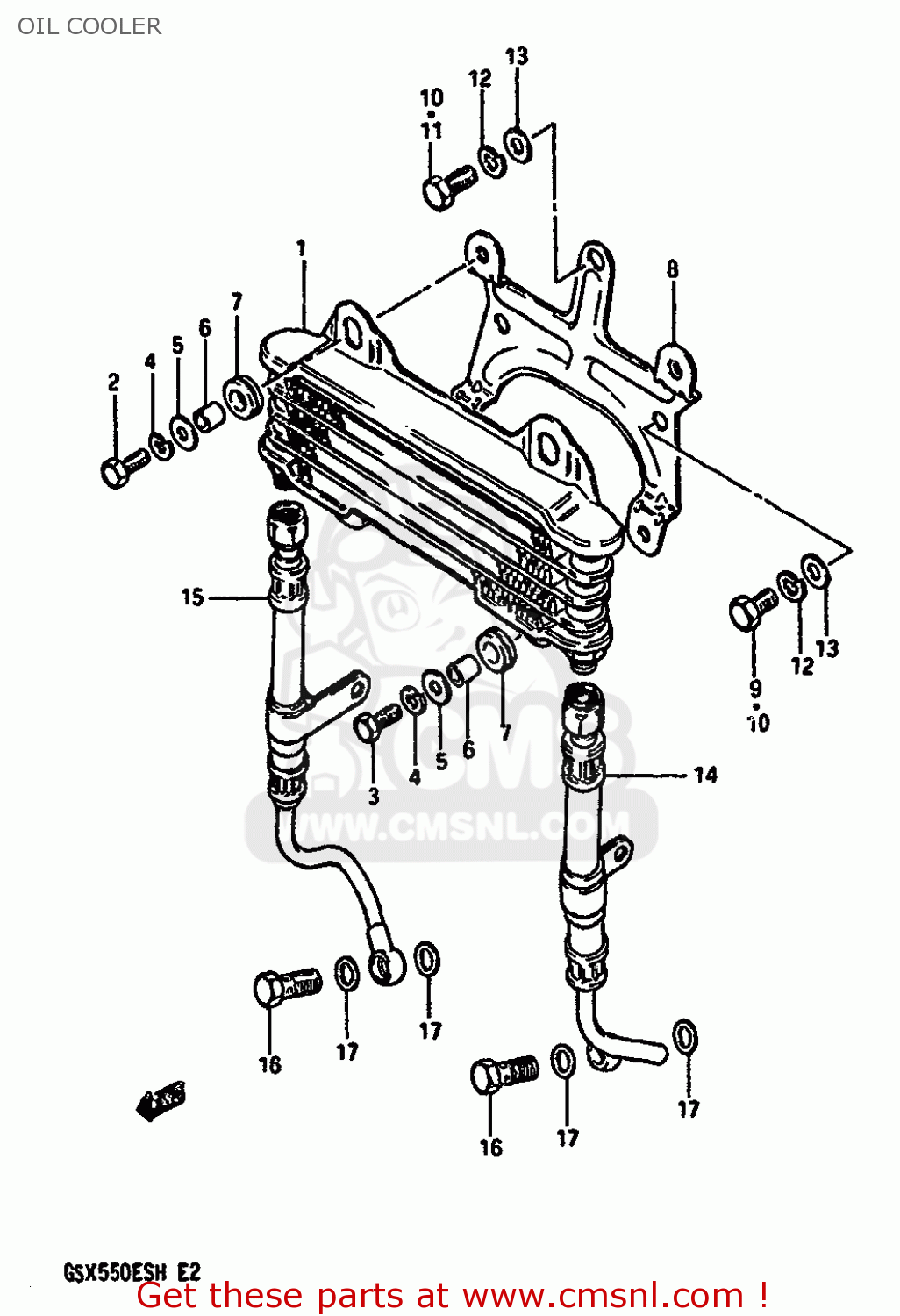

Oil cooler diagram GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

OIL COOLER GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
OIL COOLER GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
OIL COOLER GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
prices are in EUR
ref
part #
description
quantity
1
1660034310
ref: 1
COOLER ASSEMBLY,ENGINE OIL
1660034310
€ 373.00
2
0110706205
ref: 2
BOLT
0110706205
€ 2.00
3
0910006110
ref: 3
BOLT
€ 0.00
4
0832121064
ref: 4
WASHER,LOCK
0832121064
€ 2.00
5
0916006039
ref: 5
WASHER (6.5X18X1.6)
0916006039
€ 2.00
6
0918006030
ref: 6
SPACER (6.8X10X10)
0918006030
€ 2.00
7
0932010015
ref: 7
CUSHION
0932010015
€ 2.50
8
1662043400
ref: 8
BRACKET,OIL COOLER
€ 13.00
9
0110708165
ref: 9
GSX550EF/EG/ESH,GSX5
BOLT
€ 2.00
10
0110708165
ref: 10
GSX550ESF/EFF/EUF/ES
BOLT
€ 2.00
11
0110708205
ref: 11
GSX550EF/EG/ESH,GSX5
BOLT
€ 2.00
12
0832121084
ref: 12
WASHER,LOCK,8.
0832121084
€ 2.50
13
0832211084
ref: 13
WASHER
0832211084
€ 1.50
14
1646043400
ref: 14
HOSE,ENGINE OIL,LEFT
€ 105.00
15
1647043400
ref: 15
HOSE,ENGINE OIL,RIGHT
1647043400
€ 100.00
16
0936014002
ref: 16
BOLT UNION
0936014002
€ 20.50
17
0916814011
ref: 17
GASKET(14X20X1.5) (NAS)
0916814011
€ 2.00
