CYLINDER HEAD

GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

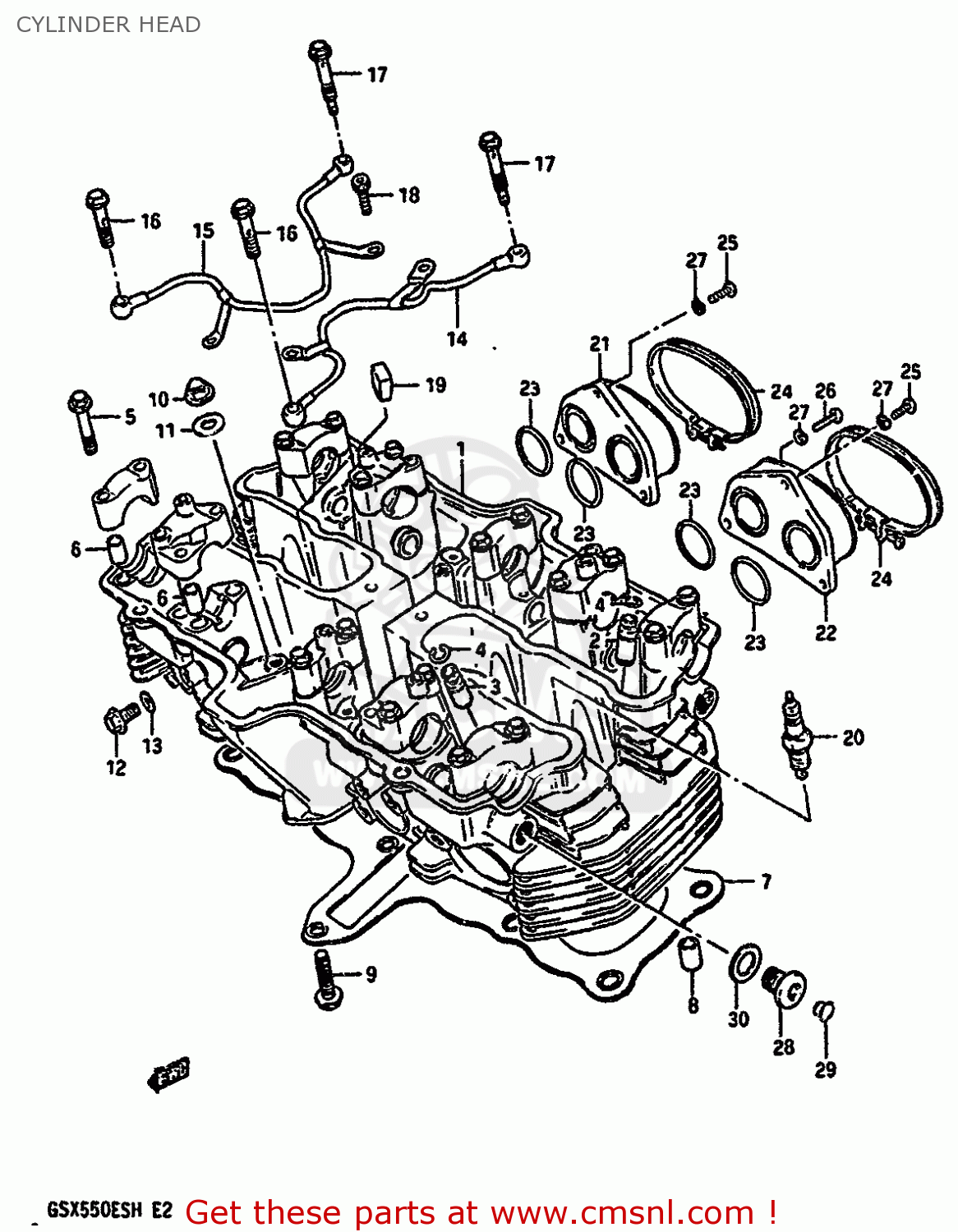

Cylinder head diagram GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

CYLINDER HEAD GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
CYLINDER HEAD GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
CYLINDER HEAD GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
prices are in EUR
ref
part #
description
quantity
1
1110043406
ref: 1
HEAD ASSEMBLY,CYLINDER
€ 1,165.00
2
1111543470
ref: 2
GUIDE,VALVE
1111543470
€ 43.00
3
1111643470
ref: 3
GUIDE,VALVE
1111643470
€ 43.00
4
0938110004
ref: 4
RING,SNAP
0938110004
€ 1.50
5
0910306026
ref: 5
BOLT(6X39)
0910306026
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
0920608001
€ 2.00
7
1114143403
ref: 7
GASKET,CYLINDER HEAD (NAS)
1114143403
€ 63.50
8
0421111189
ref: 8
PIN
0421111189
€ 2.00
9
0151706254
ref: 9
BOLT
€ 2.50
10
0915908047
ref: 10
NUT
€ 7.00
11
0916808013
ref: 11
GASKET(8.5X20X2.3) (NAS)
0916808013
€ 4.50
12
0151706105
ref: 12
BOLT
€ 2.50
13
0916806018
ref: 13
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
14
1296143403
ref: 14
PIPE,OIL CYLINDER HEAD
€ 26.50
15
1296243403
ref: 15
PIPE,OIL CYLINDER HEAD
€ 24.50
16
0936006013
ref: 16
UNION
0936006013
€ 7.00
17
1296543400
ref: 17
BOLT,UNION
1296543400
€ 21.00
18
0711006168
ref: 18
BOLT, 6X16
€ 3.00
19
1125225000
ref: 19
PAD,CYLINDER
1125225000
€ 5.00
20-1
0948200184
ref: 20-1
SPARK PLUG D9EA
€ 6.50
20-2
0948200185
ref: 20-2
SPARK PLUG X27ES-U
€ 0.00
20-3
0948200221
ref: 20-3
E2,E4,E6,E17,E18,E21
PLUG,SPARK(DR8ES)
0948200221
€ 5.50
20-4
0948200224
ref: 20-4
E2,E4,E6,E17,E18,E21
PLUG,SPARK(X27ESR-U)
0948200224
€ 9.50
21
1311043400
ref: 21
PIPE,INTAKE,R
1311043400
€ 53.50
22
1312043400
ref: 22
PIPE,INTAKE,L
1312043400
€ 52.50
23
0928030004
ref: 23
O-RING (D:2.4 ID:29.7)
0928030004
€ 10.50
24
0940248401
ref: 24
CLAMP
€ 6.50
25
0211206164
ref: 25
SCREW
€ 2.00
26
0211206205
ref: 26
SCREW
€ 2.00
27
0832121064
ref: 27
WASHER,LOCK
0832121064
€ 2.00
28
0924814004
ref: 28
PLUG
0924814004
€ 5.00
29
0925008012
ref: 29
CAP(OD:12)
0925008012
€ 2.00
30
0916814004
ref: 30
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
