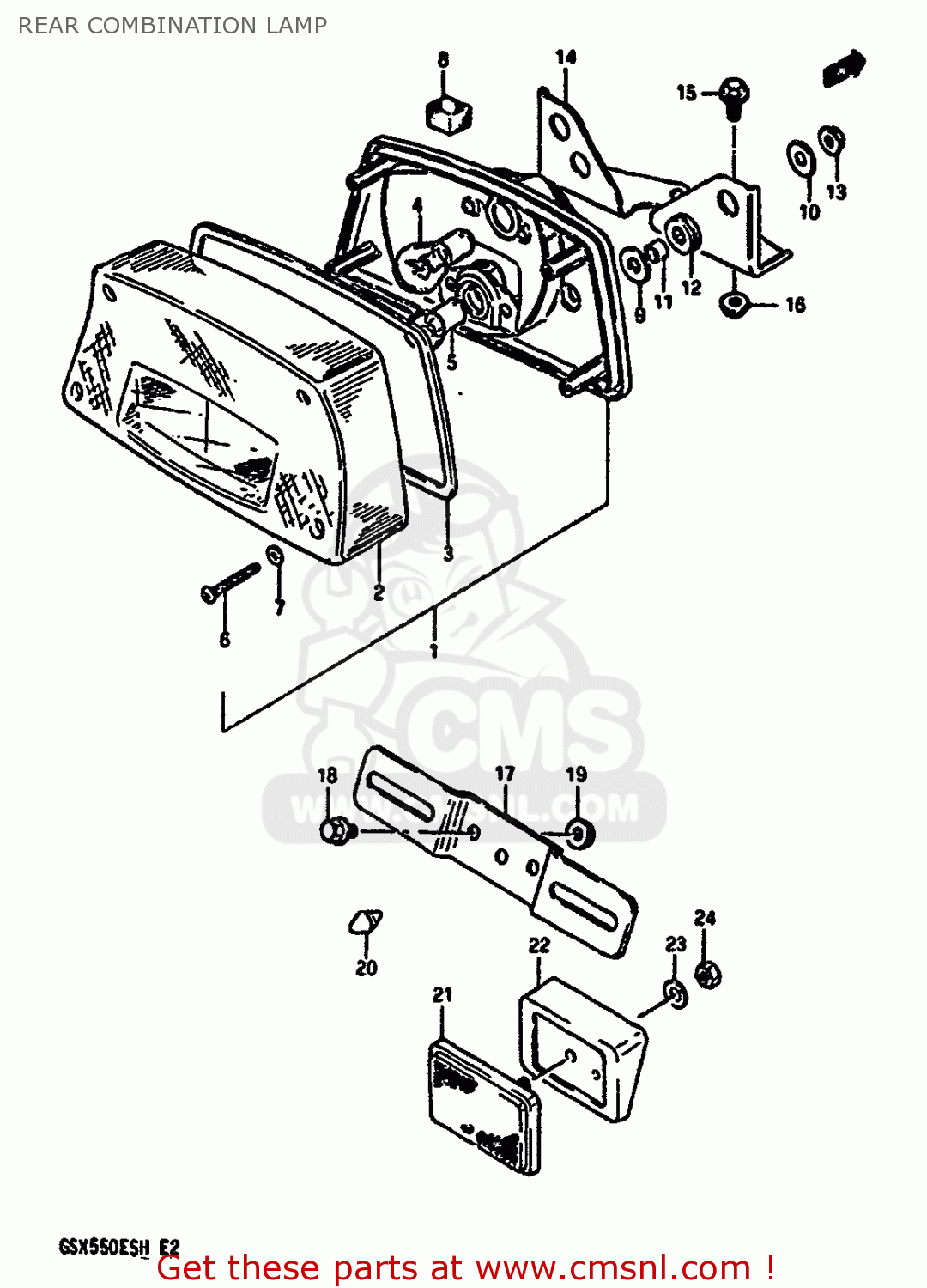

REAR COMBINATION LAMP

ref

part #

description

quantity

1-1

3571043411
ref: 1-1
E1,E6,E24

LAMP ASSY,REAR COMBINATION

€ 0.00

1-2

3571043482
ref: 1-2
E2 ~F.NO.115132

LAMP ASSY, REAR COMBINATION

€ 129.50

1-3

3571043440
ref: 1-3
E2 F.NO.115133~

LAMP ASSY,REAR COMBINATION

€ 129.50

1-4

3571043482
ref: 1-4
E4,E18,E21,E25

LAMP ASSY, REAR COMBINATION

€ 129.50

1-5

3571043471
ref: 1-5
MODEL F E17

LAMP ASSY,REAR COMBINATION

€ 118.50

1-6

3571043440
ref: 1-6
MODEL G/H E17

LAMP ASSY,REAR COMBINATION

€ 129.50

1-7

3571043491
ref: 1-7
E22

LAMP ASSY,REAR COMBINATION

€ 129.50

1-8

3571043451
ref: 1-8
E26

LAMP ASSY, REAR COMBINATION

€ 0.00

1-9

3571043462
ref: 1-9
E34,E53

LAMP ASSY,REAR COMBINATION

€ 129.50

2-1

3571243411
ref: 2-1

LENS

€ 49.50

2-2

3571243411
ref: 2-2
E2 ~F.NO.115132

LENS

€ 49.50

2-3

3571243440
ref: 2-3
E2 F.NO.115133~

LENS

€ 49.50

2-4

3571243470
ref: 2-4
MODEL F E17

LENS

€ 0.00

2-5

3571243440
ref: 2-5
MODEL G/H E17

LENS

€ 49.50

2-6

3571243461
ref: 2-6
E34,E53

LENS

€ 0.00

3

3571343410
ref: 3

GASKET

€ 4.00

4-1

0947112084
ref: 4-1
E1,E6,E24

BULB(12V23/8W,TOKAI DENSO)

€ 6.00

4-2

0947112083
ref: 4-2
E2,E4,E17,E18,E21,E2

BULB(12V21/5W)

€ 6.00

5-1

0947112037
ref: 5-1
E1,E6,E24

BULB

€ 7.00

5-2

0947112059
ref: 5-2
E2,E17 ~F.NO.115132

BULB

€ 4.00

5-3

0947112062
ref: 5-3
E2,E17 F.NO.115133~

BULB(12V10W,TOKAI DENSO)

€ 0.00

5-4

0947112059
ref: 5-4
E4,E18,E21,E25,E26,E

BULB

€ 4.00

5-5

0947112062
ref: 5-5
E22

BULB(12V10W,TOKAI DENSO)

€ 0.00

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

3573306400
ref: 8

CUSHION,REAR COMBINATION LAMP

€ 2.50

9

0916006020
ref: 9

WASHER

€ 2.00

10

0916006012
ref: 10

WASHER(6,5X22X1.6)

€ 2.00

11

3576626470
ref: 11

SPACER

€ 2.00

12

3576535300
ref: 12

CUSHION,RR COMBINATION

€ 3.00

13

0831626066
ref: 13

NUT

€ 2.00

14

3572643401
ref: 14

BRACKET,REAR COMBINATION LAMP

€ 8.00

15

0151706166
ref: 15

BOLT

€ 2.50

16

0831626066
ref: 16

NUT

€ 2.00

17

3592744110
ref: 17

PLATE,RR LICENSE

€ 22.50

18

0151706125
ref: 18

BOLT 6X12

€ 2.50

19

0831626066
ref: 19

NUT

€ 2.00

20

0932106023
ref: 20

CUSHION

€ 2.00

21-1

3597049330
ref: 21-1
MODEL F E17

REFLEX REFLECTOR,RR

€ 16.50

21-2

3597001A40
ref: 21-2
MODEL F E17

REFLEX REFLECTOR, REAR (RR018)

€ 0.00

22

3597743470
ref: 22
MODEL F E17

SPACER

€ 0.00

23

0916005013
ref: 23
MODEL F E17

WASHER(5.2X16X1)

€ 1.50

24

0831011056
ref: 24
MODEL F E17

NUT

€ 2.50
