TURN SIGNAL LAMP (E18,E21,E22,E25,E26)

GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

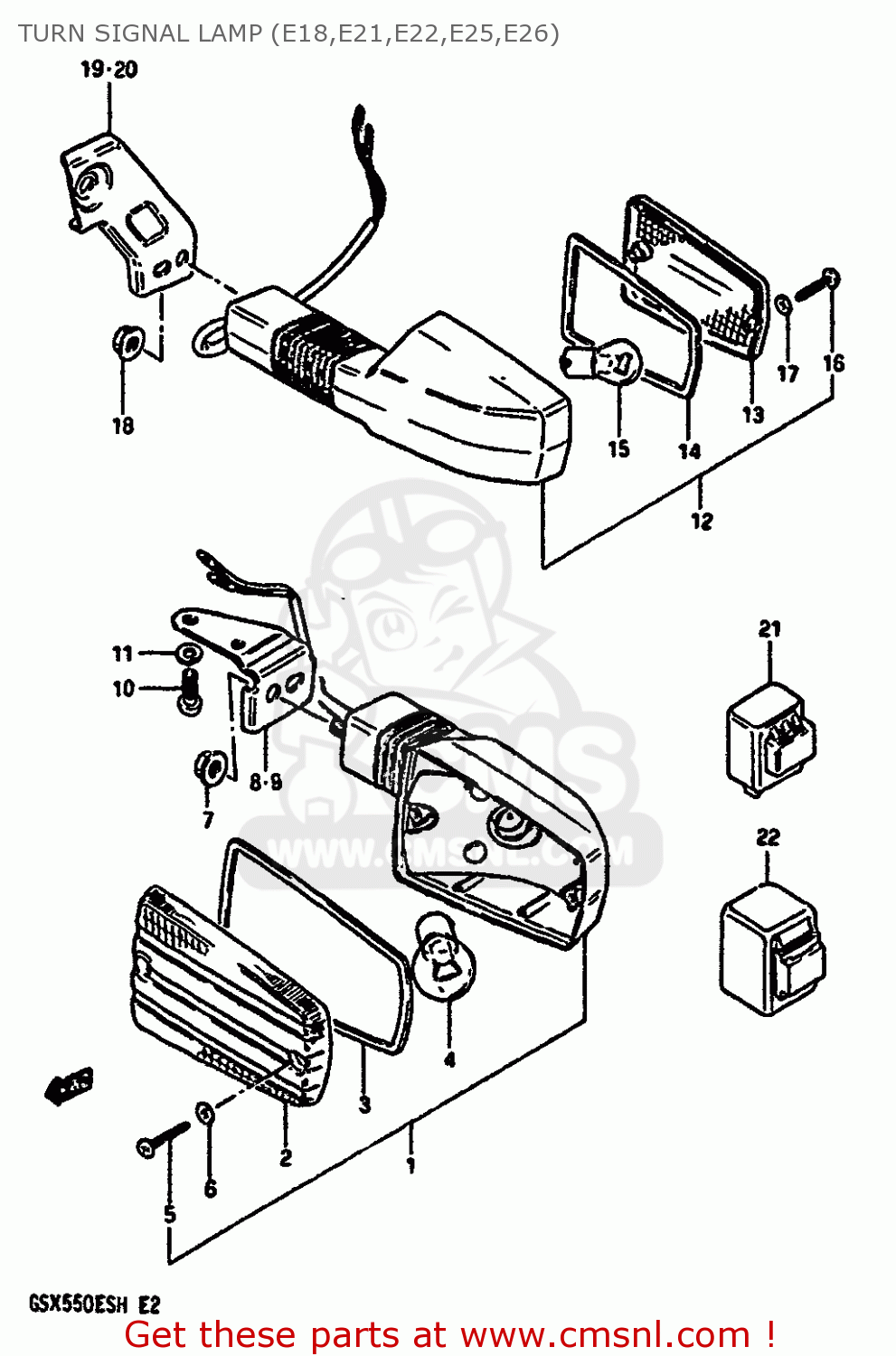

Turn signal lamp (e18,e21,e22,e25,e26) diagram GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E

TURN SIGNAL LAMP (E18,E21,E22,E25,E26) GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
TURN SIGNAL LAMP (E18,E21,E22,E25,E26) GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
TURN SIGNAL LAMP (E18,E21,E22,E25,E26) GSX550ES 1985 (F) (E01 E02 E04 E06 E17 E21 E22 E24 E25 E26 E34 E
prices are in EUR
ref
part #
description
quantity
1-1
3560143481
ref: 1-1
GSX550EF/EUF/EG/EUG/
LAMP ASSY, FRONT TURN SIGNAL
3560143481
€ 54.00
1-2
3560143421
ref: 1-2
GSX550ESF/EFF/ESG/EF
LAMP ASSY, FRONT TURN SIGNAL
3560143421
€ 98.50
2
3561243410
ref: 2
LENS
3561243410
€ 11.00
3
3561343410
ref: 3
GASKET (NAS)
3561343410
€ 3.50
4
0947112045
ref: 4
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
5
0321104208
ref: 5
SCREW
0321104208
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0831626085
ref: 7
NUT M8
0831626085
€ 1.50
8
3567143400
ref: 8
GSX550ESF/EFF/ESG/EF
BRACKET,FRONT TURN SIGNAL
3567143400
€ 5.00
9
3568143400
ref: 9
GSX550ESF/EFF/ESG/EF
BRACKET,FRONT TURN SIGNAL
3568143400
€ 5.50
10
0211206167
ref: 10
SCREW
0211206167
€ 2.50
11
0832121067
ref: 11
WASHER,LOCK
0832121067
€ 2.50
12-1
3560343421
ref: 12-1
E18,E21,E25,E26
LAMP ASSY, REAR TURN SIGNAL
3560343421
€ 75.00
12-2
3560343481
ref: 12-2
E22
LAMP ASSY, REAR TURN SIGNAL
3560343481
€ 79.00
13
3565243420
ref: 13
LENS,TURN SIGN
3565243420
€ 11.50
14
3561343410
ref: 14
GASKET (NAS)
3561343410
€ 3.50
15
0947112045
ref: 15
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
16
0321104208
ref: 16
SCREW
0321104208
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
3562743010
€ 2.00
18
0831626088
ref: 18
NUT
0831626088
€ 3.00
19
3562143400
ref: 19
BRACKET,REAR TURN SIGNAL
€ 7.50
20
3564143400
ref: 20
BRACKET,REAR TURN SIGNAL
€ 7.50
21
3861031310
ref: 21
E18,E21,E25,E26
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
22
3861045091
ref: 22
E22
RELAY ASSY,TUR
€ 67.50
