CHAIN LOCK

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

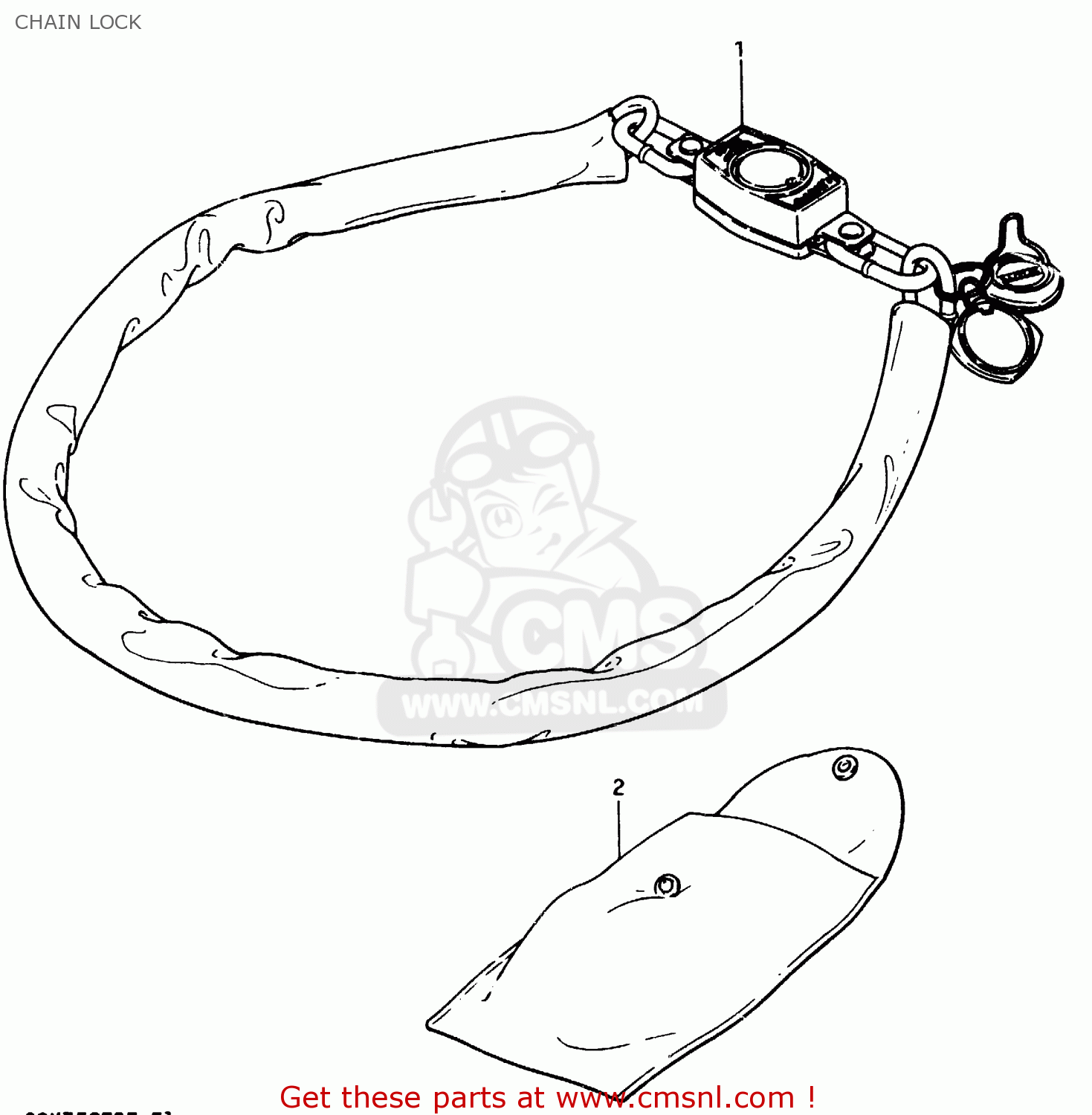

Chain lock diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

CHAIN LOCK GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

CHAIN LOCK GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

prices are in EUR

ref

part #

description

quantity

1

9414015501KEY
ref: 1

CHAIN LOCK ASSY

€ 53.50

2

9414131301
ref: 2

BAG,CHAIN LOCK

€ 0.00
