STARTER CLUTCH

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

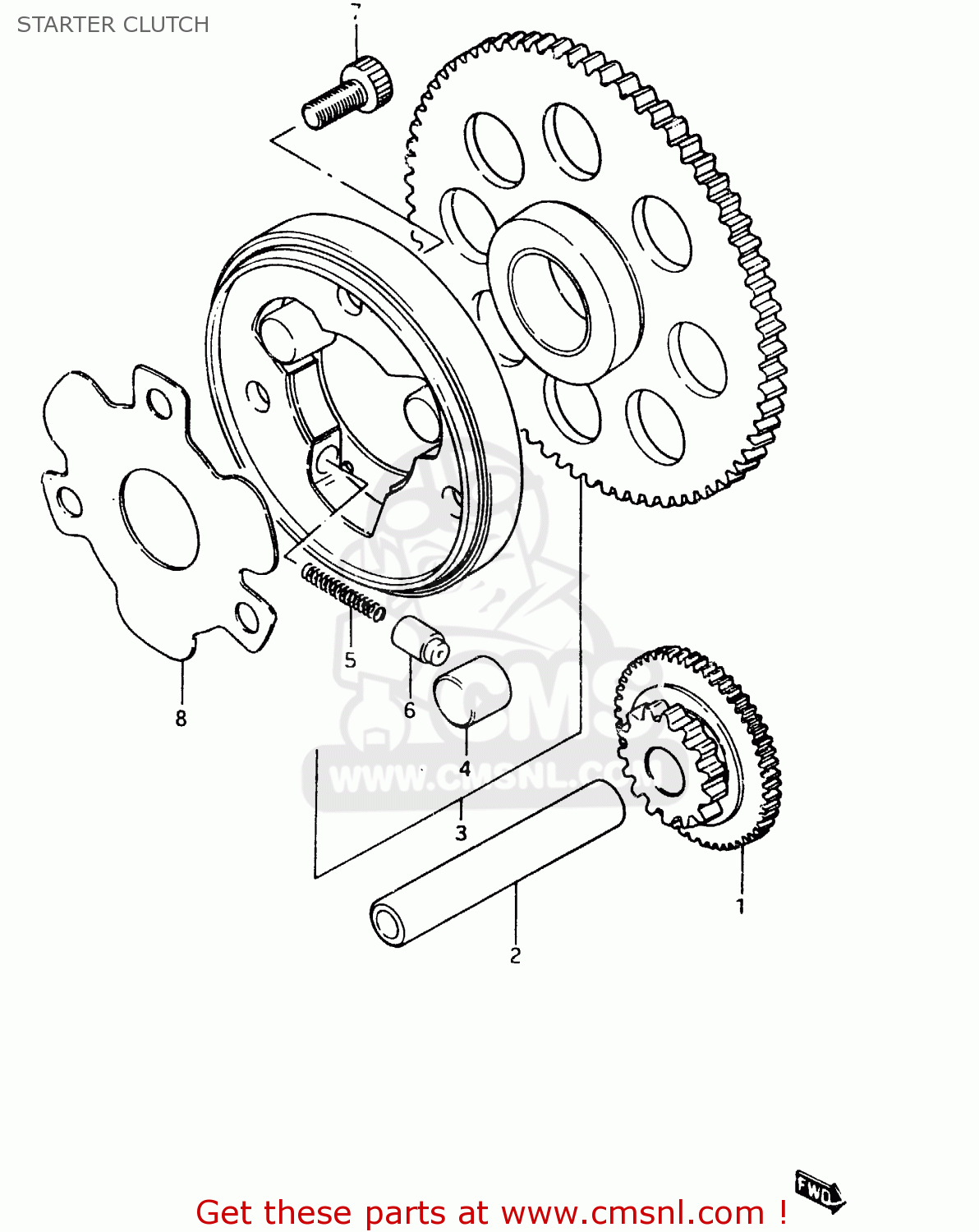

Starter clutch diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

STARTER CLUTCH GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

STARTER CLUTCH GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

prices are in EUR

ref

part #

description

quantity

1

1261131301
ref: 1

GEAR,STARTER IDLE

€ 80.00

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

1260031840
ref: 3

CLUTCH SET,STARTER

€ 152.50

4

0926114001
ref: 4

PIN(14X13)

€ 5.00

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

0910608043
ref: 7

BOLT

€ 3.00

8

1264909301
ref: 8

SHIM,STARTER CLUTCH HUB

€ 8.50
