REAR WHEEL (MODEL D E6,E24,E27 F.NO.110576~/GSX750ESE/EFE E6,E24

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

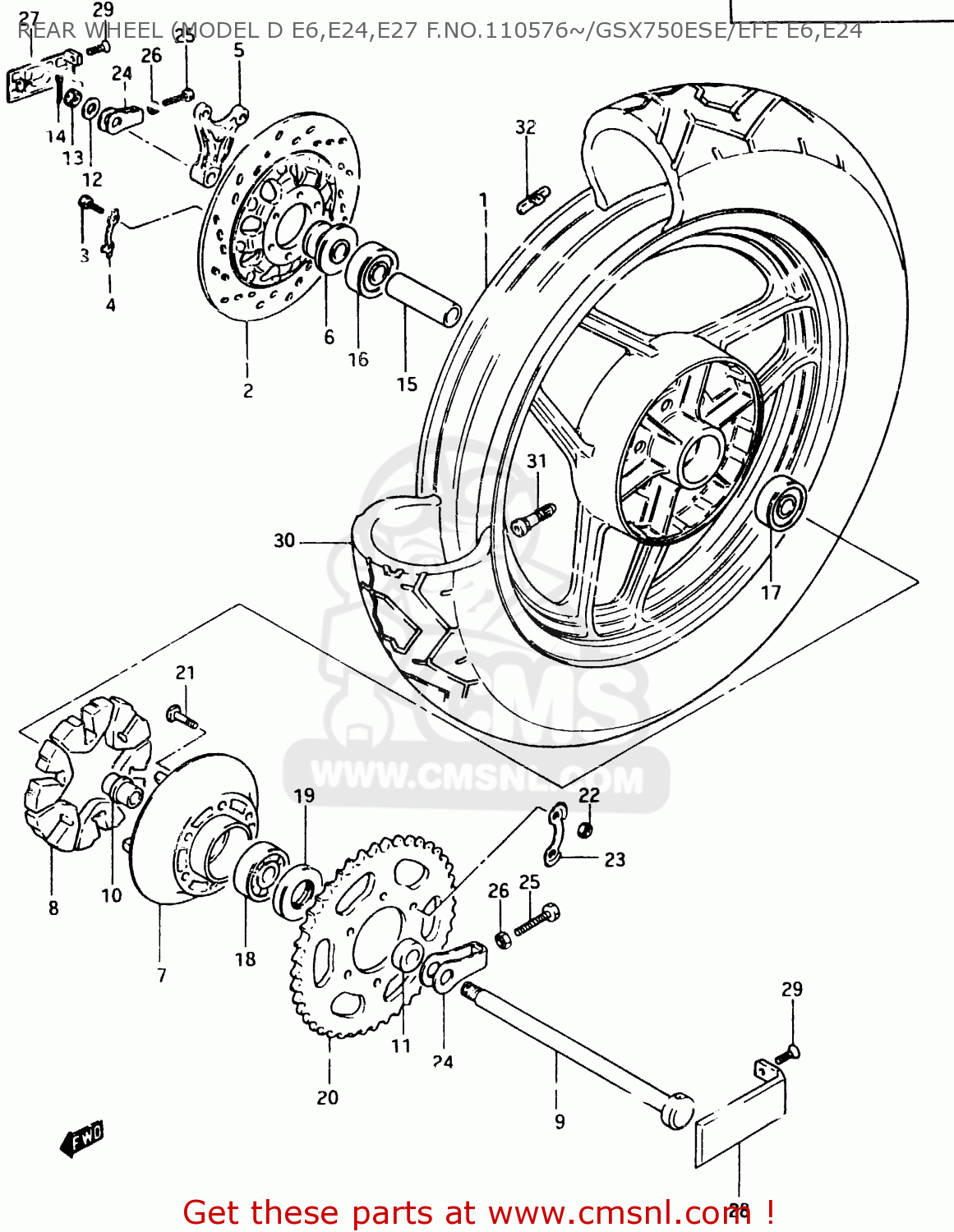

Rear wheel (model d e6,e24,e27 f.no.110576~/gsx750ese/efe e6,e24 diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

REAR WHEEL (MODEL D E6,E24,E27 F.NO.110576~/GSX750ESE/EFE E6,E24 GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
REAR WHEEL (MODEL D E6,E24,E27 F.NO.110576~/GSX750ESE/EFE E6,E24 GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
REAR WHEEL (MODEL D E6,E24,E27 F.NO.110576~/GSX750ESE/EFE E6,E24 GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
prices are in EUR
ref
part #
description
quantity
1
6411131340291
ref: 1
MODEL D E6,E24,E27
WHEEL, REAR (MT3.00X18)(BLACK)
€ 0.00
1
641113134019T
ref: 1
GSX750ESE/EFE E6,E24
WHEEL, REAR (MT3.00X18)(GOLD)
€ 0.00
2
6921031300
ref: 2
DISC,BRAKE
6921031300
€ 258.00
3
0910008094
ref: 3
BOLT(8X30)
0910008094
€ 2.50
4
0916908016
ref: 4
WASHER
0916908016
€ 3.50
5
6972131300
ref: 5
BRACKET,REAR CALIPER
€ 34.00
6
6474031300
ref: 6
SPACER,REAR AXLE
6474031300
€ 9.00
7
6461131001
ref: 7
DRUM,REAR SPROCKET MOUNT
€ 140.00
8
6465131000
ref: 8
ABSORBER,REAR HUB SHOCK
6465131000
€ 9.50
9
6471131300
ref: 9
AXLE,REAR
6471131300
€ 33.50
10
6473331300
ref: 10
RETAINER,RR SPROCKET DRUM
6473331300
€ 16.50
11
0918017066
ref: 11
SPACER(17X33X11.3)
0918017066
€ 6.00
12
0832211168
ref: 12
WASHER
0832211168
€ 2.00
13
0831441168
ref: 13
NUT
0831441168
€ 4.50
14
0411140308
ref: 14
PIN,COTTER
0411140308
€ 1.50
15
0918017067
ref: 15
SPACER(17.5X25X88)
0918017067
€ 13.50
16
0813363037
ref: 16
BEARING
0813363037
€ 28.50
17
0815363037
ref: 17
BEARING
0815363037
€ 19.50
18
0811363050
ref: 18
BEARING
0811363050
€ 21.50
19
0928533001
ref: 19
SEAL,OIL(33X62X7)
0928533001
€ 20.00
20
6451147620
ref: 20
SPROCKET,REAR (NT:45)
6451147620
€ 48.00
21
0911910002
ref: 21
BOLT
0911910002
€ 3.50
22
0914010026
ref: 22
NUT
0914010026
€ 2.00
23
0916910007
ref: 23
WASHER
0916910007
€ 7.50
24
6141031300
ref: 24
ADJUSTER,CHAIN
6141031300
€ 9.50
25
0910408018
ref: 25
BOLT 8X50
0910408018
€ 3.00
26
0831012088
ref: 26
NUT
0831012088
€ 2.00
27
6144131300
ref: 27
COVER,CHAIN ADJUSTER,R
6144131300
€ 29.00
28
6145131300
ref: 28
COVER,REAR AXLE,LEFT
6145131300
€ 28.50
29
0213205167
ref: 29
SCREW 5X16
0213205167
€ 2.00
30
6510031370
ref: 30
BS
TIRE, REAR (130/80V18)
€ 0.00
31
4313075150
ref: 31
VALVE,TIRE
€ 14.50
32
5541145100
ref: 32
MODEL D E6,E24,E27
BALANCER,WHEEL
5541145100
€ 7.00
32
5541245100
ref: 32
MODEL D E6,E24,E27
BALANCER,WHEEL
5541245100
€ 4.00
32
5541345100
ref: 32
MODEL D E6,E24,E27
BALANCER,WHEEL
€ 6.50
32
5541100A0019T
ref: 32
GSX750ESE/EFE E6,E24
BALANCER,WHEEL
€ 6.50
32
5541200A0019T
ref: 32
GSX750ESE/EFE E6,E24
BALANCER,WHEEL
€ 7.00
32
5541300A0019T
ref: 32
GSX750ESE/EFE E6,E24
BALANCER,WHEEL
€ 4.00
