CYLINDER HEAD COVER

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

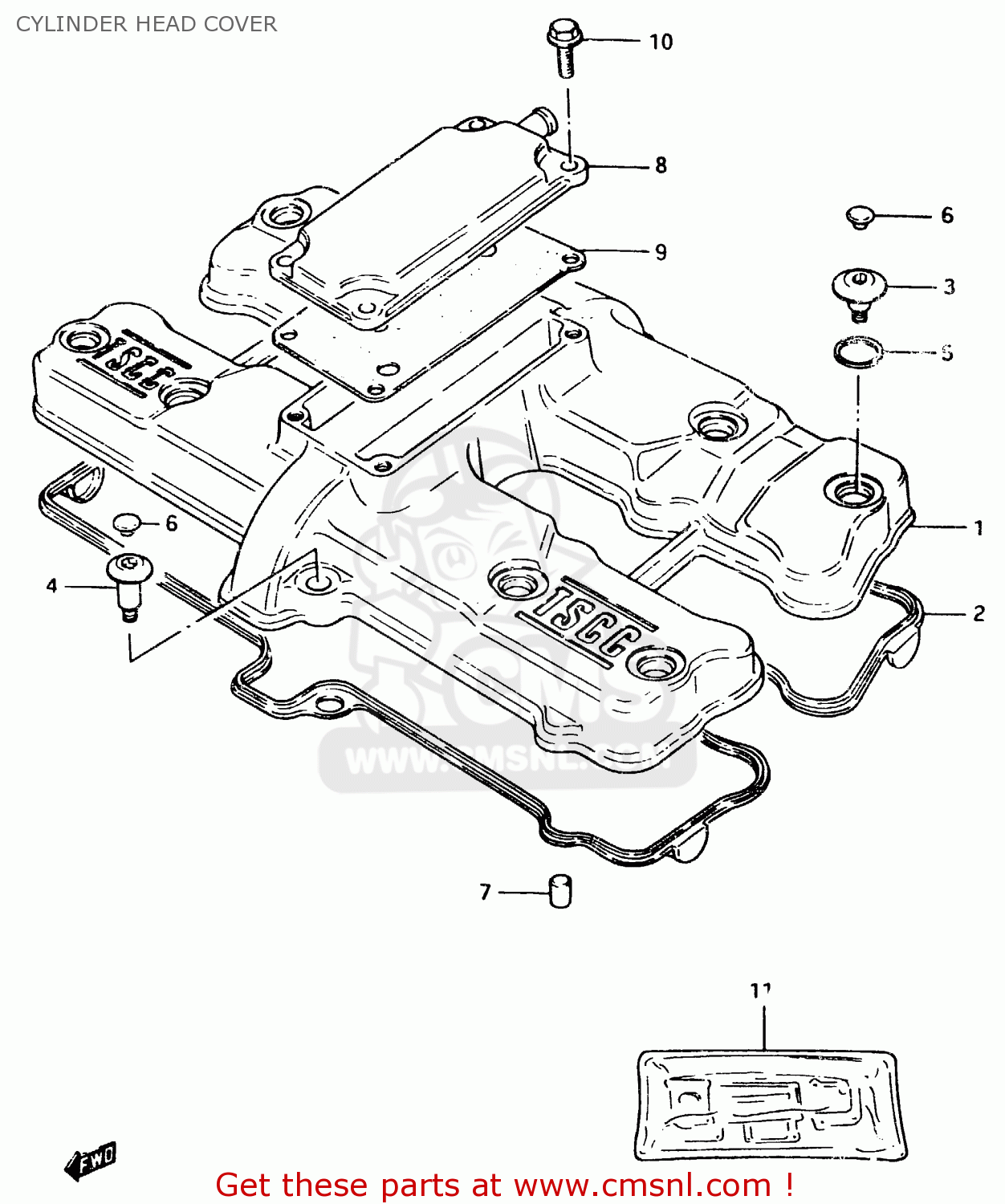

Cylinder head cover diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

CYLINDER HEAD COVER GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
CYLINDER HEAD COVER GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
CYLINDER HEAD COVER GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
prices are in EUR
ref
part #
description
quantity
1
1117131304
ref: 1
MODEL D
COVER,CYLINDER HEAD
€ 162.50
1
1117131310
ref: 1
MODEL E
COVER, CYLINDER HEAD
€ 162.50
2
1117331302
ref: 2
GASKET,HEAD COVER (NAS)
1117331302
€ 37.00
3
0910607001
ref: 3
BOLT(7X5.5)
0910607001
€ 6.00
4
0910607002
ref: 4
BOLT(7X19)
0910607002
€ 7.00
5
0916111004
ref: 5
MODEL D
WASHER
€ 4.50
5
0916111006
ref: 5
MODEL E
WASHER
0916111006
€ 4.50
6
0925006008
ref: 6
CAP(OD:10)
0925006008
€ 3.00
7
0422108129
ref: 7
PIN
0422108129
€ 2.00
8
1117631301
ref: 8
MODEL D
COVER,BREATHER
1117631301
€ 31.50
8
1117631310
ref: 8
MODEL E
COVER,BREATHER
€ 31.50
9
1117731300
ref: 9
GASKET (MCA)
1117731300
€ 11.00
10
0151706208
ref: 10
MODEL D
BOLT,REAR
€ 2.50
10
0151706205
ref: 10
MODEL E
BOLT
€ 2.50
11
1140031862
ref: 11
OPT,MODEL D
GASKET SET
€ 169.00
11
1140031863
ref: 11
OPT,MODEL E ~E.NO.11
GASKET SET
€ 169.00
11
1140031870
ref: 11
OPT,MODEL E E.NO.118
GASKET SET
€ 180.50
11
1140031872
ref: 11
OPT,MODEL E E.NO.122
GASKET SET
€ 180.50
