COWLING (GSX750ESE)

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

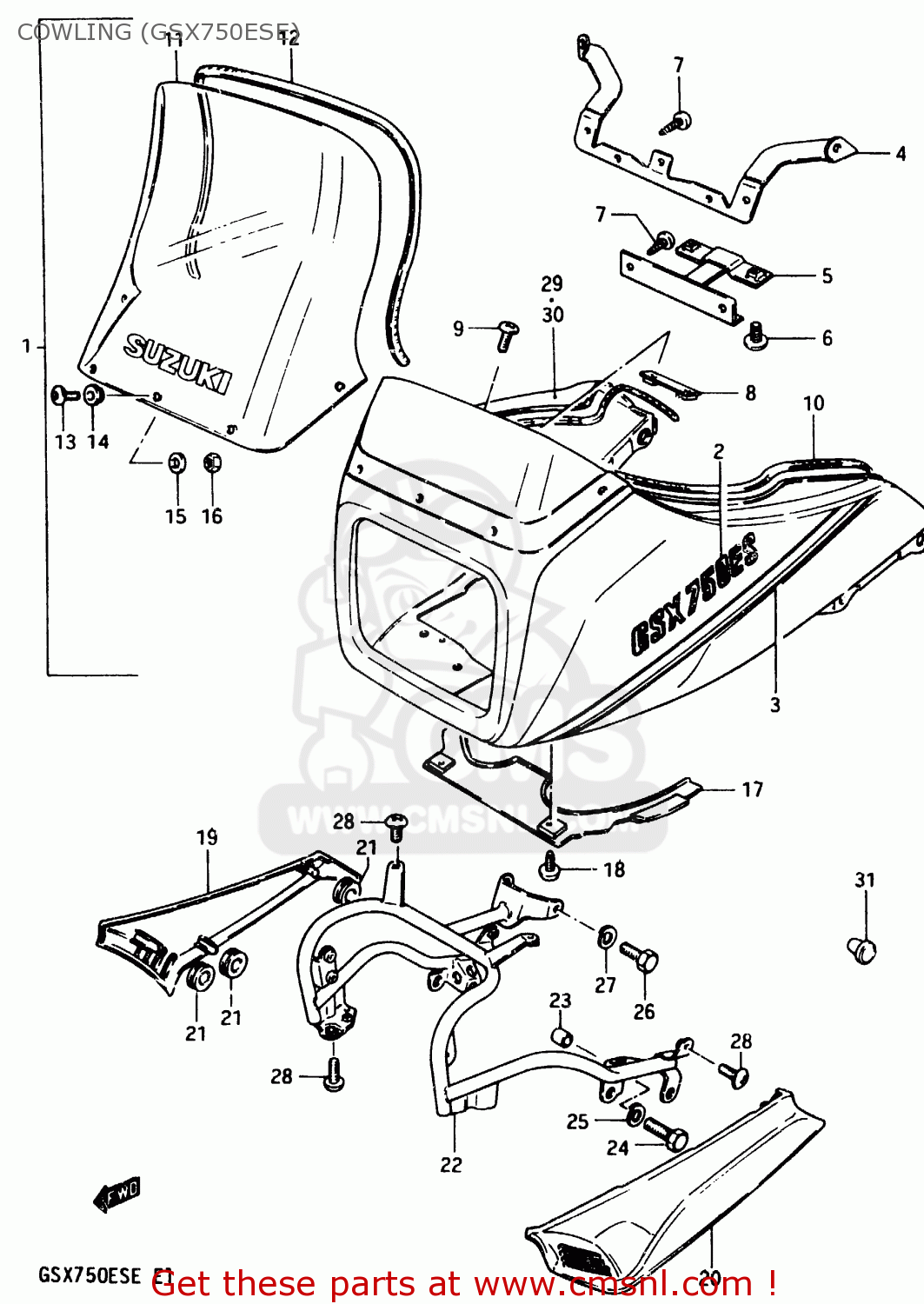

Cowling (gsx750ese) diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

COWLING (GSX750ESE) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

COWLING (GSX750ESE) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

prices are in EUR

ref

part #

description

quantity

1

944003136087P
ref: 1

COWLING ASSY (WHITE/RED)

€ 745.00

1

944003136091J
ref: 1

COWLING ASSY (WHITE/BLUE)

€ 745.00

2

681313132069L
ref: 2

EMBLEM

€ 10.00

3

681903132095J
ref: 3
FOR 87P

TAPE SET

€ 25.00

3

681903132093K
ref: 3
FOR 91J

TAPE SET

€ 14.50

4

9453031310
ref: 4

BRACE,COWLING,UPPER

€ 18.50

5

9454031310
ref: 5

BRACE,COWLING,LOWER

€ 10.00

6

0214205107
ref: 6

SCREW

€ 2.50

7

0321205105
ref: 7

SCREW

€ 1.00

8

9455031310
ref: 8

BRACKET

€ 2.50

9

0214205105
ref: 9

SCREW

€ 2.50

10

9459331310
ref: 10

MOLDING,FUEL TANK

€ 32.00

11

9461131330
ref: 11

WINDOW

€ 318.50

11

9461131340
ref: 11
E17

WINDOW,COWLING

€ 323.00

12

9463131310
ref: 12

MOLDING

€ 18.00

12

9463131320
ref: 12
E17

MOULDING

€ 14.00

13

0214205204
ref: 13

SCREW

€ 2.00

14

0932005008
ref: 14

CUSHION

€ 5.00

15

0832221058
ref: 15

WASHER

€ 2.50

16

0831011054
ref: 16

NUT

€ 2.00

17

9444531310
ref: 17

COVER,COWLING,LOWER

€ 12.00

18

0321205105
ref: 18

SCREW

€ 1.00

19

944313131016D
ref: 19

COVER,COWLING,RIGHT

€ 34.00

20

944413131016D
ref: 20

COVER,COWLING,LEFT

€ 62.00

21

0932008018
ref: 21

CUSHION

€ 4.00

22

9451031311
ref: 22

BRACE,COWLING

€ 98.00

23

9454949500
ref: 23

SPACER,COWLING

€ 10.50

24

0110708305
ref: 24

BOLT, LOWER

€ 2.50

25

0832121085
ref: 25

LOCK WASHER

€ 2.50

26

0110708165
ref: 26

BOLT

€ 2.00

27

0832121085
ref: 27

LOCK WASHER

€ 2.50

28

0214206125
ref: 28

SCREW 6X12

€ 2.00

29

6819731300291
ref: 29

TAPE,RIGHT

€ 8.50

30

6819831300291
ref: 30

TAPE,LEFT

€ 9.50

31

0925006005
ref: 31

PLUG(OD:12)

€ 2.00
