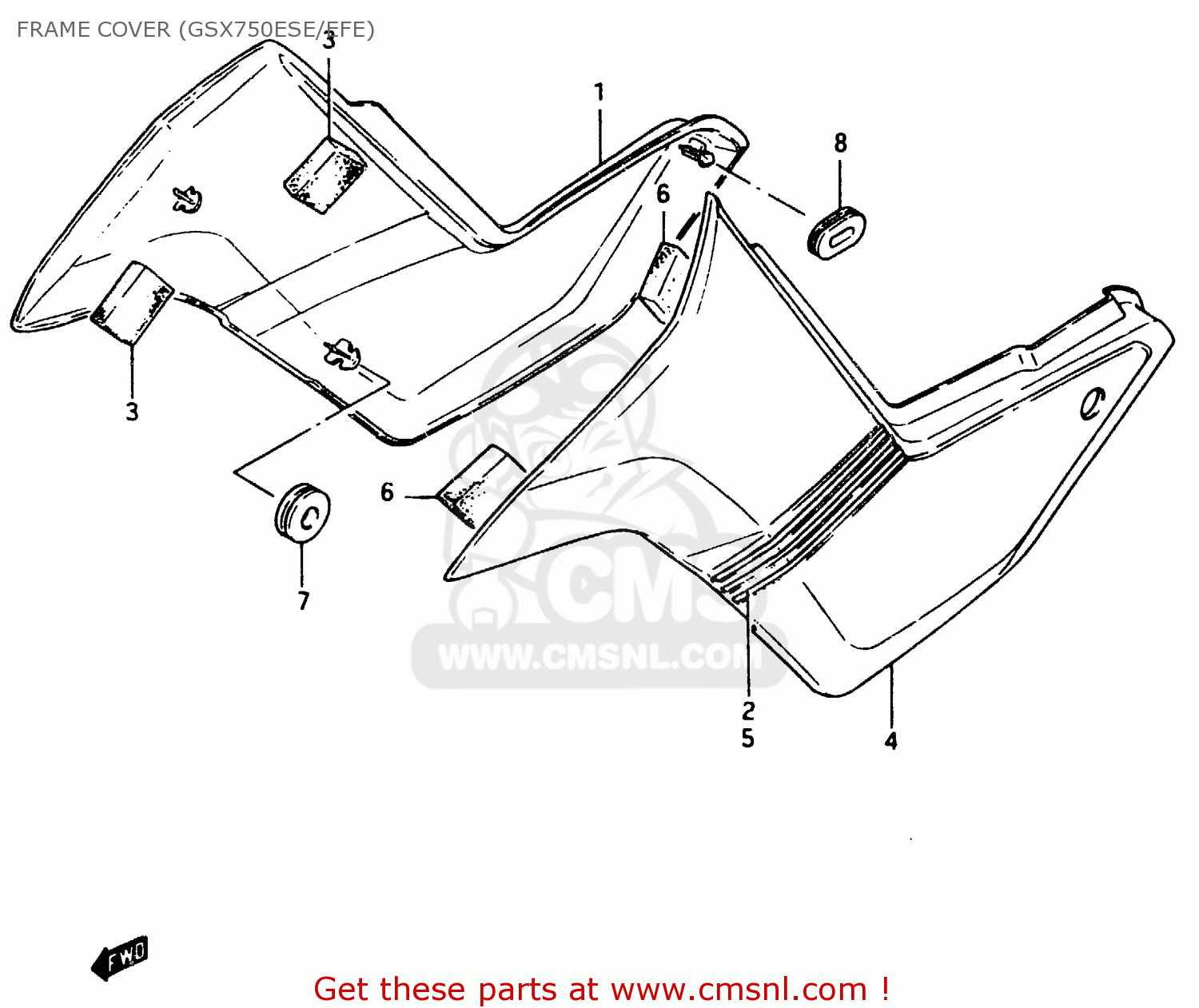

FRAME COVER (GSX750ESE/EFE)

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

Frame cover (gsx750ese/efe) diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

FRAME COVER (GSX750ESE/EFE) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

FRAME COVER (GSX750ESE/EFE) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

prices are in EUR

ref

part #

description

quantity

1

471103138000J
ref: 1

COVER,FRAME RH

€ 66.00

1

471103138004Y
ref: 1

COVER,FRAME RH

€ 66.00

2

6813431300291
ref: 2

DENT,FRAME COVER,RIGHT

€ 2.50

3

4556244410
ref: 3

CUSHION

€ 2.50

4

472103138000J
ref: 4

COVER, FRAME LH (RED)

€ 75.50

4

472103138004Y
ref: 4

COVER, FRAME LH

€ 75.50

5

6814431300291
ref: 5

DENT,FRAME COVER,LEFT

€ 3.00

6

4556244410
ref: 6

CUSHION

€ 2.50

7

0932008018
ref: 7

CUSHION

€ 4.00

8

0932908003
ref: 8

CUSHION

€ 3.50
