RIGHT HANDLE SWITCH

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

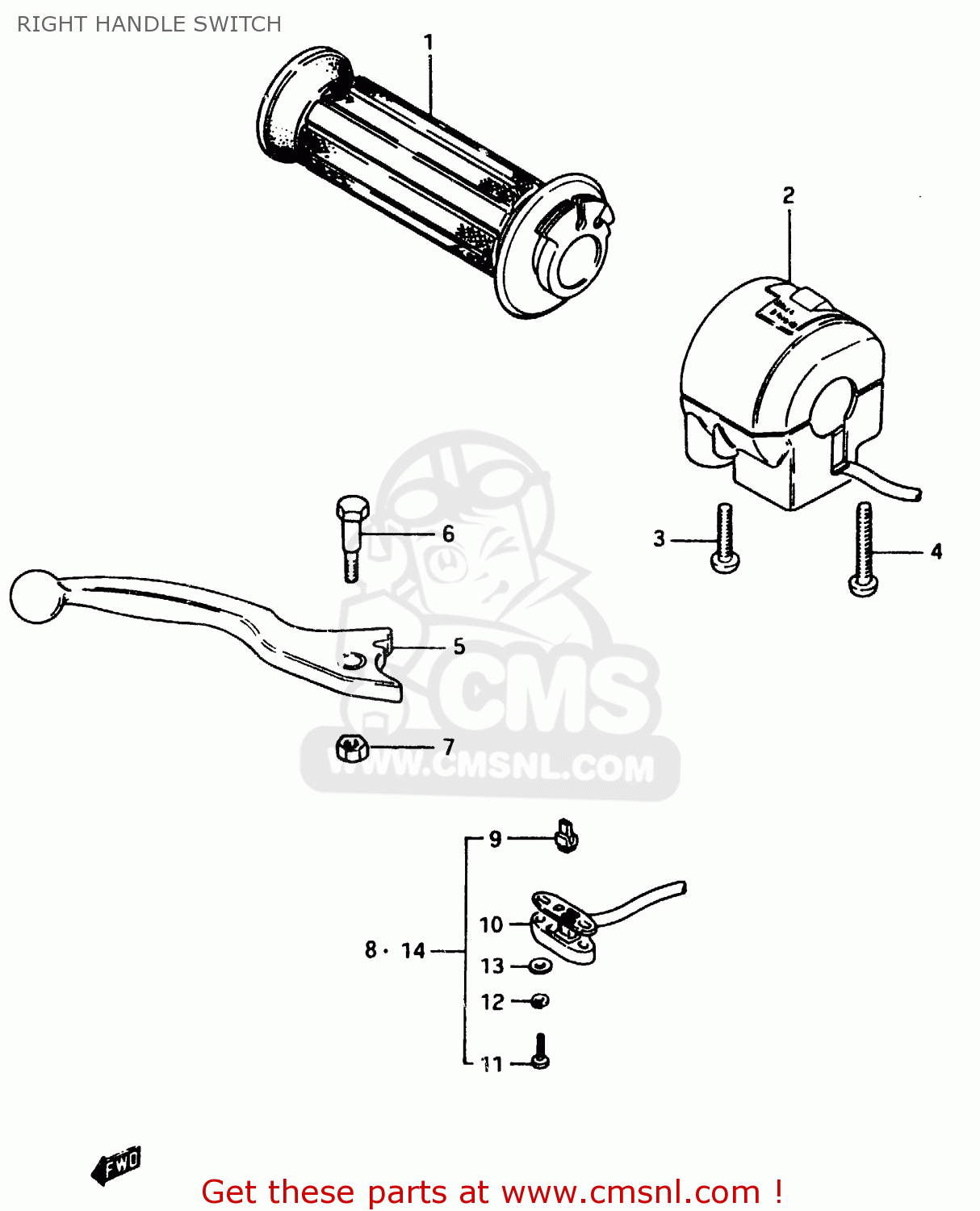

Right handle switch diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

RIGHT HANDLE SWITCH GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
RIGHT HANDLE SWITCH GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
RIGHT HANDLE SWITCH GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
prices are in EUR
ref
part #
description
quantity
1
5711049500
ref: 1
GRIP,THROTTLE
5711049500
€ 26.00
2
3720031310
ref: 2
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 86.50
2
3720031320
ref: 2
E4,E15,E16,E17,E18,E
SWITCH ASSY, HANDLE
€ 103.00
2
3720031340
ref: 2
E34,E53
SWITCH ASSY, HANDLE
3720031340
€ 144.50
2
3720015510
ref: 2
GSX750EE
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 103.00
2
3720015520
ref: 2
GSX750EE E2,E15,E16,
SWITCH ASSY, HANDLE
€ 103.00
2
3720015540
ref: 2
GSX750EE,E34
SWITCH ASSY, HANDLE
€ 0.00
3
0211205258
ref: 3
SCREW
0211205258
€ 2.00
4
0211205358
ref: 4
SCREW
€ 1.50
5
5742045500
ref: 5
LEVER,BRAKE
5742045500
€ 27.50
6
5743149100
ref: 6
BOLT,LEVER PIVOT
5743149100
€ 6.00
7
0831921068
ref: 7
NUT 6MM
0831921068
€ 2.00
8
5746049300
ref: 8
SWITCH ASSEMBLY
5746049300
€ 40.00
9
5746518601
ref: 9
CONTACT,SWITCH
5746518601
€ 4.50
10
5748133010
ref: 10
COVER,FR BK TERMINAL BASE
5748133010
€ 19.50
11
0912503105
ref: 11
SCREW
0912503105
€ 2.50
12
0832121038
ref: 12
LOCK WASHER
€ 1.50
13
0832221038
ref: 13
WASHER
0832221038
€ 2.00
14
5746033700
ref: 14
GSX750EE
SWITCH ASSY,STOP
5746033700
€ 38.50
