HEADLAMP (GSX750EE)

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

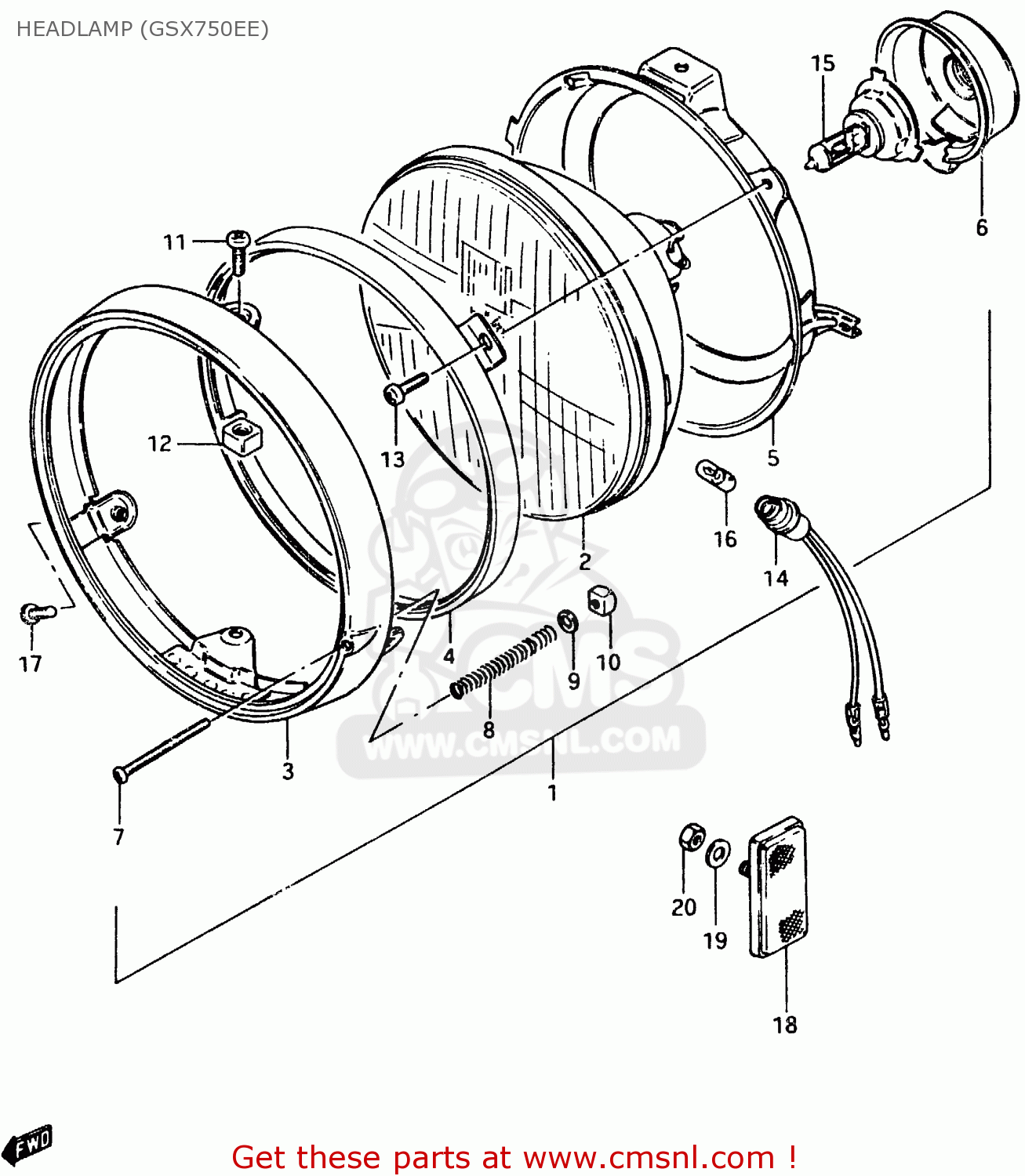

Headlamp (gsx750ee) diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

HEADLAMP (GSX750EE) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

HEADLAMP (GSX750EE) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

prices are in EUR

ref

part #

description

quantity

1

3510045930999
ref: 1
E1,E6,E24,E30

HEADLAMP ASSEMBLY

€ 140.50

1

3510045920999
ref: 1
E2

HEADLAMP ASSY

€ 0.00

1

3510045950999
ref: 1
E15,E16,E17,E18,E21,

HEADLAMP ASSY

€ 125.00

2

3512145930
ref: 2
E1,E6,E24,E30

LAMP UNIT

€ 151.00

2

3512145920
ref: 2
E2

UNIT

€ 164.50

2

3512145950
ref: 2
E15,E16,E17,E18,E21,

LAMP UNIT

€ 171.00

3

3511145900
ref: 3

RIM

€ 69.50

4

3512745900
ref: 4

RETAINER

€ 30.50

5

3513045900
ref: 5

RING,MOUNTING

€ 126.00

6

3517349200
ref: 6

COVER,HEADLAMP SOCKET

€ 12.50

7

3515145950
ref: 7

SCREW

€ 1.50

8

3515445900
ref: 8

SPRING,HEADLAMP ADJUST

€ 3.50

9

3515727630
ref: 9

WASHER

€ 2.50

10

3513545600
ref: 10

NUT

€ 3.00

11

0211205128
ref: 11

SCREW

€ 2.50

12

3513545900
ref: 12

NUT

€ 2.50

13

0211204088
ref: 13

SCREW

€ 1.50

14

3611845900
ref: 14
E2,E15,E16,E17,E18,E

SOCKET,PARKING

€ 13.00

15

0947112060
ref: 15
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

16

0947112063
ref: 16
E2,E15,E16,E17,E18,E

BULB(12V4W)

€ 6.00

17

0912705013
ref: 17

SCREW(5X12)

€ 2.50

18

3595031310
ref: 18
E39

REFLEX REFLECTOR, FRONT SIDE

€ 0.00

19

0832221055
ref: 19
E39

WASHER,5MM

€ 2.50

20

0831012055
ref: 20
E39

NUT ,5MM

€ 2.50

all assemblies
