HEADLAMP HOUSING - FRONT FENDER (GSX750EE)

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

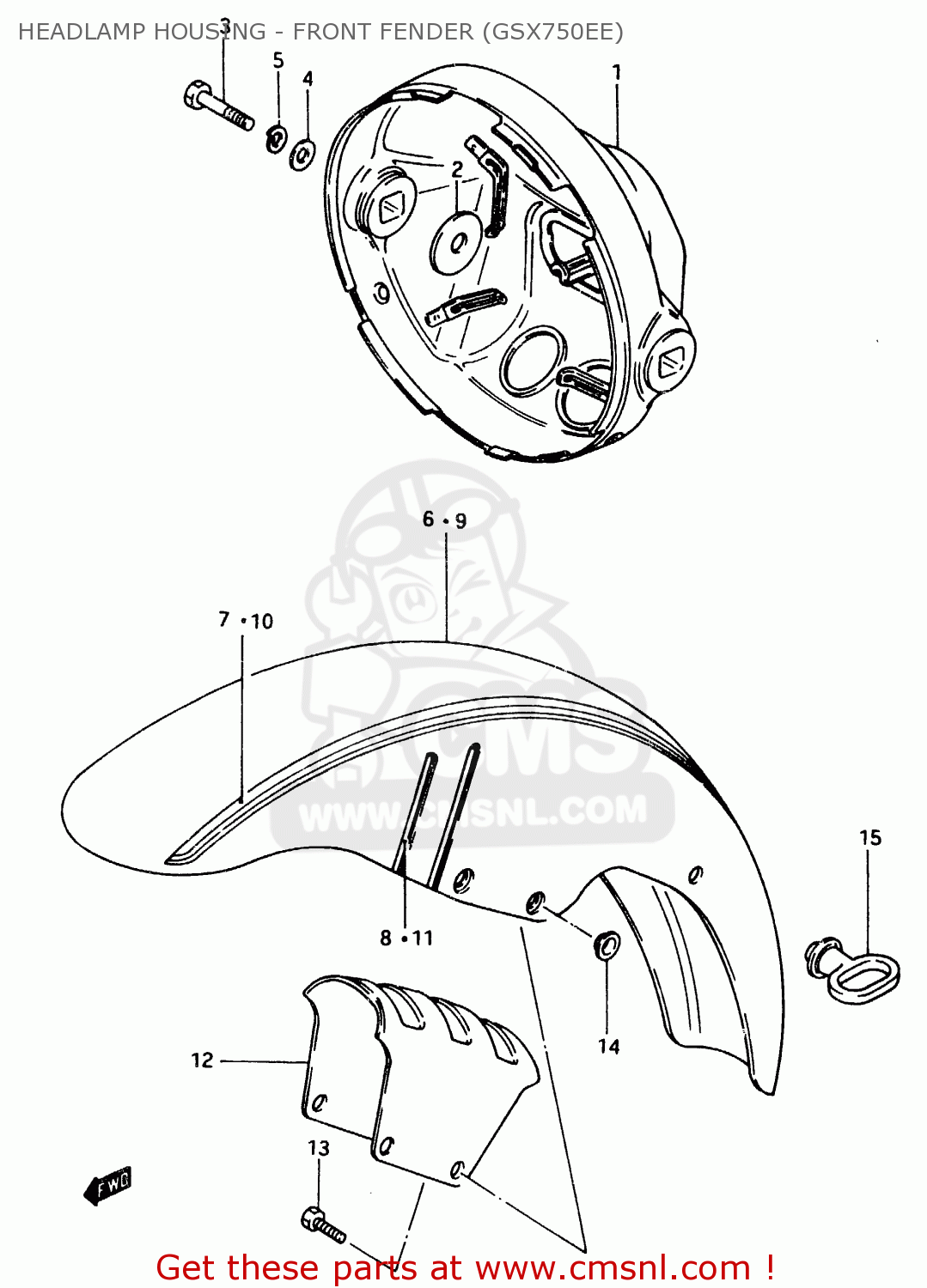

Headlamp housing - front fender (gsx750ee) diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

HEADLAMP HOUSING - FRONT FENDER (GSX750EE) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
HEADLAMP HOUSING - FRONT FENDER (GSX750EE) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
HEADLAMP HOUSING - FRONT FENDER (GSX750EE) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
prices are in EUR
ref
part #
description
quantity
1
5181045900019
ref: 1
HOUSING,HEADLAMP(BLACK)
5181045900019
€ 139.00
2
0916008002
ref: 2
WASHER (8.5X29X1.6)
0916008002
€ 2.00
3
0120408307
ref: 3
BOLT
0120408307
€ 2.50
4
0832211088
ref: 4
WASHER
0832211088
€ 2.00
5
0832121088
ref: 5
LOCK WASHER
0832121088
€ 2.00
6
531003130012F
ref: 6
FENDER, FRONT (BLUE)
€ 112.00
7
681503131073J
ref: 7
TAPE SET
€ 0.00
8
6815931300291
ref: 8
DENT,FRONT FENDER
€ 2.50
9
531003130017R
ref: 9
FENDER, FRONT (RED)
€ 0.00
10
681503131099F
ref: 10
TAPE SET
€ 0.00
11
6815931300291
ref: 11
DENT,FRONT FENDER
€ 2.50
12
5311431300
ref: 12
BRACE,FRONT FENDER
€ 17.00
13
0110708168
ref: 13
BOLT
€ 2.00
14
0916908032
ref: 14
WASHER
0916908032
€ 11.50
15
5862121203A
ref: 15
GUIDE,CABLE
€ 7.50
