CRANKCASE

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

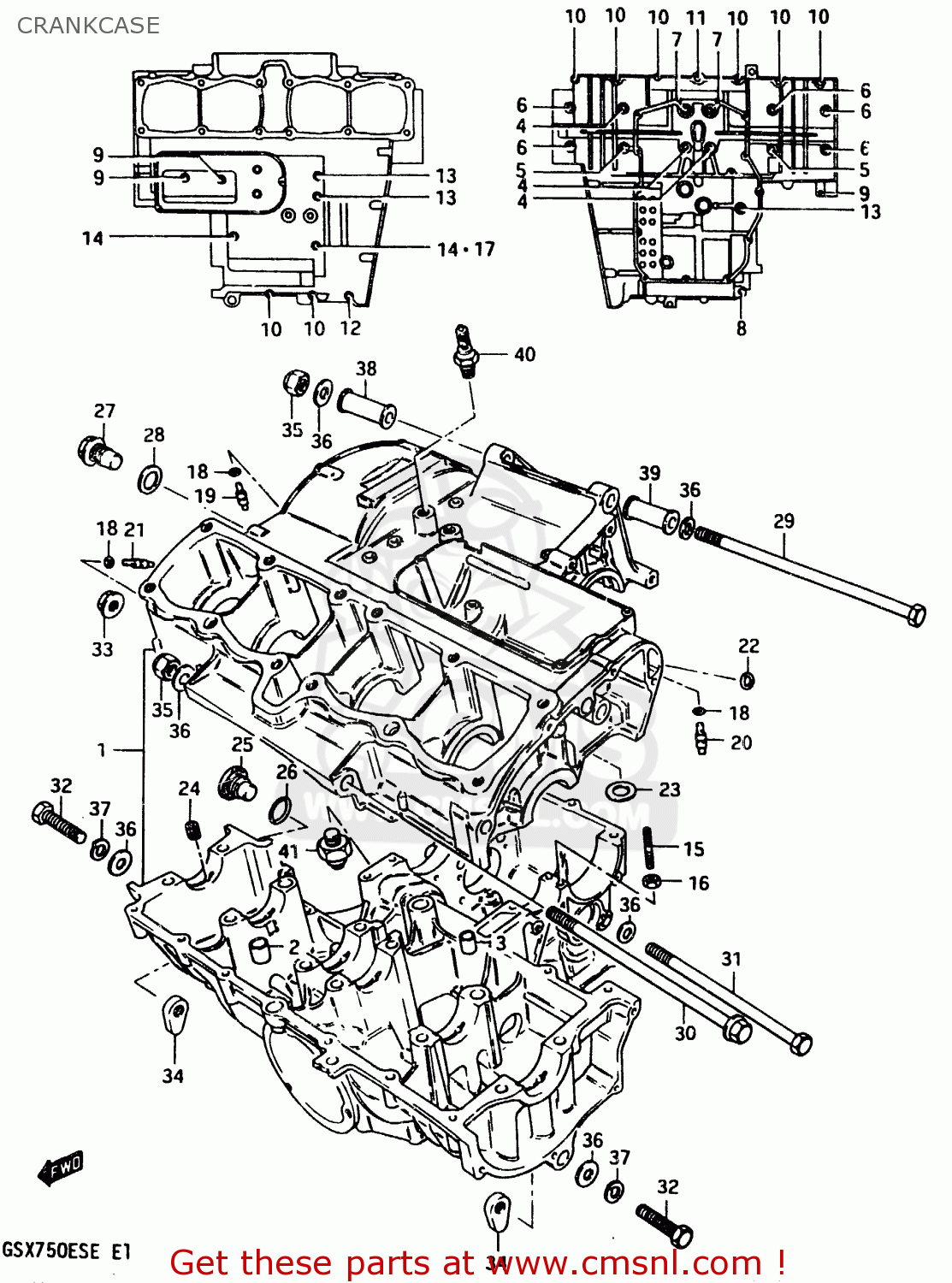

Crankcase diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

CRANKCASE GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
CRANKCASE GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
CRANKCASE GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
prices are in EUR
ref
part #
description
quantity
1
1130031870
ref: 1
~E.NO.116100
CRANKCASE SET
€ 1,825.50
1
1130031871
ref: 1
E.NO.116101~
CRANKCASE SET
€ 1,825.50
1
1130031872
ref: 1
MODEL E ~E.NO.118031
CRANKCASE SET
€ 1,825.50
1
1130031880
ref: 1
MODEL E E.NO.118032~
CRANKCASE SET
€ 1,526.00
1
1130031881
ref: 1
MODEL E E.NO.122584~
CRANKCASE ASSEMBLY
€ 1,526.00
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0920611005
ref: 3
PIN (11X20)(SUS)
€ 6.50
4
0910308109
ref: 4
BOLT(8X120)
0910308109
€ 3.50
5
0910308038
ref: 5
BOLT(8X135)
0910308038
€ 4.00
6
0910308080
ref: 6
BOLT
€ 5.50
7
0910608015
ref: 7
BOLT
0910608015
€ 4.50
8
0151708605
ref: 8
BOLT 8X60
€ 3.50
9
0151706355
ref: 9
BOLT
€ 2.50
10
0151706405
ref: 10
BOLT (6X40)
€ 2.00
11
0151706505
ref: 11
BOLT 6X50
0151706505
€ 2.00
12
0151706555
ref: 12
BOLT 6X55
€ 2.00
13
0151706855
ref: 13
BOLT
€ 2.50
14
0151706955
ref: 14
BOLT (5X95)
€ 3.00
15
0142106458
ref: 15
STUD BOLT (6X45)
0142106458
€ 2.50
16
0915906017
ref: 16
NUT
0915906017
€ 2.50
17
0916806018
ref: 17
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
18
0928004004
ref: 18
O RING(D:1.2,ID:4)
0928004004
€ 2.00
19
0949320014
ref: 19
JET,OIL GALLERY
0949320014
€ 8.00
20
0949380005
ref: 20
JET(8)
0949380005
€ 12.00
21
0949380007
ref: 21
JET,OIL
€ 14.00
22
0928013001
ref: 22
O RING(D:3.2,ID:12.9)
0928013001
€ 4.00
23
0821110201
ref: 23
WASHER,THRUST
0821110201
€ 2.00
24
0949350005
ref: 24
JET,AIR
€ 0.00
25
0924816003
ref: 25
PLUG
0924816003
€ 16.50
26
0928017002
ref: 26
O RING(D:2.4,ID:16.8)
0928017002
€ 3.50
27
0924814006
ref: 27
PLUG
0924814006
€ 4.00
28
0916814004
ref: 28
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
29
0910010195
ref: 29
BOLT 10X255
€ 14.50
30
0910310075
ref: 30
BOLT
0910310075
€ 12.00
31
0910010137
ref: 31
BOLT
€ 10.50
32
0110710355
ref: 32
BOLT
€ 2.50
33
0831931105
ref: 33
NUT 10MM
€ 3.00
34
0915910020
ref: 34
NUT
0915910020
€ 7.50
35
0915910039
ref: 35
NUT
0915910039
€ 8.50
36
0832211105
ref: 36
WASHER
€ 2.50
37
0832121105
ref: 37
LOCK WASHER
€ 3.00
38
1161011410
ref: 38
SPACER,ENGINE MOUNT
€ 9.50
39
1161044010
ref: 39
SPACER,ENGINE MOUNT(L:50)
1161044010
€ 12.00
40
3487031300
ref: 40
GAUGE ASSEMBLY,OIL TEMPERATURE
3487031300
€ 121.00
41
3782034200
ref: 41
SWITCH ASSEMBLY
3782034200
€ 29.00
