FRAME (MODEL D)

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

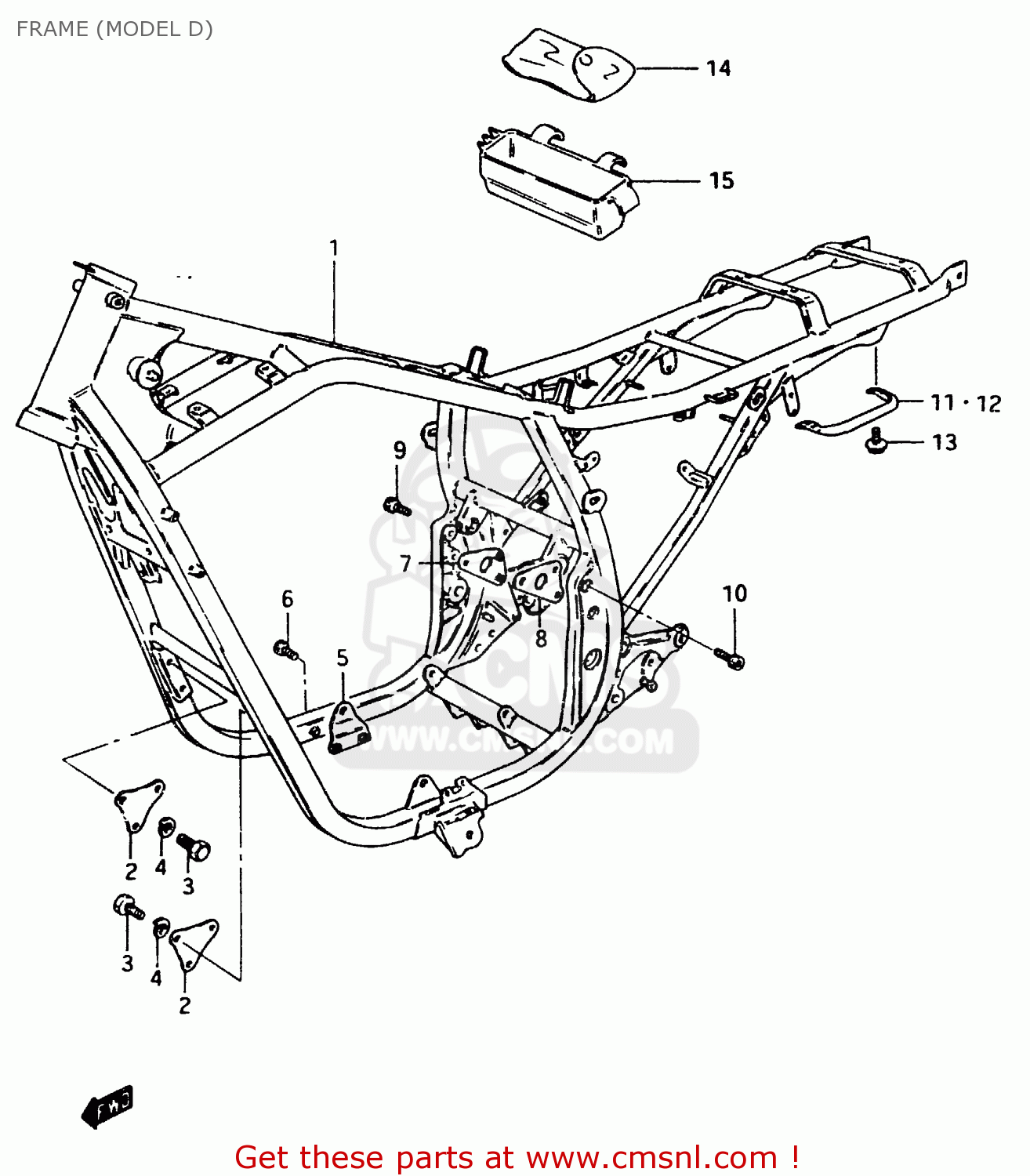

Frame (model d) diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

FRAME (MODEL D) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

FRAME (MODEL D) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

prices are in EUR

ref

part #

description

quantity

1

4110031300291
ref: 1

FRAME

€ 1,638.00

1

4110031340291
ref: 1
E15,E17

FRAME (BLACK)

€ 0.00

1

4110031330291
ref: 1
E16,E18

FRAME (BLACK)

€ 872.50

1

4110031320291
ref: 1
E22,E26

FRAME (BLACK)

€ 0.00

2

4191131300291
ref: 2

PLATE,ENGINE MOUNTING NO

€ 9.50

3

0110708168
ref: 3

BOLT

€ 2.00

4

0832121088
ref: 4

LOCK WASHER

€ 2.00

5

4193031300291
ref: 5

PLATE,ENGINE MOUNTING NO

€ 10.00

6

0910608024
ref: 6

BOLT

€ 3.00

7

4197031300291
ref: 7

PLATE,ENGINE MOUNTING NO

€ 8.00

8

4198031300291
ref: 8

PLATE,ENGINE MOUNTING NO

€ 14.00

9

0910608027
ref: 9

BOLT

€ 3.00

10

0910608031
ref: 10

BOLT

€ 3.00

11

4161031300
ref: 11

GRIP,FRAME HANDLE

€ 18.50

12

4162031300
ref: 12

GRIP,FRAME HANDLE,LEFT

€ 17.50

13

0151708165
ref: 13

BOLT, LOWER

€ 3.00

14

0980000256
ref: 14

TOOL SET

€ 53.00

15

4743131300
ref: 15

HOLDER,TOOL

€ 8.00
