REAR FENDER

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

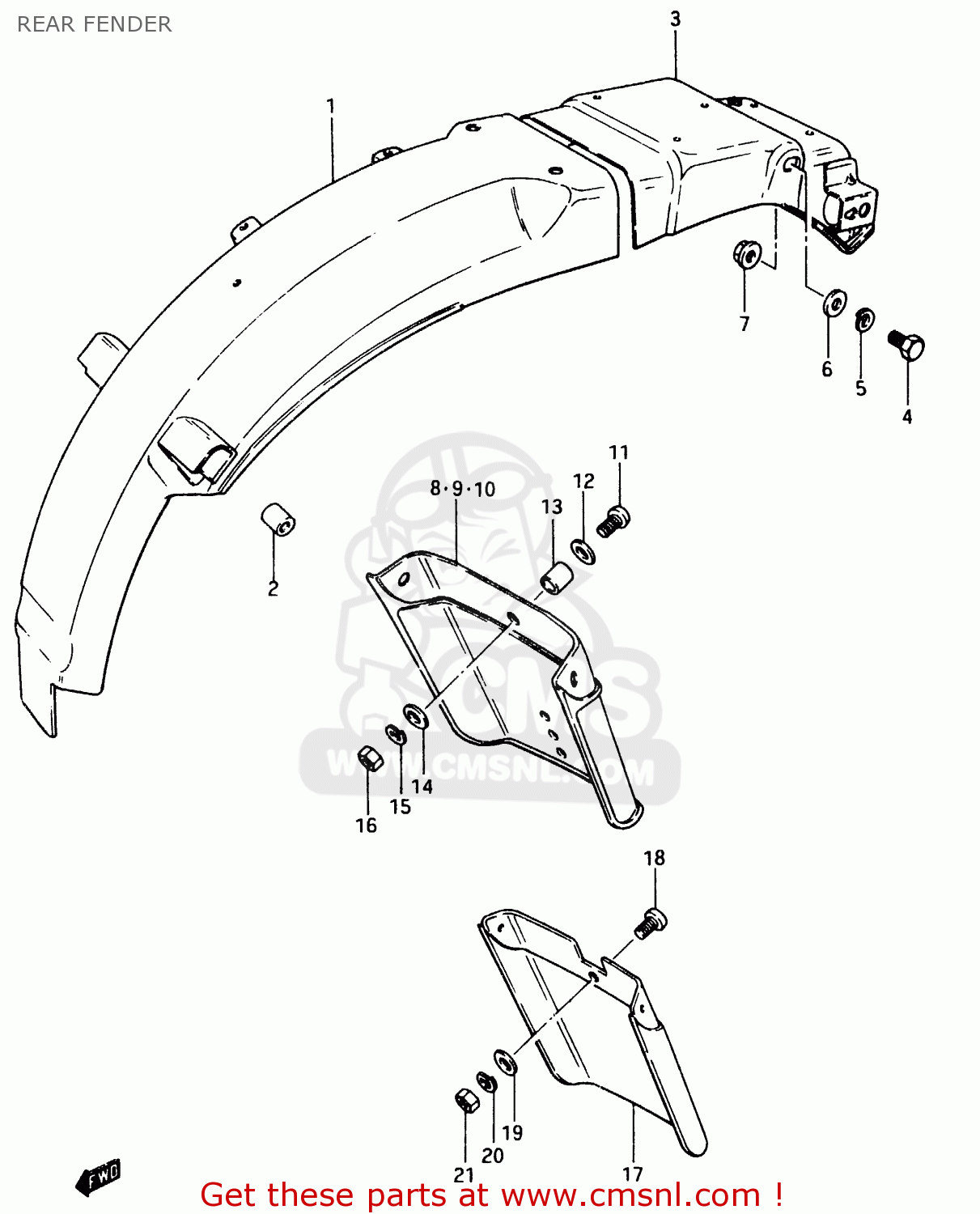

Rear fender diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

REAR FENDER GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

REAR FENDER GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

prices are in EUR

ref

part #

description

quantity

1

6311231300
ref: 1

BODY,REAR FENDER,FRONT

€ 49.00

2

0932905003
ref: 2

CUSHION

€ 4.50

3

6312031300
ref: 3

REINFORCEMENT,RR FENDER

€ 44.50

4

0110708206
ref: 4

BOLT,8X1.25X2

€ 2.00

5

0832121086
ref: 5

WASHER,LOCK,8.

€ 2.50

6

0832211086
ref: 6

WASHER 8MM

€ 1.50

7

0831616086
ref: 7

NUT, WHEEL SET

€ 3.00

8

6331131300
ref: 8
E16,E26

EXTENSION, REAR

€ 41.00

9

6331131310
ref: 9
E17,E22,E25

EXTENSION,RR F

€ 19.50

10

6331131320
ref: 10
E15,E18

EXTENSION, REAR

€ 31.50

11

0214206165
ref: 11

SCREW

€ 2.50

12

0832221065
ref: 12

WASHER

€ 2.00

13

0918006001
ref: 13

SPACER(6.2X8.3X5.7)

€ 2.00

14

0916006070
ref: 14

WASHER

€ 2.00

15

0832121068
ref: 15

LOCK WASHER

€ 2.50

16

0831022068
ref: 16

NUT 6MM

€ 2.50

17

6341131300
ref: 17
E15,E18

MUD GUARD

€ 0.00

18

0214206165
ref: 18
E15,E18

SCREW

€ 2.50

19

0916006070
ref: 19
E15,E18

WASHER

€ 2.00

20

0832121068
ref: 20
E15,E18

LOCK WASHER

€ 2.50

21

0831022066
ref: 21
E15,E18

NUT

€ 2.00
