CRANKCASE COVER (MODEL D)

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

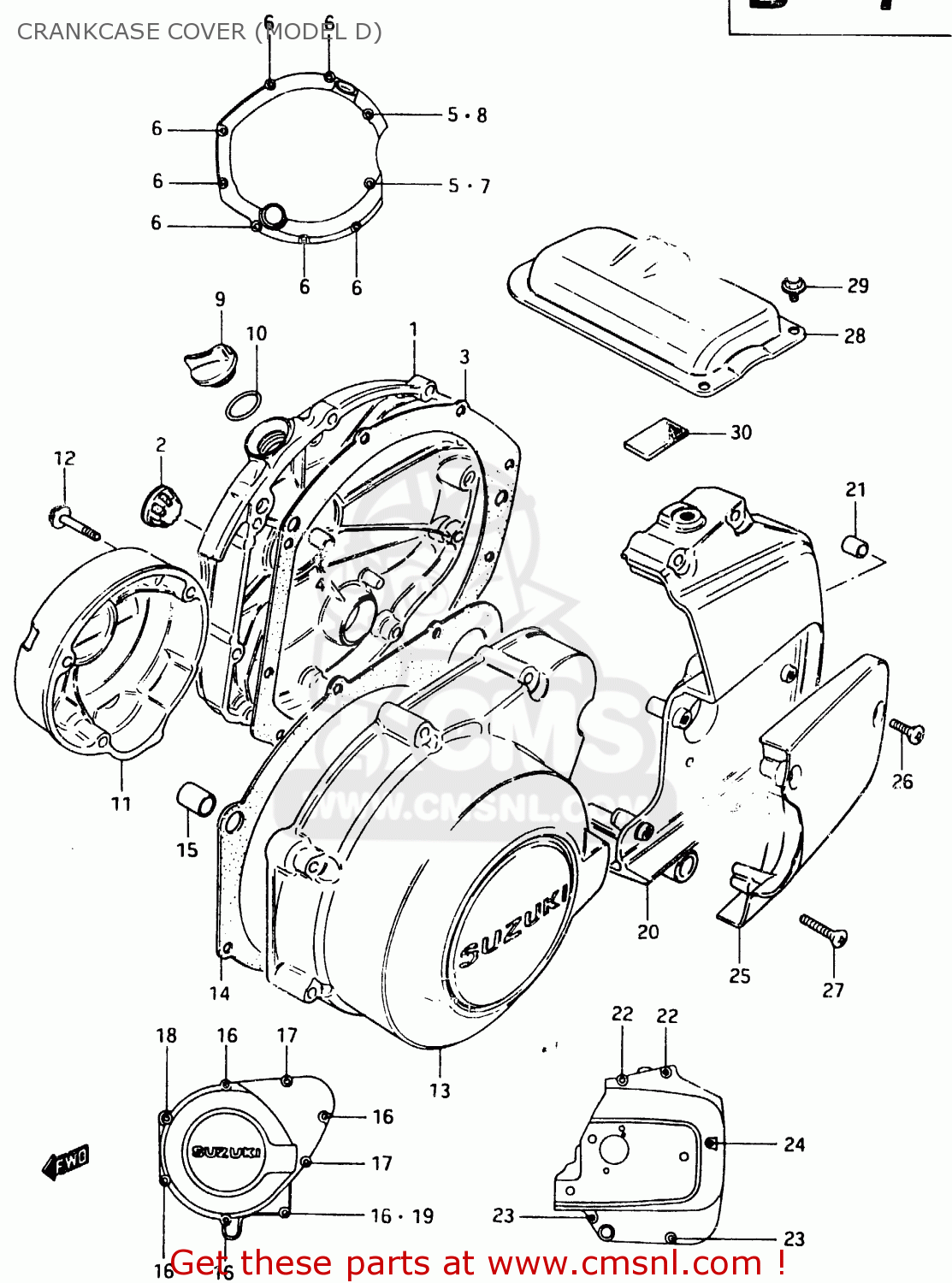

Crankcase cover (model d) diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

CRANKCASE COVER (MODEL D) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

CRANKCASE COVER (MODEL D) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

prices are in EUR

ref

part #

description

quantity

1

1134031301
ref: 1

COVER,CLUTCH

€ 200.50

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148231301
ref: 3

GASKET,CLUTCH COVER (MCA)

€ 14.00

4

0920209004
ref: 4

PIN

€ 2.50

5

0916806015
ref: 5

WASHER

€ 2.00

6

0154706258
ref: 6

BOLT

€ 2.50

7

0154706308
ref: 7

BOLT (6X30)

€ 2.50

8

0154706358
ref: 8

BOLT (6X35)

€ 2.50

9

0925920007
ref: 9

PLUG(20X10)

€ 6.50

10

0928017003
ref: 10

O RING(D:3.1,ID:16.8)

€ 2.00

11

1138131300
ref: 11

COVER,CONTACT BRAKER

€ 115.00

12

0154705308
ref: 12

BOLT (5X30)

€ 2.00

13

1135131300
ref: 13

COVER,MAGNETO

€ 185.50

14

1148331301
ref: 14

GASKET,MAGNETO COVER (MCA)

€ 19.50

15

0920611005
ref: 15

PIN (11X20)(SUS)

€ 6.50

16

0154706358
ref: 16

BOLT (6X35)

€ 2.50

17

0154706408
ref: 17

BOLT (6X40)

€ 2.50

18

0154706458
ref: 18

BOLT

€ 2.50

19

0916806015
ref: 19

WASHER

€ 2.00

20

1136031301
ref: 20

COVER,ENGINE SPROCKET

€ 115.50

21

0421109129
ref: 21

PIN

€ 2.00

22

0154706408
ref: 22

BOLT (6X40)

€ 2.50

23

0154706508
ref: 23

BOLT (6X50)

€ 2.50

24

0154706708
ref: 24

BOLT (6X70)

€ 2.50

25

1138031301
ref: 25

CAP,CLUTCH RELEASE ADJUST

€ 62.50

26

0213205208
ref: 26

SCREW

€ 2.00

27

0213205308
ref: 27

SCREW

€ 1.50

28

1138231300
ref: 28

COVER,STARTER MOTOR

€ 21.00

29

0154705084
ref: 29

BOLT

€ 2.50

30

1136234200
ref: 30

DAMPER,STARTER MOTOR CLUTCH

€ 5.50
