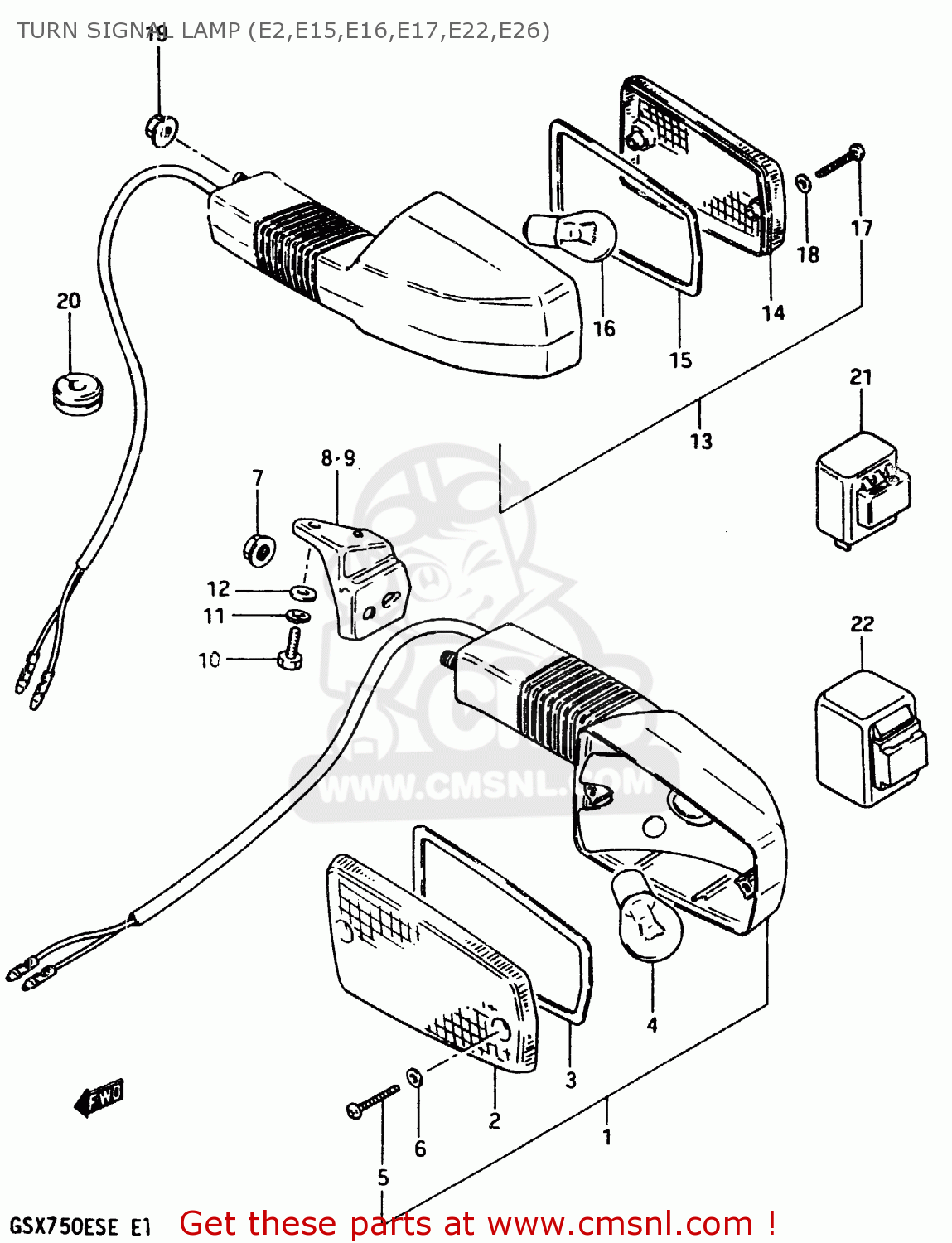

TURN SIGNAL LAMP (E2,E15,E16,E17,E22,E26)

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

Turn signal lamp (e2,e15,e16,e17,e22,e26) diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

TURN SIGNAL LAMP (E2,E15,E16,E17,E22,E26) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

TURN SIGNAL LAMP (E2,E15,E16,E17,E22,E26) GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

prices are in EUR

ref

part #

description

quantity

1

3560143421
ref: 1
GSX750ESD/ESE/EFE

LAMP ASSY, FRONT TURN SIGNAL

€ 98.50

1

3560100A40
ref: 1
GSX750EE

LAMP ASSY, FRONT TURN SIGNAL

€ 89.00

2

3561243410
ref: 2

LENS

€ 11.00

3

3561343410
ref: 3

GASKET (NAS)

€ 3.50

4

0947112045
ref: 4
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

5

0321104208
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0831626086
ref: 7

NUT

€ 1.50

8

3567131300
ref: 8
GSX750ESD/ESE/EFE

BRACKET,FRONT TURN SIGNAL

€ 4.50

9

3568131300
ref: 9
GSX750ESD/ESE/EFE

BRACKET,FRONT TURN SIGNAL

€ 5.50

10

0110708165
ref: 10

BOLT

€ 2.00

11

0832121085
ref: 11

LOCK WASHER

€ 2.50

12

0832211085
ref: 12

WASHER,8.5X16X

€ 1.50

13

3560331321
ref: 13
E2,E16,E17,E22,E26

LAMP ASSY, REAR TURN SIGNAL

€ 75.00

13

3560331340
ref: 13
E15

LAMP ASSY, REAR TURN SIGNAL

€ 79.00

14

3565243420
ref: 14

LENS,TURN SIGN

€ 11.50

15

3561343410
ref: 15

GASKET (NAS)

€ 3.50

16

0947112045
ref: 16
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

17

0321104208
ref: 17

SCREW

€ 1.50

18

3562743010
ref: 18

GASKET (NAS)

€ 2.00

19

0831626086
ref: 19

NUT

€ 1.50

20

0930805011
ref: 20

GROMMET

€ 2.00

21

3861031310
ref: 21
E2,E15,E16,E17,E26,F

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

22

3861045091
ref: 22
E22,FROM 38610-45090

RELAY ASSY,TUR

€ 67.50

all assemblies
