WIRING HARNESS

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

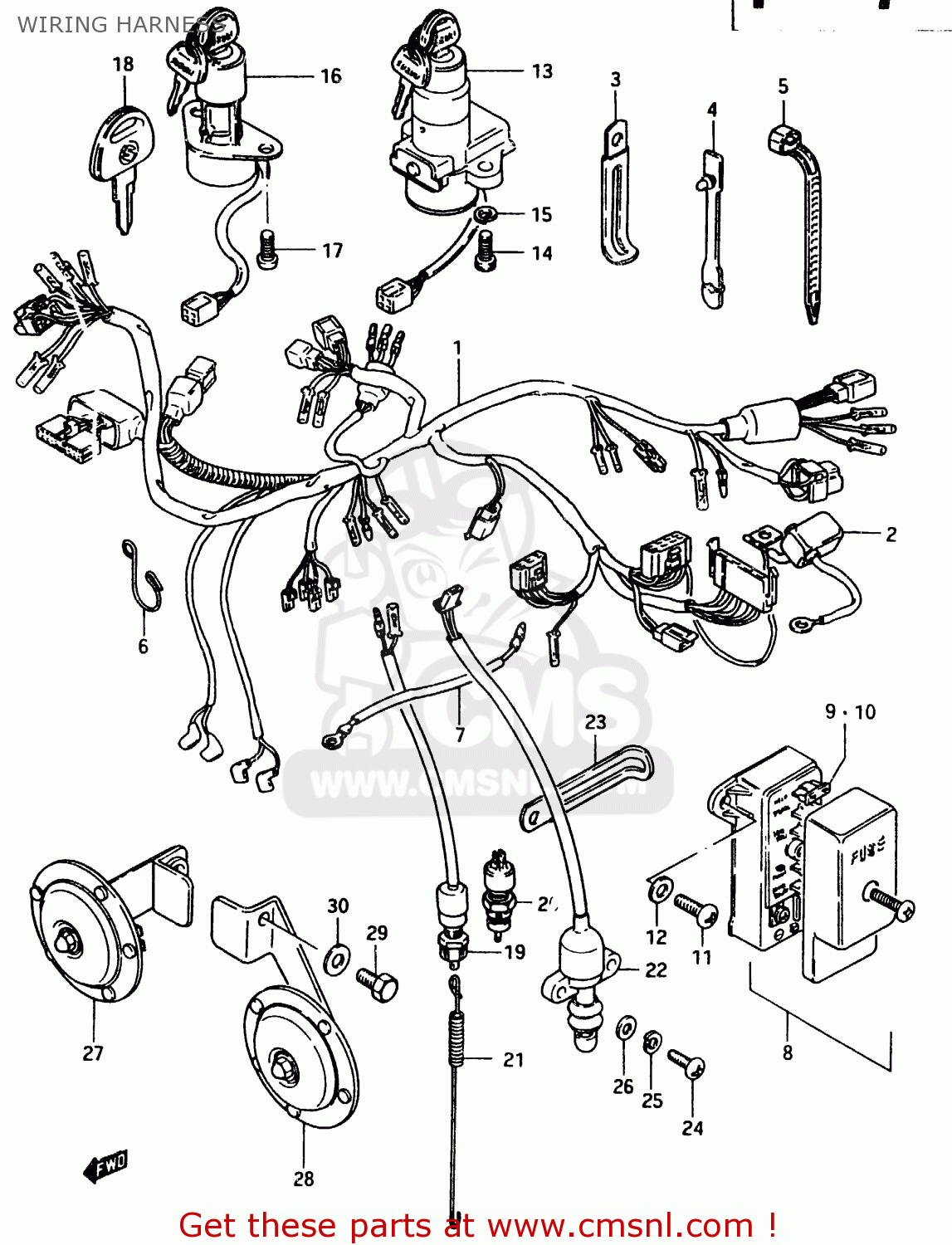

Wiring harness diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

WIRING HARNESS GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
WIRING HARNESS GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
WIRING HARNESS GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
prices are in EUR
ref
part #
description
quantity
1
3661031350
ref: 1
GSX750ESD
HARNESS,WIRING
3661031350
€ 244.00
1
3661031360
ref: 1
GSX750ESE/EFE
HARNESS,WIRING
€ 204.50
1
3661031310
ref: 1
GSX750EE
HARNESS,WIRING
€ 162.50
2
3362438310
ref: 2
CAP,BATTERY PLUS TERMINAL
3362438310
€ 5.00
3
0940406415
ref: 3
CLAMP
€ 3.00
4
0940705403
ref: 4
CLAMP,L:88
0940705403
€ 1.50
5
0940711401
ref: 5
CLAMP(L:95)
0940711401
€ 2.50
5
0940714403
ref: 5
CLAMP(L:125)
0940714403
€ 2.50
5
0940718402
ref: 5
CLAMP(L:165)
0940718402
€ 2.50
5
0940725401
ref: 5
CLAMP(L:235)
0940725401
€ 4.00
6
3661944002
ref: 6
GSX750EE
CLIP,WIRING HARNESS
3661944002
€ 2.50
7
3685131300
ref: 7
WIRE
€ 0.00
8
3674049401
ref: 8
BOX ASSEMBLY,FUSE
3674049401
€ 69.50
9
0948110101
ref: 9
FUSE(10A)
0948110101
€ 2.50
10
0948115101
ref: 10
FUSE(15A)
0948115101
€ 1.50
11
0211206126
ref: 11
SCREW
0211206126
€ 1.50
12
0832221066
ref: 12
WASHER, LOWER
0832221066
€ 2.00
13
3710031350
ref: 13
GSX750ESD/ESE/EFE
LOCK ASSEMBLY,STEERING
€ 114.00
13
3710031300
ref: 13
GSX750EE
LOCK ASSEMBLY,STEERING
3710031300
€ 108.50
14
3715247011
ref: 14
FROM 37152-47010
BOLT
€ 3.00
15
0832121068
ref: 15
LOCK WASHER
0832121068
€ 2.50
16
3711031350
ref: 16
GSX750ESD/ESE/EFE:E1
SWITCH ASSY, IGNITION
€ 121.00
16
3711005300
ref: 16
GSX750EE E15,E17,E22
SWITCH ASSY, IGNITION
€ 121.00
17
0214206125
ref: 17
E15,E17,E22,E26
SCREW 6X12
0214206125
€ 2.00
18
3714647010
ref: 18
OPT
KEY,BLANK
3714647010
€ 15.00
19
3774048071
ref: 19
MODEL D,FROM 37740-0
SWITCH ASSY,STOP LAMP
3774048071
€ 22.00
20
3774007900
ref: 20
MODEL E
SWITCH ASSEMBLY,STOP LAMP
3774007900
€ 20.50
21
0944306051
ref: 21
SPRING
€ 6.00
22
3784031302
ref: 22
SWITCH ASSEMBLY,SIDE STAND
3784031302
€ 58.50
23
0940406415
ref: 23
CLAMP
€ 3.00
24
0211205205
ref: 24
SCREW 5X20
0211205205
€ 2.50
25
0832121055
ref: 25
WASHER,LOCK
0832121055
€ 3.00
26
0832221055
ref: 26
WASHER,5MM
0832221055
€ 2.50
27
3850131310
ref: 27
MODEL D
HORN ASSEMBLY
€ 49.50
27
3850131330
ref: 27
MODEL E
HORN ASSEMBLY,HIGH PITCH
€ 49.50
27
3850131320
ref: 27
MODEL D E4,E18,E34,E
HORN, HIGH PITCHED
€ 49.50
27
3850131340
ref: 27
MODEL E E4,E18,E34,E
HORN, HIGH PITCHED
€ 49.50
28
3850231310
ref: 28
MODEL D
HORN ASSEMBLY
€ 49.50
28
3850231330
ref: 28
MODEL E
HORN ASSEMBLY,LOW PITCH
€ 49.50
28
3850231320
ref: 28
MODEL D E4,E18,E34,E
HORN, LOW PITCHED
€ 0.00
28
3850231340
ref: 28
MODEL E E4,E18,E34,E
HORN, LOW PITCHED
€ 49.50
29
0110708165
ref: 29
BOLT
€ 2.00
30
0832211085
ref: 30
WASHER,8.5X16X
€ 1.50
