SEAT

GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

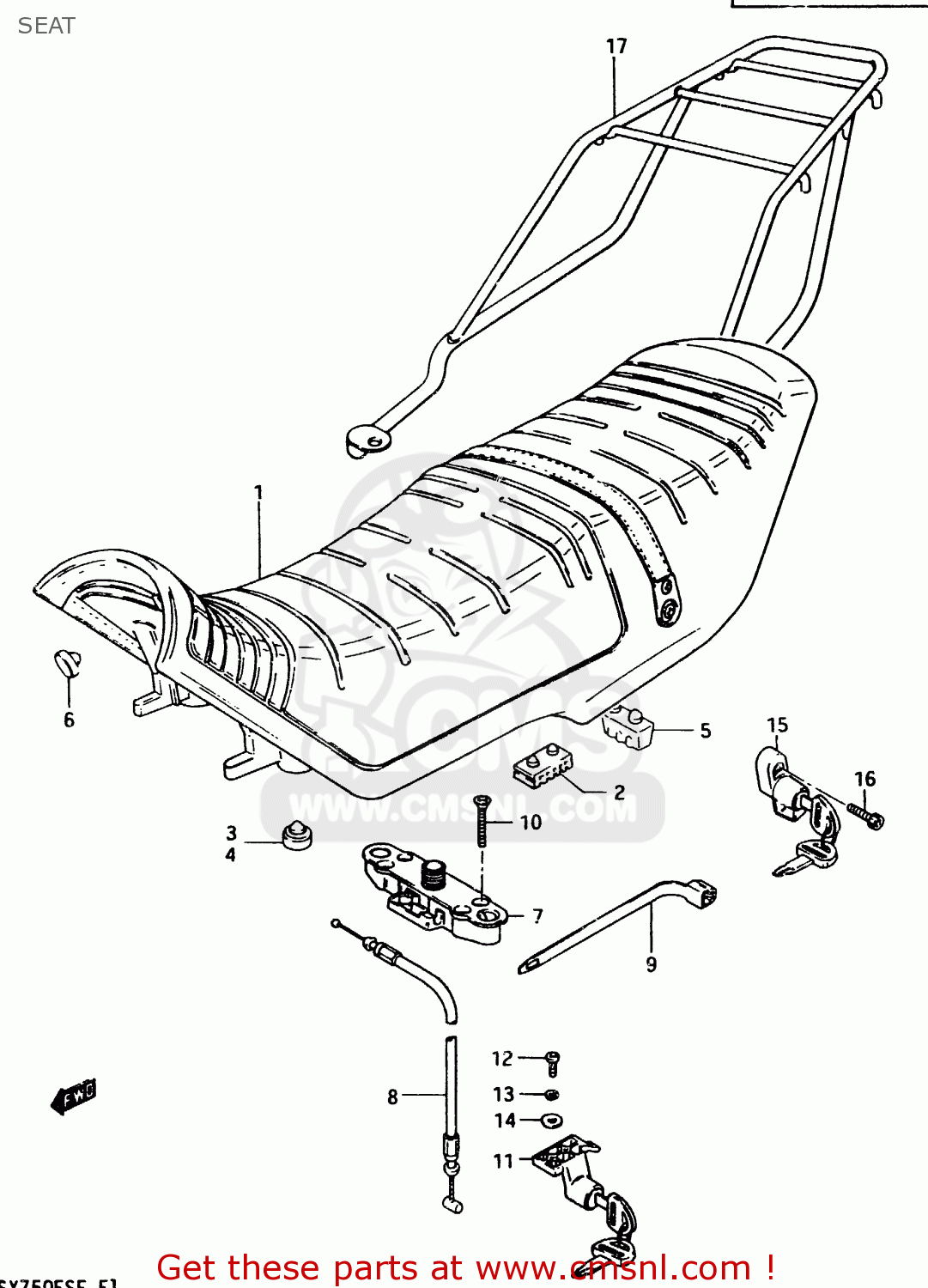

Seat diagram GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)

SEAT GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
SEAT GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
SEAT GSX750E 1984 (E) (E01 E02 6 15 16 17 18 21 22 24 25 26 30 34 39)
prices are in EUR
ref
part #
description
quantity
1
451003130150C
ref: 1
MODEL D
SEAT ASSEMBLY
€ 422.50
1
451003130148H
ref: 1
MODEL E
SEAT ASSEMBLY
€ 422.50
1
451003135148H
ref: 1
MODEL E E22
SEAT ASSY (BLACK)
€ 0.00
2
4514931300
ref: 2
CUSHION,SEAT(40X20X15)
4514931300
€ 2.00
3
0932110002
ref: 3
CUSHION(11.5X22X20)
0932110002
€ 2.00
4
0932110001
ref: 4
CUSHION
0932110001
€ 2.50
5
4514945330
ref: 5
CUSHION,SUPPORT(50X25X32)
4514945330
€ 2.00
6
4525631300
ref: 6
WEATHERSTRIP,SEAT
€ 0.00
7
4522013600
ref: 7
TO 45220-13601, WITH
LOCK ASSEMBLY,SEAT STRIKER
4522013600
€ 47.00
8
4528031300
ref: 8
CABLE,SEAT LOCK
4528031300
€ 9.50
9
0940718402
ref: 9
CLAMP(L:165)
0940718402
€ 2.50
10
0212206306
ref: 10
SCREW
€ 2.00
11
4570031300KEY
ref: 11
LOCK ASSEMBLY,SEAT
4570031300KEY
€ 35.00
12
0211205105
ref: 12
SCREW
€ 2.00
13
0832121055
ref: 13
WASHER,LOCK
0832121055
€ 3.00
14
0832221055
ref: 14
WASHER,5MM
0832221055
€ 2.50
15
9570031300KEY
ref: 15
LOCK SET
9570031300KEY
€ 49.50
16
0910606036
ref: 16
BOLT
€ 2.50
17
4631031300
ref: 17
OPT
CARRIER, SPORTS
4631031300
€ 54.50
