BATTERY

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

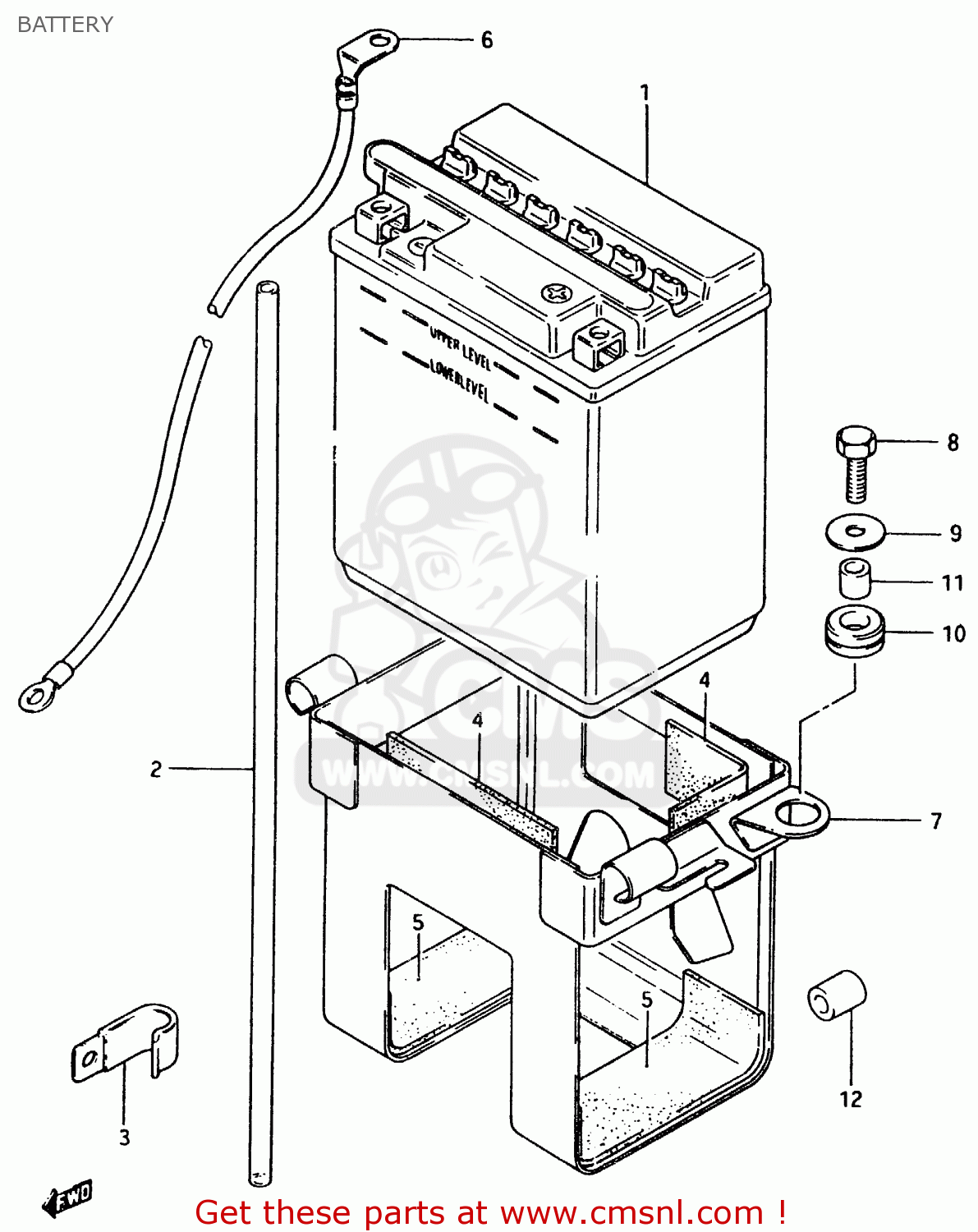

Battery diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

3368031003
ref: 2

HOSE,BATTERY EXHAUST

€ 4.50

0940309303
ref: 3

CLAMP

€ 5.50

3365234000
ref: 4

PROTECTOR(30X80X2)

€ 4.50

3365137000
ref: 5
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3385031300
ref: 6

WIRE,STARTER MOTOR LEAD

€ 15.00

4154031300
ref: 7

HOLDER,BATTERY

€ 33.50

0912806005
ref: 8

SCREW

€ 2.50

0916006027
ref: 9

WASHER (6.5X20X1.2)

€ 2.00

0932008007
ref: 10

CUSHION

€ 4.00

0918006038
ref: 11

SPACER(6.1X9X7.5)

€ 2.00

0932905006
ref: 12

CUSHION

€ 2.00
