OIL PUMP - OIL FILTER

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

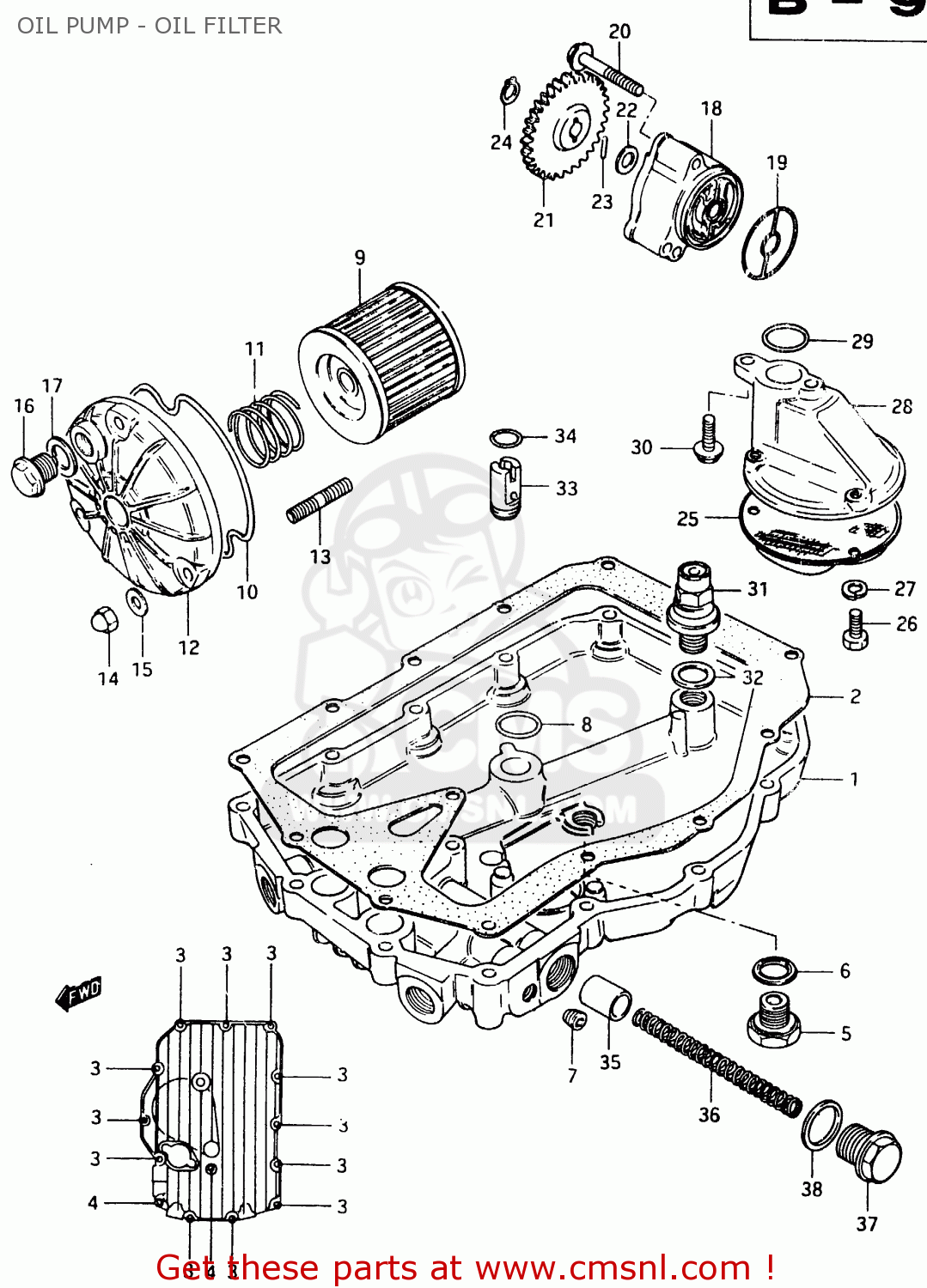

Oil pump - oil filter diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

OIL PUMP - OIL FILTER GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
OIL PUMP - OIL FILTER GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
OIL PUMP - OIL FILTER GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
1151131300
ref: 1
PAN,OIL
1151131300
€ 113.50
2
1148931301
ref: 2
GASKET,OIL PAN (MCA)
1148931301
€ 20.50
3
0151706305
ref: 3
BOLT 6X30
€ 2.50
4
0151706405
ref: 4
BOLT (6X40)
€ 2.00
5
0924714001
ref: 5
PLUG
0924714001
€ 5.00
6
0916814004
ref: 6
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
7
0924605001
ref: 7
PLUG
0924605001
€ 3.50
8
0928016008
ref: 8
O RING(D:3.2,ID:15.8)
0928016008
€ 1.50
9
1651045040
ref: 9
FILTER ASSY,ENGINE OIL
1651045040
€ 7.50
10
1651845000
ref: 10
O RING,OIL FILTER CHAMBER CAP
1651845000
€ 7.50
11
0944032004
ref: 11
SPRING
0944032004
€ 13.50
12
1651233300
ref: 12
CAP,OIL FILTER
€ 47.00
13
0142106208
ref: 13
STUD 6X20
0142106208
€ 2.50
14
0831311065
ref: 14
NUT 6MM
0831311065
€ 2.00
15
0832221065
ref: 15
WASHER
€ 2.00
16
0924714012
ref: 16
MODEL D
PLUG (14X12)
0924714012
€ 3.50
16
0924714015
ref: 16
MODEL E
PLUG(14X12)
0924714015
€ 2.50
17
0916814004
ref: 17
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
18
1640031300
ref: 18
~E.NO.122583, TO 164
PUMP ASSEMBLY,OIL
€ 119.50
18
1640031310
ref: 18
E.NO.122584~
PUMP ASSEMBLY,OIL
1640031310
€ 119.50
19
1649131300
ref: 19
~E.NO.122583
O RING,OIL PUMP
1649131300
€ 12.50
19
1649131310
ref: 19
E.NO.122584~
O-RING,OIL PUMP
1649131310
€ 12.50
20
0151706408
ref: 20
BOLT
0151706408
€ 2.50
21
1633131300
ref: 21
GEAR,OIL PUMP DRIVEN
1633131300
€ 37.00
22
0822110185
ref: 22
SHIM
0822110185
€ 2.00
23
0926104009
ref: 23
PIN(4X15.8)
0926104009
€ 1.50
24
0833131109
ref: 24
CIRCLIP
0833131109
€ 2.00
25
1652009300
ref: 25
STRAINER,ENGINE OIL
1652009300
€ 14.00
26
0110706128
ref: 26
BOLT
0110706128
€ 2.00
27
0832121068
ref: 27
LOCK WASHER
0832121068
€ 2.50
28
1652531300
ref: 28
PROTECTOR,OIL STRAINER
€ 15.00
29
0928018008
ref: 29
O RING(D:3.2,ID:17.8)
0928018008
€ 8.00
30
0151706208
ref: 30
BOLT,REAR
€ 2.50
31
1644044500
ref: 31
REGULATOR ASSY,ENGINE OIL
1644044500
€ 33.00
32
0821214181
ref: 32
WASHER
0821214181
€ 2.00
33
1643031300
ref: 33
VALVE ASSEMBLY,PISTON OIL
€ 30.00
34
0928010009
ref: 34
O RING(D:1.3,ID:9.8)
0928010009
€ 1.50
35
1644234300
ref: 35
PLUNGER,CONTROL
€ 16.00
36
0944010011
ref: 36
SPRING
€ 3.50
37
0924716004
ref: 37
PLUG
0924716004
€ 5.50
38
0928017002
ref: 38
O RING(D:2.4,ID:16.8)
0928017002
€ 3.50
