Buy Suzuki GSX Parts Online


STAND (E16, E18, E22, E26, MODEL E E15)

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

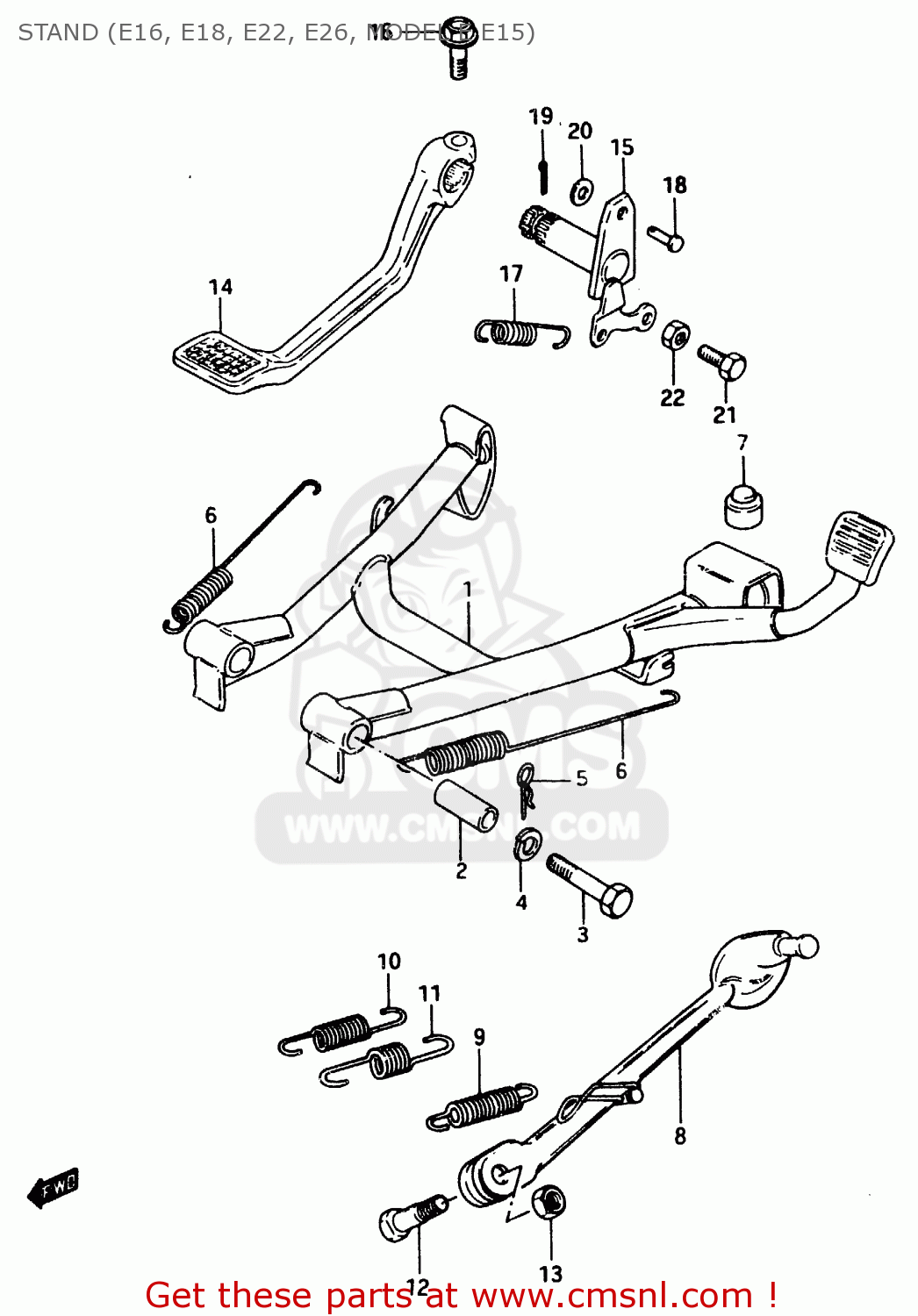

Stand (e16, e18, e22, e26, model e e15) diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

STAND (E16, E18, E22, E26, MODEL E E15) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
STAND (E16, E18, E22, E26, MODEL E E15) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
STAND (E16, E18, E22, E26, MODEL E E15) GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
4210031301
ref: 1
STAND,CENTER
€ 129.00
2
0918010040
ref: 2
SPACER(10X16X38.8)
0918010040
€ 3.00
3
0910110034
ref: 3
BOLT
€ 6.50
4
0832121108
ref: 4
LOCK WASHER
0832121108
€ 2.00
5
0938510001
ref: 5
CLIP
0938510001
€ 1.50
6
0944317017
ref: 6
SPRING
0944317017
€ 8.50
7
0932110001
ref: 7
CUSHION
0932110001
€ 2.50
8
4231031311
ref: 8
STAND, PROP
€ 55.50
9
0944315013
ref: 9
E16,E18,E26,MODEL E
SPRING
0944315013
€ 22.50
10
0944314019
ref: 10
E22
SPRING
0944314019
€ 7.00
11
0944322002
ref: 11
E22
SPRING
€ 7.00
12
0911110024
ref: 12
BOLT(10X32)
0911110024
€ 4.50
13
0831022106
ref: 13
NUTM10X1.25X8
€ 2.00
14
4311131300
ref: 14
PEDAL,BRAKE
4311131300
€ 72.50
15
4312031300
ref: 15
ARM,BRAKE PEDAL
€ 18.50
16
0152708258
ref: 16
BOLT
€ 2.50
17
0944314013
ref: 17
SPRING
0944314013
€ 21.50
18
0920006029
ref: 18
PIN
0920006029
€ 1.50
19
0411120158
ref: 19
PIN
0411120158
€ 1.50
20
0832221068
ref: 20
WASHER
0832221068
€ 2.00
21
0110706258
ref: 21
BOLT
€ 2.00
22
0831011068
ref: 22
NUT
0831011068
€ 2.50
