GEAR SHIFTING

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

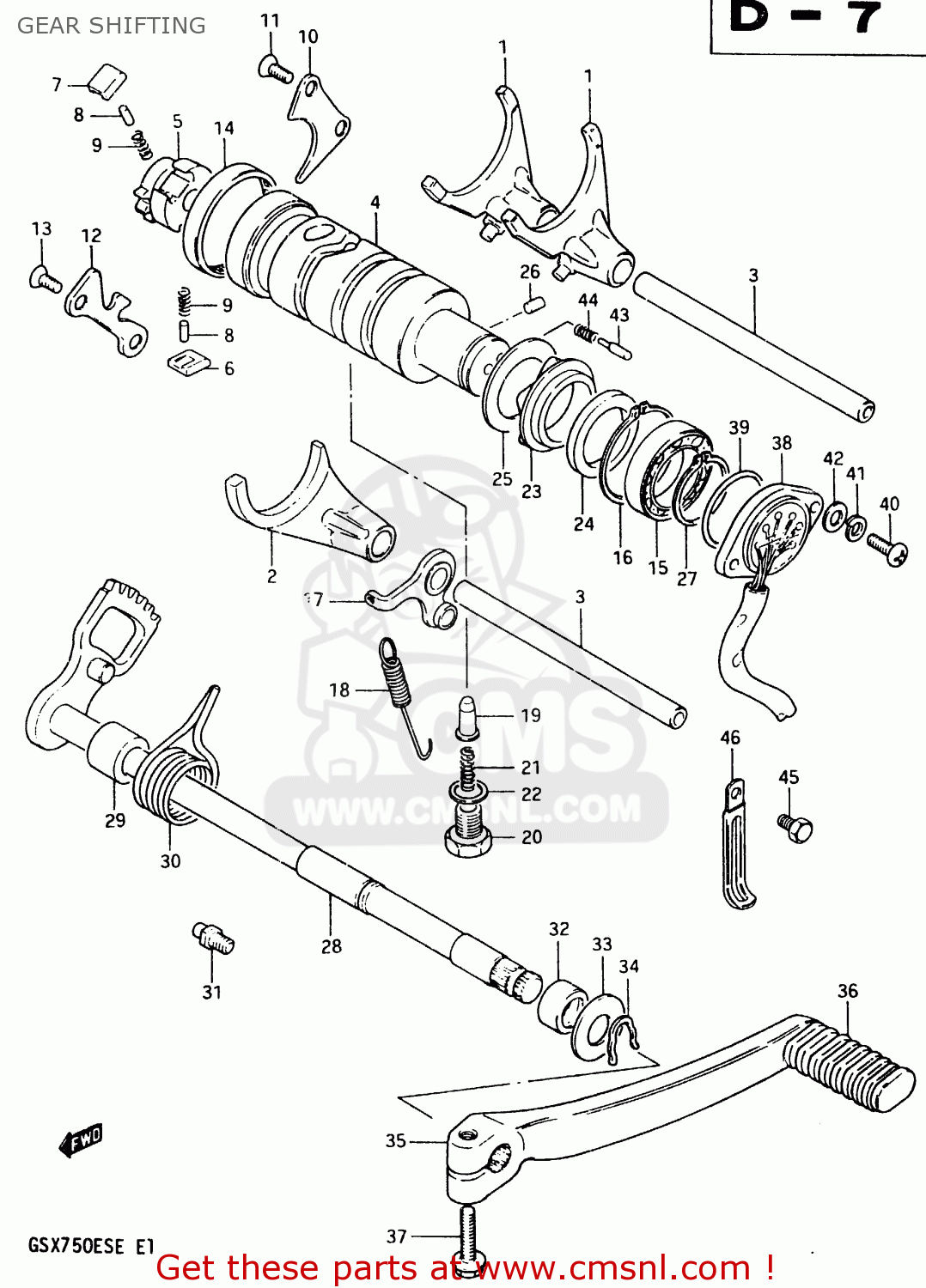

Gear shifting diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

GEAR SHIFTING GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
GEAR SHIFTING GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
GEAR SHIFTING GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1
2521131300
ref: 1
FORK,GEAR SHIFT NO.1
2521131300
€ 50.00
2
2522131300
ref: 2
FORK,GEAR SHIFT NO.2
2522131300
€ 57.00
3
2541131301
ref: 3
SHAFT,GEAR SHIFT FORK
2541131301
€ 14.50
4
2531031300
ref: 4
CAM,GEAR SHIFT
€ 101.00
5
2532231300
ref: 5
RETAINER,GEAR SHIFT CAM
€ 14.50
6
2532334200
ref: 6
FROM 25323-11000
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532434200
ref: 7
FROM 25324-11000
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
0926105003
€ 1.50
9
0944004003
ref: 9
SPRING
0944004003
€ 1.50
10
2533131300
ref: 10
LIFTER,GEAR SHIFT PAWL
€ 7.00
11
0212206128
ref: 11
SCREW
0212206128
€ 3.00
12
2534109300
ref: 12
GUIDE,GEAR SHIFT CAM
€ 6.00
13
0212206128
ref: 13
SCREW
0212206128
€ 3.00
14
0926343001
ref: 14
BEARING(43X49X12)
0926343001
€ 30.00
15
0811069050
ref: 15
BALL BEARING
0811069050
€ 36.00
16
0833141428
ref: 16
CIRCLIP,42MM
€ 1.50
17
2535031300
ref: 17
STOPPER,GEAR SHIFTING
€ 10.50
18
0944308026
ref: 18
SPRING
0944308026
€ 14.50
19
2535131300
ref: 19
STOPPER,GEAR SHIFTING
2535131300
€ 6.50
20
2535430000
ref: 20
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
21
0944006014
ref: 21
SPRING
0944006014
€ 1.50
22
0916814004
ref: 22
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
23
2538138400
ref: 23
PLATE,STOPPER
2538138400
€ 22.00
24
0821125321
ref: 24
WASHER
0821125321
€ 3.00
25
0916730007
ref: 25
WASHER,LOCK
€ 2.50
26
0621104063
ref: 26
PIN 4X6
0621104063
€ 2.00
27
0833131258
ref: 27
CIRCLIP,25MM
€ 2.00
28
2551031300
ref: 28
SHAFT,GEAR SHIFT
2551031300
€ 54.00
29
0918012068
ref: 29
SPACER(12X20X15.3)
0918012068
€ 3.00
30
0944426017
ref: 30
SPRING
0944426017
€ 5.00
31
2567101000
ref: 31
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
32
0928512002
ref: 32
OIL SEAL
0928512002
€ 7.00
33
0916012020
ref: 33
WASHER (12.5X27X1.6)
0916012020
€ 2.00
34
0938412001
ref: 34
SPRING,RETAINER
0938412001
€ 2.00
35
2560031300
ref: 35
LEVER ASSEMBLY,GEAR SHIFTING
2560031300
€ 31.50
36
2565249300
ref: 36
RUBBER,PEDAL
2565249300
€ 5.50
37
0151706258
ref: 37
BOLT
0151706258
€ 2.50
38
3772031300
ref: 38
TERMINAL BASE,NEUTRAL
€ 51.50
39
0928036001
ref: 39
O RING(D:2.4,ID:36.5)
0928036001
€ 4.50
40
0912505102
ref: 40
SCREW(5X14)
0912505102
€ 2.50
41
0832121058
ref: 41
LOCK WASHER
0832121058
€ 2.00
42
0832221058
ref: 42
WASHER
€ 2.50
43
0920905011
ref: 43
PIN(5X15.5)
0920905011
€ 2.00
44
0944004010
ref: 44
SPRING
0944004010
€ 1.50
45
0110706108
ref: 45
BOLT
€ 2.00
46
0940406415
ref: 46
CLAMP
€ 3.00
