GENERATOR

GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

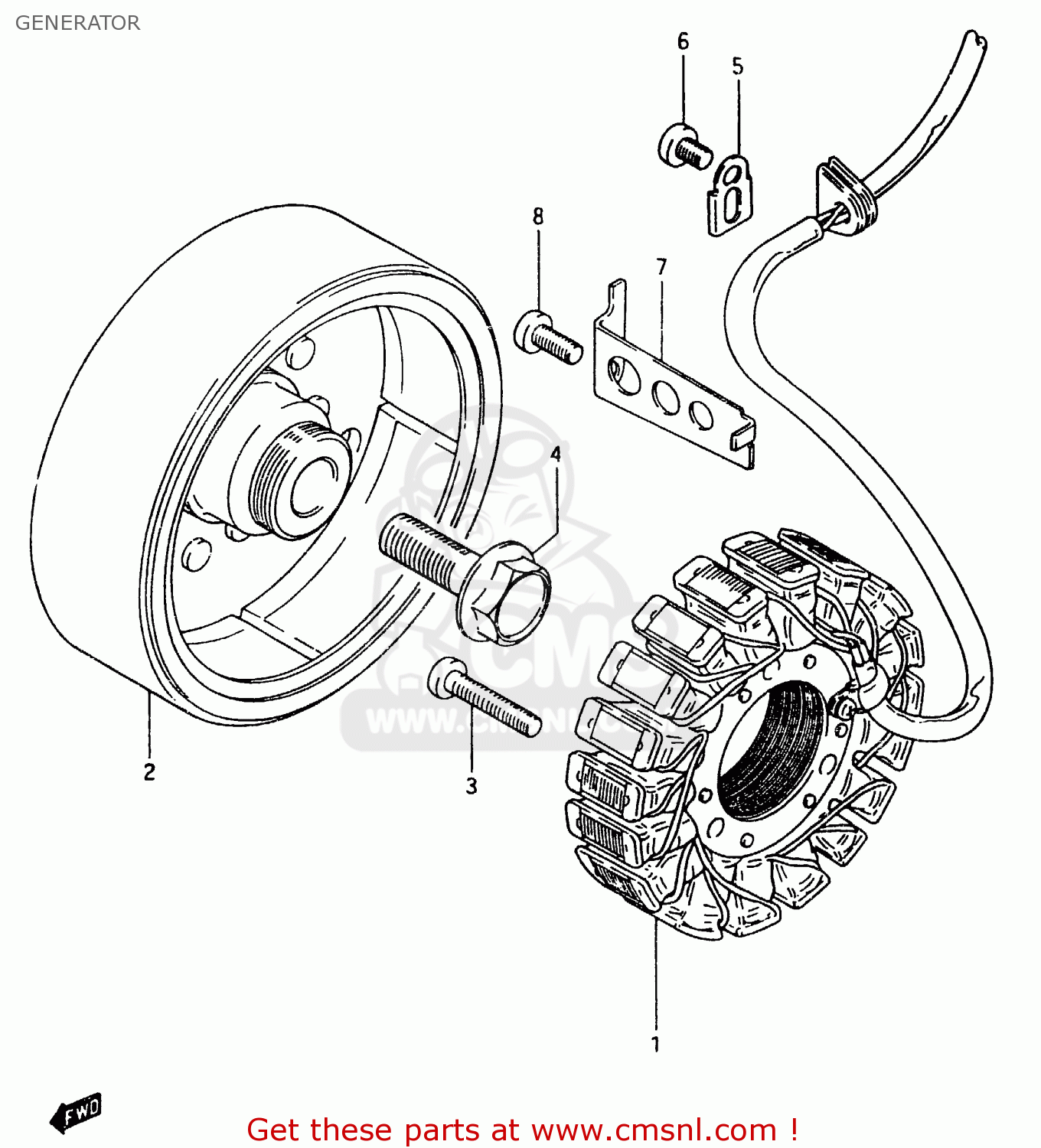

Generator diagram GSX750ES 1984 (E) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3140109310
ref: 1
MODEL D

STATOR ASSEMBLY

€ 435.50

3140108A00
ref: 1
MODEL E

STARTER ASSY

€ 341.00

3140249330
ref: 2
MODEL D

ROTOR ASSY

€ 403.50

3140208A00
ref: 2
MODEL E

ROTOR ASSEMBLY

€ 403.50

0211206308
ref: 3

SCREW 6X30

€ 2.50

0910314001
ref: 4

BOLT(14X43)

€ 7.00

3149745000
ref: 5

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205088
ref: 6

SCREW

€ 2.00

3149845000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 2.00

0211206108
ref: 8

SCREW

€ 1.50
